Summary of Contents for Hisense DH100KP1WG

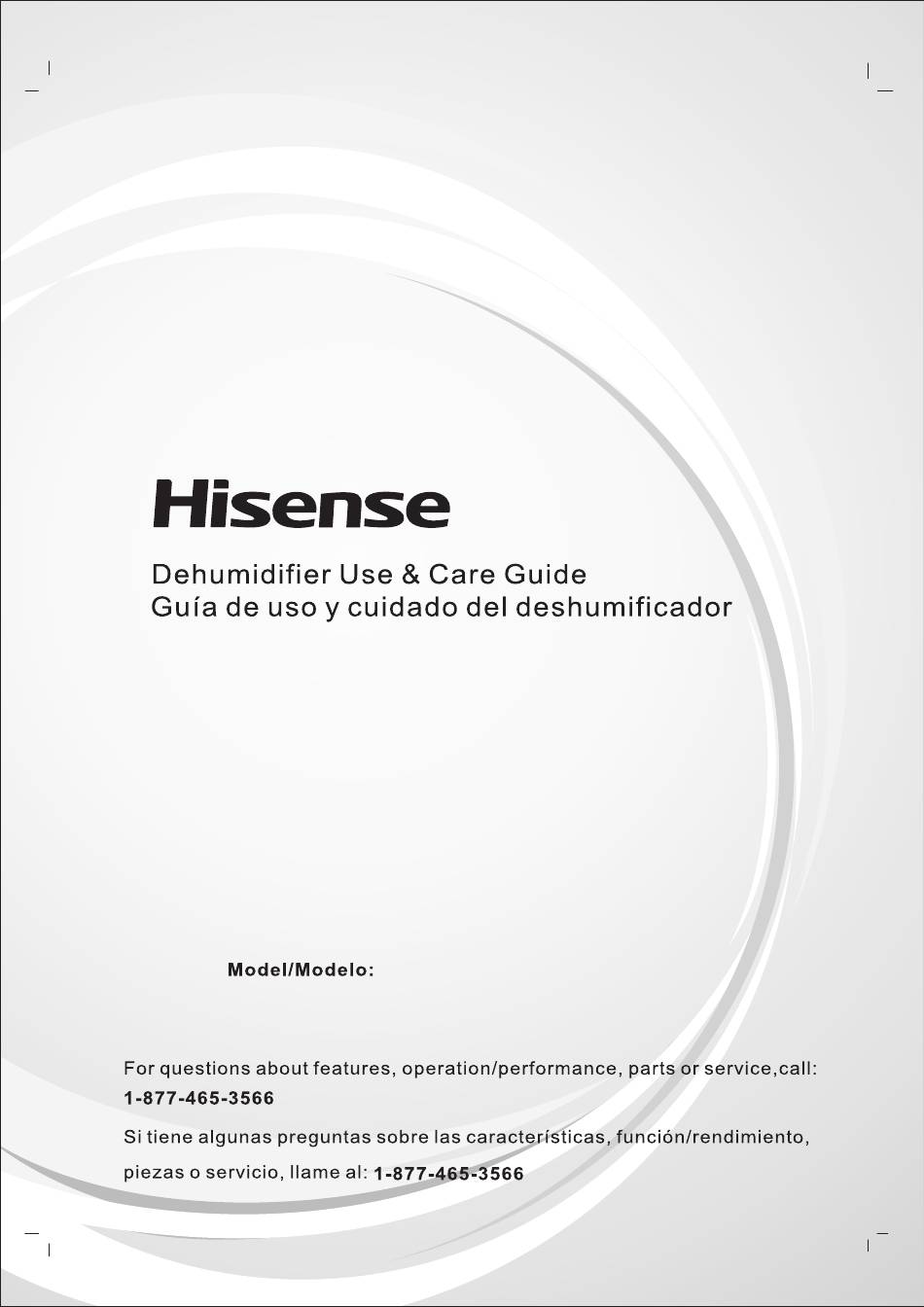

- Page 1 DH100KP1WG DH10019TP1WG...
- Page 3 TABLE OF CONTENTS PRODUCT OVERVIEW DEHUMIDIFIER SAFETY INSTALLATION REQUIREMENTS Electrical Requirements Location Requirements DEHUMIDIFIER USE Setting the Controls Draining the Dehumidifier Normal Sounds DEHUMIDIFIER CARE Cleaning the Air Filter Cleaning the Dehumidifier TROUBLE SHOOTING Air Intake Grill and Air Filter Control Panel Handle User Manual...
- Page 4 To reduce the risk of explosion, fire, death, electric shock, scalding, or injury to persons when using this appliance, follow basic precautions, including the following: INSTALLATION ■ Plug into a grounded 3 prong outlet. Do not remove ground prong. ■ Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
- Page 5 ■ Do not modify or extend the power cord. ■ If the product makes a strange noise or emits a smell or smoke, pull the power plug out and contact Hisense customer service. ■ Avoid placing the dehumidifier or other heavy objects on top of the power cord.
- Page 6 To reduce the risk of injury to persons, malfunction, or damage to the product or property when using this appliance, follow basic safety precautions, including the following: INSTALLATION ■ Use this appliance only for its intended purpose. This product is not designed for preserving precision instruments, tableware or art works. ■...
- Page 7 Recommended Grounding Method This dehumidifier must be grounded. This dehumidifier is equipped with a power supply cord with a three-prong grounding plug. The cord must be plugged into a mating, grounded three-prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer's responsibility to have a properly grounded three-prong outlet installed by a qualified...
- Page 8 DEHUMIDIFIER USE Setting the Controls and immediately restarted, to protect the Control Panel compressor there is a 3-minute delay until the compressor restarts. Control Type1 ■ When the dehumidifier is operating, the indoor temperature will rise. The dehumidifier does not have a cooling AUTO DRY HIGH /heating function.
- Page 9 Fan Speed Power 1. Press FAN to select fan speed. Press POWER to turn on or turn off the 2. Choose LOW, MED or HIGH. dehumidifier. Quiet ■ LOW-Will reach the desired humidity setting with lower sound level. The dehumidifier will run in lower noise operation. ■...
- Page 10 This feature pumps water horizontally or Timer vertically. Pump water to a drain, out a window or anywhere you think suitable. To set Timer for a 30-minute to 24-hour delay IMPORTANT: before the dehumidifier is turned off (the You must connect the drain hose to the unit dehumidifier must be On): 1.Press TIMER.
- Page 11 4. Fold down the handle and reinstall the bucket. Option 1 Bucket Draining If a floor drain is not available, or you do not plan to run your dehumidifier continuously, you may want to simply empty the bucket. IMPORTANT: If the Empty Bucket light comes on, the 1.
- Page 12 3. Remove bucket. Option 3 PUMP-Drain (for Pump function model only) 4. Attach a garden hose to the drain hose connector on the inside of the dehumidifier. This feature can help to pump water horizontally Securely attach the hose to be sure there is or vertically with a 16 feet (487.68cm) hose no water leak.
- Page 13 2.To disconnect the drain hose, push connector A 2.To disconnect the drain hose, press the release in, and then pull connector B out. button on connector A, and then pull connector B out. Press 1. Push 2. Pull Button 1. Press 2.
- Page 14 4. Clean the water filter with soft brush. Water filter cleaning ■ If the filter is very dirty, wash it in water and a (For inverter model only) neutral detergent. ■ Clean the water filter every 3 months. 1. Unplug the unit before cleaning it. After every 3 months of usage, the water filter need to be cleaned for a smooth water pump running.
- Page 15 Your new dehumidifier is designed to give you many years of dependable service. This section explains how to clean and care for your dehumidifier. To avoid damage to the compressor, never store or ship the appliance upside down or sideways. The air filter is removable for easy cleaning.
- Page 16 Confirm the power is connected, and the bucket is in place. If the unit still doesn’t operate, call Hisense for warranty service. ■ All models have an automatic de-icing function that will shut off the compressor and allow the fan to run.
- Page 17 Version NO.1993580-02...
