3/8in. x 50ft. auto rewind air hose reel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

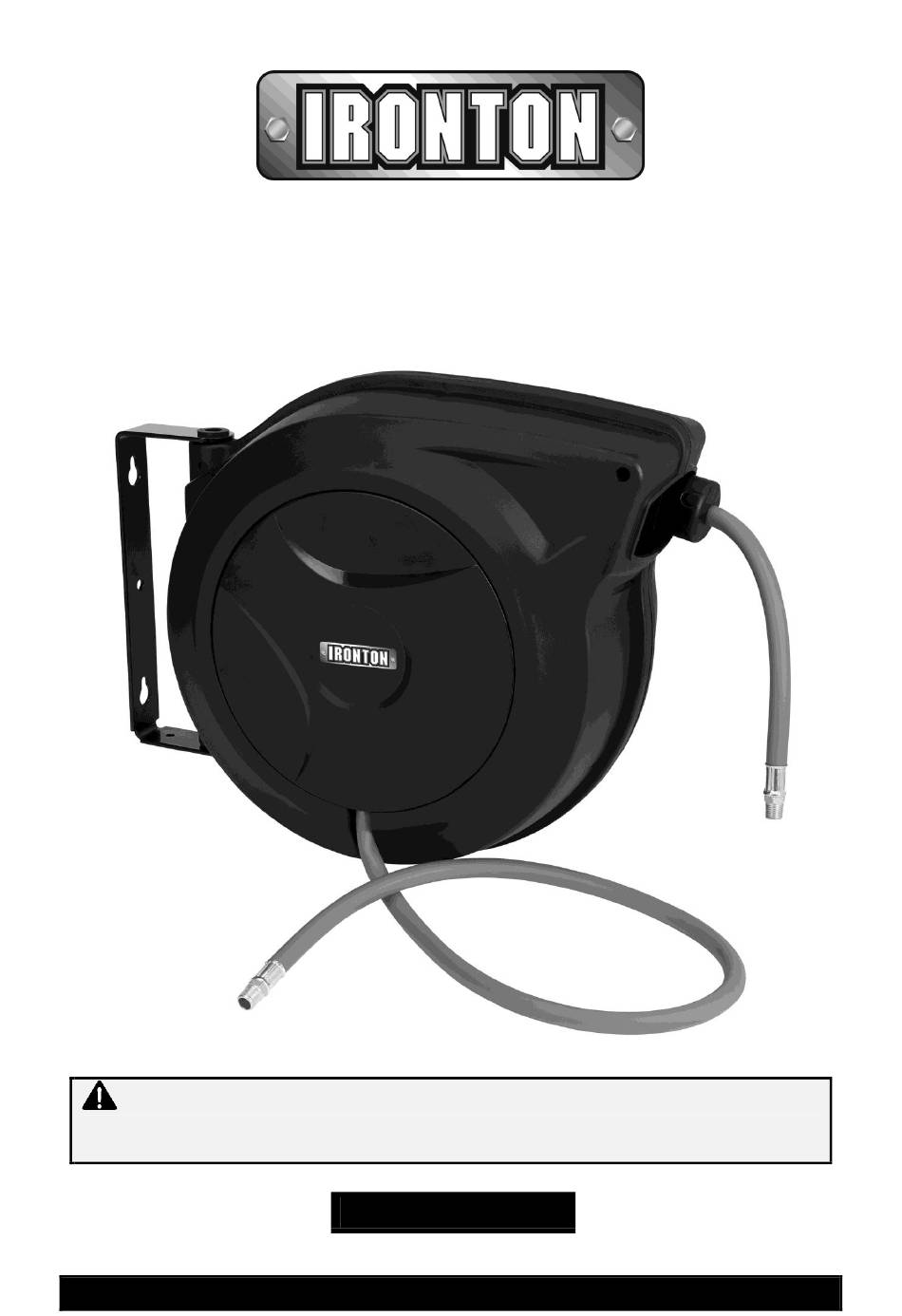

3/8in. x 50ft. Auto Rewind Air Hose Reel
Owner's Manual
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #62302
READ & SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 62302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ironton 62302

Summary of Contents for Ironton 62302

  • Page 1 3/8in. x 50ft. Auto Rewind Air Hose Reel Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #62302 READ & SAVE THESE INSTRUCTIONS...
  • Page 2 ® Thank you very much for choosing an Ironton product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.

  • Page 3: Table Of Contents

    Table of Contents Intended Use ............................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operation Warnings ....................... 6 Mounting Instructions .......................... 7 Before Each Use ............................ 7 Operating Instructions .......................... 8 Maintenance ............................8 Troubleshooting ............................ 9 Parts Diagram ............................

  • Page 4: Intended Use

    Intended Use The Ironton 3/8in. x 50ft. Auto Rewind Air Hose Reel includes the hose with a maximum 300 PSI working pressure, automatic rewind, and easy installation on a wall, floor, or ceiling. The reels feature an adjustable guide arm that allows for a variety of mounting orientations (hardware not included).
  • Page 5 product will be safer and do a better job at the capacity for which it was intended. DO NOT use this equipment for a purpose for which it was not intended.  Industrial or commercial applications must follow OSHA requirements. ⚠WARNING WORK AREA SAFETY ...

  • Page 6: Specific Operation Warnings

    ⚠CAUTION HOSE REEL USE AND CARE  Do not force the hose reel. Products are safer and do a better job when used in the manner for which they are designed. Plan your work, and use the correct product for the job. ...

  • Page 7: Mounting Instructions

     Bleed fluid/gas pressure from reel before servicing it.  Use soap and water when checking for air leaks. Exposure of skin directly to pressurized air or fluids could result in severe bodily injury. Remember, even low pressure is very dangerous and can cause personal injury or death.

  • Page 8: Operating Instructions

    Operating Instructions ⚠WARNING  Wear ANSI Z87.1 compliant safety goggles or safety glasses with side shields when assembling and using the hose reel.  Do not exceed the max working pressure of 300 PSI.  Never attach any tool or accessory to the hose unless it is capable of safely operating at a pressure greater than the supply pressure.

  • Page 9: Troubleshooting

    Troubleshooting Use the table below to troubleshoot problems before contacting service personnel or your local dealer. If the problem continues after troubleshooting, call your local dealer for assistance. Failure Possible Cause Corrective Action Pull the hose from the reel and latch it at the desired The spring tension The spring doesn’t length.

  • Page 10: Parts Diagram

    Parts Diagram Page 10 of 13...

  • Page 11: Parts List

    Parts List Part Number Part Description Quantity Hose Assembly O-ring Ratchet Paw Ratchet Screws Support Cover O-ring Spool Drum Fixed Pin Base Hose Compositor Assembly Screws Screws Label Pre Tightening Cover Right Casing Baffle Synchronous Belt Synchronous Wheel Screws Spring Hose Assembly Guide Bar Reduction Assembly...

  • Page 12: Limited Warranty

    Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser only (''You'' or ''Your'') that the Ironton product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase.
  • Page 13 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China Page 13 of 13...
