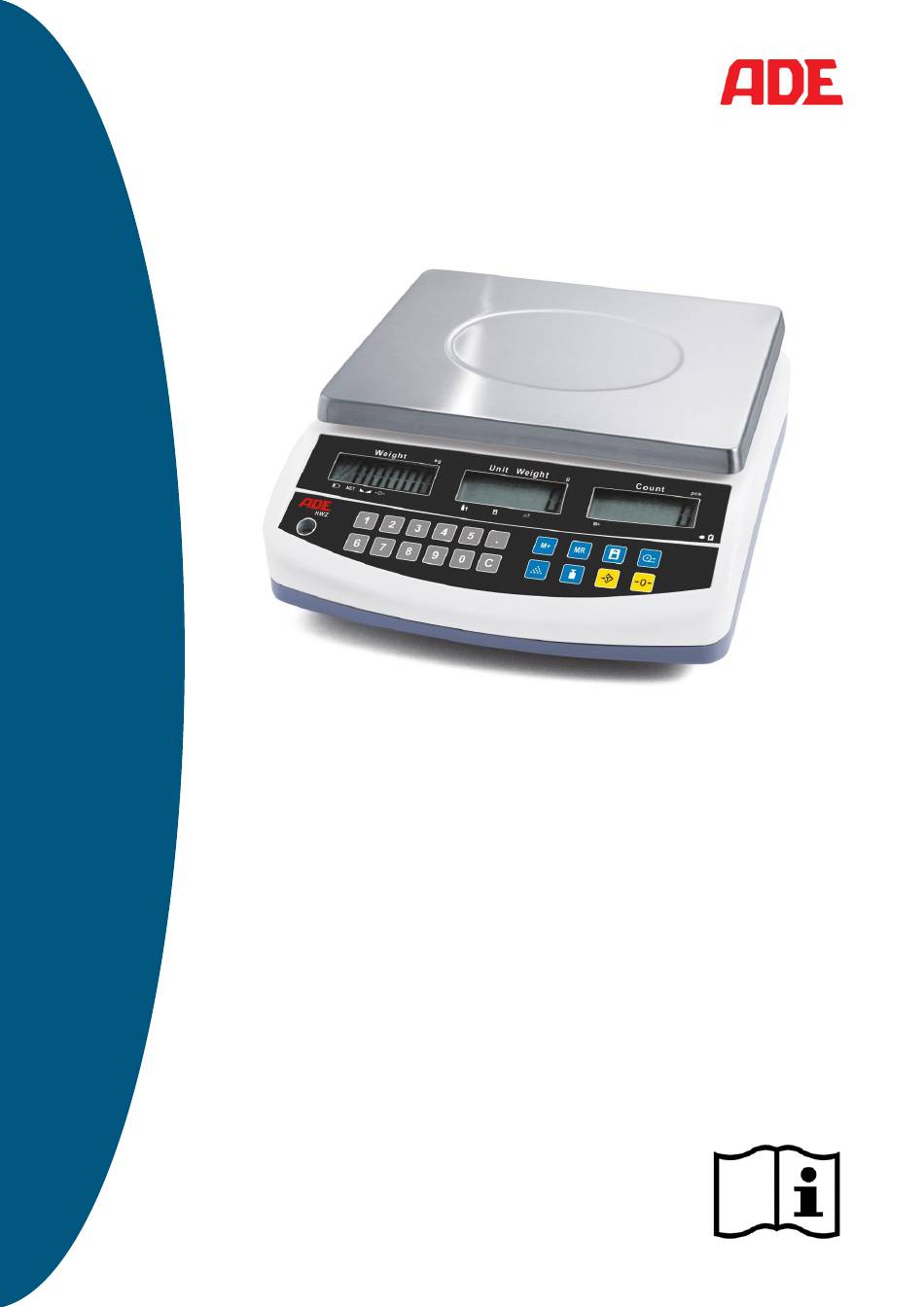

- Page 1 OPERATING MANUAL Electronic counting scale Counting scale of HWZ series HWZ-221128-Rev008-UM-en...
-
Page 2: Table Of Contents
Content Applications ....................... 3 Warnings ........................3 Delivery contents ....................... 4 Set up of the scales ....................4 Overview ........................5 Key functions ......................5 Display description ..................... 6 7.1 Weight window (WEIGHT) ..................6 7.2 Unit weight window (UNIT WEIGHT) ................. 7 7.3 Count window (COUNT) .................... -
Page 3: Applications
− Scales of HWZ series are represented by 3 models with capacities up to 30 kg. − All models are equipped with weighing platforms made of stainless steel and with housings made of ABS plastic. -
Page 4: Delivery Contents
3. Delivery contents • Scale • Rechargeable battery (integrated into the scale) • Weighing platform • Cold device power cord • Protective hood 4. Set up of the scales 1. Carefully remove the delivery contents from the packaging. 2. Place the scale on a stable, horizontal surface. Do not place the scale on a shaky or vibrating table as this will cause distortion of measurement results. -
Page 5: Overview

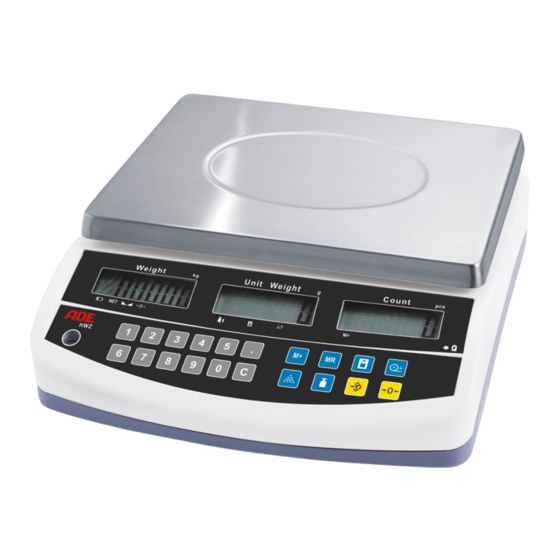

5. Overview Designation Description Weight Weight window Unit Weight Unit weight window 0 ~ 9, for data entry to manually enter a value for “Numeric keypad” tare weight and sample size “Spirit level” For levelling the scale Count Quantity window Recharge Indicates the charging process of the battery “Function keys”... -
Page 6: Display Description
Sets the upper limit for the number of Limit key units. If this upper limit is exceeded, an acoustic signal sounds. Used to print the totaliser when connected to a printer or PC. Print key Requirement: Optional RS232 data inter- face is installed. -
Page 7: Unit Weight Window (Unit Weight)
Unit weight window (UNIT WEIGHT) This window shows the unit weight of a sample. This value is either entered by the user or calculated by the scale. The weighing unit gramme is set for all scales. An arrow indicator appears above the symbol, when … Symbol Bedeutung The number of units is insufficient to accurately determine the number of... -
Page 8: Operation
8. Operation Switching on the scale The on/off switch is located on the right-hand side under the housing. No weight may rest on the weighing platform during the switch-on procedure. The scale runs through a test programme and acknowledges the end of the routine with an acoustic signal. The scale is now ready for operation. -
Page 9: Determine / Enter Reference Weight
− Remove all objects from the weighing platform and press the key to reset the dis- play to zero. Enter the tare weight value (including the decimal point) using the keypad and press to save the tare value. The weight has a negative value, identical to the tare value. -
Page 10: Piece Counting
− Enter the value of the reference weight using the numeric keys and press the key. The "Reference Weight" window (Unit Weight) shows the value as entered. − Place the parts to be counted on the scale. The weight and the number based on reference weight are displayed. -
Page 11: Totaliser
− Pressing the key again deactivates the acoustic alarm for approx. 5 seconds. The “Weight” display still shows CHECK, the “Unit weight” display shows OFF. 8.6.2 Setting the maximum and minimum values for audible alarm The HWZ counting scale has a programming function that emits an acoustic signal if a count or weight specified by the user is either reached (minimum values) or exceeded (maximum values). -
Page 12: Backlight And Parameter Setting
8.7.2 Automatic totaliser − The scale can be set to automatically add total sums when a weight is placed on the scale. It is no longer necessary to press the key to save values. However, the key is still active and can be pressed to save the values immediately. In this case, the values will no longer be saved when the scale returns to zero. - Page 13 “Weight” Description display F2 DI Sets the scale step. Press to view the currently set value. Press the key to scroll through the options (1, 2, 5, 10, 20 or 50). Press select an option F3 CnT _______ Displays the number of A/D conversions. Press to return to the menu.
-
Page 14: Care, Maintenance And Guarantee
10. Care, maintenance and guarantee 10.1 Care and cleaning Before cleaning, disconnect the device from the power supply. Do not use any aggressive cleaning agents while cleaning, but only a damp cloth or conventional disinfectants. Make sure that no liquid enters the device! 10.2 Error messages An error message may appear on the scale display during the switch-on self-test or during operation. -
Page 15: Garantie
10.5 Garantie ADE will repair or replace this product if evidence is provided that it has failed within 1 year from the date of sale (proof of purchase is required) due to lack of workmanship or defective material. All moving parts, such as batteries, cables, etc. are excluded. -
Page 16: Technical Data
11. Technical Data Model: HWZ-6 HWZ-15 HWZ-30 Maximum load: 6 kg 15 kg 30 kg Minimum load: 20 g 50 g 100 g Digit display: 0,1 g 0,2 g 0,5 g Resolution 1:60.000 1:75.000 1:60.000 Tare range -6 kg -15 kg -30 kg Interface RS232 data output (optional - cannot be retrofitted) -
Page 17: Declaration Of Conformity
These scales have been manufactured in accordance with the harmonised European standards. It conforms to the provisions of the EC directives cited below: − EMC Directive 2014/30/EU Hersteller: ADE GmbH & Co. Hammer Steindamm 27 – 29 − Low voltage directive 2014/35/EU D – 22089 Hamburg −... - Page 18 HWZ-221128-Rev008-UM-en...
- Page 19 Dealer: HWZ-221128-Rev008-UM-en...
