Summary of Contents for ADE M70612
- Page 1 Operating Manual Electronic Lifter Scale M70612 ADE (GmbH & Co.) Hammer Steindamm 27-29 22089 Hamburg Germany +49(40)432776-0 +49(40)432776-10 E-mail: info@ade-hamburg.de...
-
Page 2: Table Of Contents
Power supply of the scale Connecting additional equipment Use of the scale Weighing Tare Function Zero setting Cleaning and mainteanance e-approval Safety instructions: Cleaning: Warranty – Liability: CE marking and Declaration of Conformity Declaration of CE Conformity Technical Data 060100-Rev000-M70612... -
Page 3: Components & Features

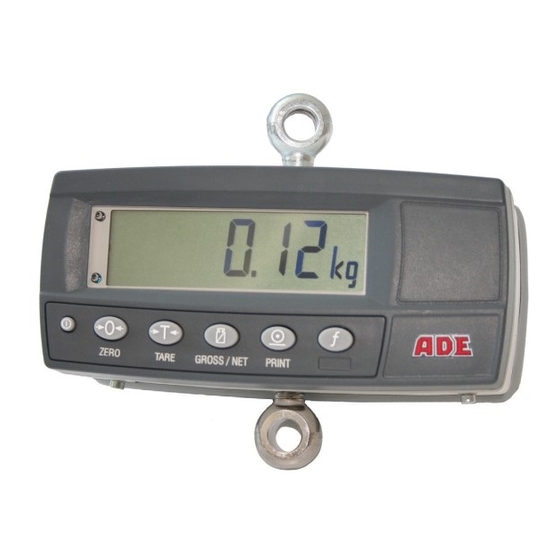

Components & Features Bezeichnung Display keys ……………………… On/OFF key ZERO......Zero setting key TARE ......Tare key GROSS/NET……………to switch between gross and net value (Tara value necessary) PRINT……………………Print key ........‚Lifeweight’ key 060100-Rev000-M70612... -
Page 4: Installation And Use Of Scale
The suspension yoke of the lifter is not attached to the bottom suspension eye of the scale. An essential part to secure utmost safety is the twisting joint of the patient lifter. The ADE lifter scale can be used with all leading quality patient lifter systems once ADE has approved the twisting joints used are granting utmost safety. -
Page 5: Tare Function
Display symbols Scale is under tare (Motion) Scale is in motion (above limit) The limit has been exceeded (below limit) Off limit (Battery) Batteries low – insert fresh ones 060100-Rev000-M70612... -
Page 6: Cleaning And Mainteanance E-Approval
Do not use any aggressive cleaning fluids. Warranty – Liability: ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts –... -
Page 7: Technical Data
• Max. capacity: 300 kg • Graduation: 100 g • Dimensions: 170 x 80 x 140 • Net weight: ca. 1,6 kg Supplier: ADE (GmbH & Co.) Hammer Steindamm 27-29 22089 Hamburg / Germany +49(40)432776-0 +49(40)432776-10 E-mail: info@ade-hamburg.de Dealer: 060100-Rev000-M70612...
