- Page 1 AUSTRALIAN Owned Operated OVER BED CHAIR TABLE RG626 Edition 1 USER MANUAL Please read and keep these instructions redgumbrand.com.au ASK FOR THE BRAND...
- Page 2 A S S I S T E D L I V I N G P R O D U C T S REDGUM Brand owns the copyright to the Over Bed Chair Table user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION PRODUCT OVERVIEW UNPACK and INSPECT SUPPLIED PARTS FIT CASTORS FIT UPRIGHT FIT PLATFORM FIT SIDE PLATFORM ADJUST BASE ADJUST PLATFORM HEIGHT ADJUST PLATFORM ANGLE INSPECTIONS / CLEANING WARRANTY redgumbrand.com.au ASK FOR THE BRAND... - Page 4 INTRODUCTION Thank you for purchasing this REDGUM Brand product. If you have any issues or questions about the Over Bed Chair Table please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 E: orders@for-de.com.au A: 1 Business Way, Malaga, Western Australia 6090 INTENDED USE This product has limitations and should be used in accordance to these guidelines.
-
Page 5: Product Overview

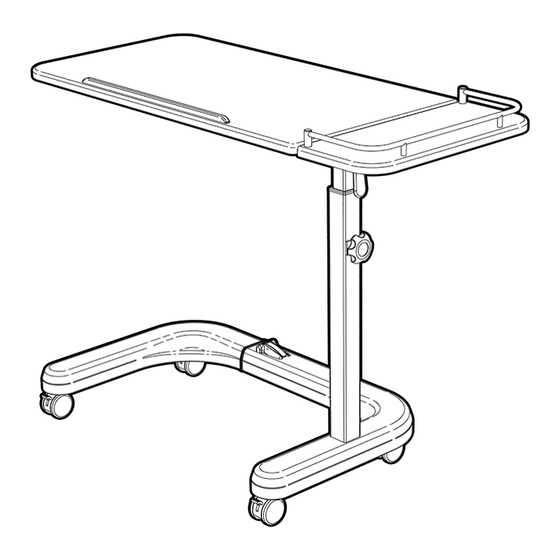

Base Frame: 550 - 780mm (W-internal) x 115mm (H) Castors: Ø50mm plastic twin wheel locking castors Product Weight: 12kg Maximum Weight Loading: 10kg - evenly distributed Please contact REDGUM Brand if you would like any further information on your Over Bed Chair Table. redgumbrand.com.au ASK FOR THE BRAND... - Page 6 UNPACK and INSPECT PARTS Ensure you have been supplied with the following parts: 1 x Platform Side Platform 1 x Upright 1 x Base Braked Castor Castor 1 x Clip Large (not to scale) Small 1 x Spanner Washer Washer (not to scale) (not to scale) (not to scale)
-
Page 7: Fit Castors
FIT CASTORS Castor Braked Please follow these steps to fit the Castor castors to the base: Large washer 1. Position the base with the underside facing up. 2. Place large washer over the hole in the base frame. 3. Hand wind the castors onto the base. (Braked castor fitted to base ends) 4. -
Page 8: Fit Upright
FIT UPRIGHT Please follow these steps to fit the upright to the base: 1. Position the base and upright as shown. Upright 2. Pass the 2 studs on the bottom of the upright through the holes in the base. Stud 3. -
Page 9: Fit Platform
FIT PLATFORM Please follow these steps Platform Frame to fit the platform: Upright Tube 1. Slide the platform frame onto the upright tube. 2. Push in the head of the press button and continue to slide the platform frame onto the upright. 3. -
Page 10: Fit Side Platform
FIT SIDE PLATFORM Please follow these steps to fit the side platform: 1. Slide the tube on the side platform into the open end of the upright tube. Face Plate Mount Plate Side Platform 2. Fit the pins on the face plate into the holes in the mount plate on the upright. -
Page 11: Adjust Base
ADJUST BASE Please follow these steps to adjust the base to the required width: Release Lever 1. Release the brake on the castors so the wheels can swivel. 2. Pull the release lever up. 3. Slide the base out to the required width. 4. -
Page 12: Adjust Platform Height
ADJUST PLATFORM HEIGHT Please follow these steps to adjust the height of the platform: Side Platform 1. Hold the side table with one hand and undo the hand wheel with the Hand Wheel other hand. Note: The platform will rise automatically as it is spring loaded. -
Page 13: Adjust Platform Angle
ADJUST PLATFORM ANGLE Please follow these steps to adjust the platform angle: Release Lever 1. Press the release lever in with one hand and rotate the platform with the other hand. 2. Once the platform is at the required angle let go of the release lever and rotate the platform until it ‘CLICKS’... - Page 14 Do not use any abrasive cleaners or abrasive cleaning pads as they could potentially damage the Over Bed Chair Table. If you have any questions about the cleaning of the Over Bed Chair Table please contact your supplier or REDGUM brand direct. redgumbrand.com.au ASK FOR THE BRAND redgumbrand.com.au...
-
Page 15: Warranty
WARRANTY The REDGUM Brand Over Bed Chair Table (RG626) is covered by a 12 Month Warranty from the date of purchase. If the product has any manufacturing faults during this period contact the place of purchase for assessment. Failures as a result of ACCIDENTAL MISUSE, MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY. - Page 16 DISTRIBUTOR: PROUDLY AUSTRALIAN Owned / Operated redgumbrand.com.au ASK FOR THE BRAND redgumbrand.com.au...
