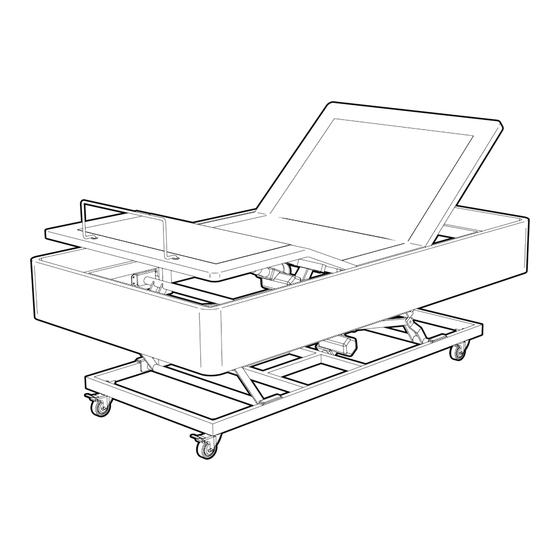

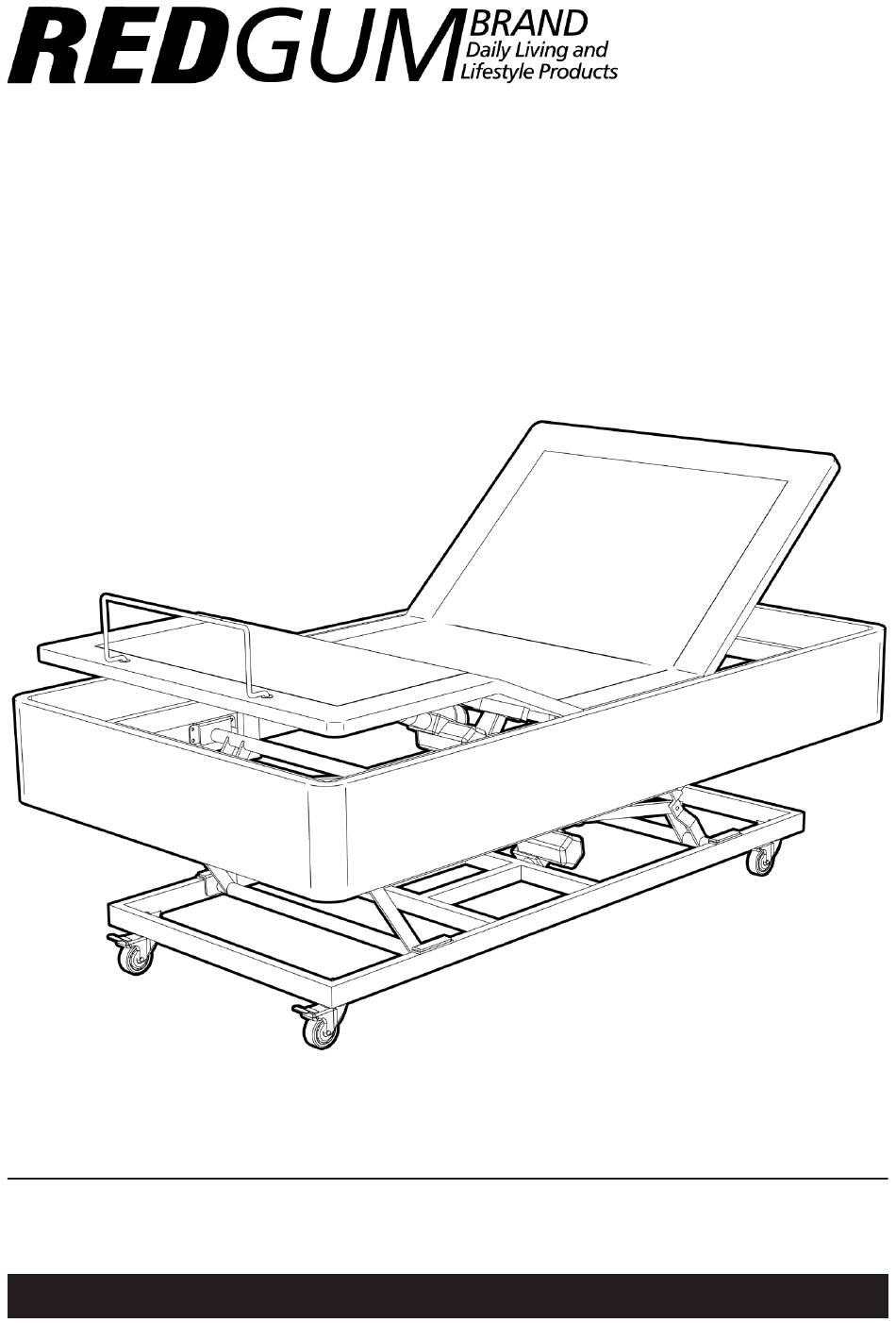

- Page 1 COMFORT LUX MEDICAL HIGH LOW KING SINGLE BED RG66BHLH Edition 2 USER MANUAL Please read and keep these instructions redgumbrand.com.au ASK FOR THE BRAND...
- Page 2 REDGUM Brand owns the copyright to the Comfort Lux Medical High Low King Single Bed user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand.
- Page 3 CONTENTS INTRODUCTION - INTENDED USE PRODUCT OVERVIEW - FEATURES / SPECIFICATIONS ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - FIT CASTORS ASSEMBLY - FIT MATTRESS RETAINER ASSEMBLY - PLUG IN POWER CABLE ASSEMBLY - FIT BATTERIES (When required) OPERATION - HANDSET CONTROLS USAGE GUIDELINES - SAFETY PRECAUTIONS PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY...
-
Page 4: Intended Use
Thank you for purchasing this REDGUM Brand product. If you have any issues or questions about the Comfort Lux Medical High Low King Single Bed please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 E: orders@for-de.com.au... -
Page 5: Product Overview
PRODUCT OVERVIEW FEATURES - 4 section mattress platform - Mattress retainer - Adjustable backrest - Adjustable knee break - Hard wired handset with lock out function - CPR function - Quality electrics - Battery backup - 4 total locking castors IMPORTANT NOTE: Bed to be used in conjuction with the following mattresses (not supplied with bed): 200mm COMFORT LUX King Single Bed Mattress (RG66M200) - Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: 1 x BED 1 x TRANSFORMER (not shown to scale) 1 x MATTRESS RETAINER 1 x POWER CABLE (not shown to scale) 4 x CASTOR (not shown to scale) REQUIRED BUT NOT...
- Page 7 ASSEMBLY - FIT CASTORS Please follow these steps to fit the castors to the bed as required: IMPORTANT NOTE: We recommend that 2 people work together when manoeuvering the bed and that one person holds the bed while the other attaches the castors. 1.
- Page 8 ASSEMBLY - FIT MATTRESS RETAINER Please follow these steps to fit the mattress retainer to the bed as required: 1. Orientate the mattress retainer as shown. Sockets 2. Align ends of retainer with sockets in calf support platform. 3. Push both ends of mattress retainer into sockets. Note: Check to ensure mattress retainer has been fully inserted prior to...
- Page 9 ASSEMBLY - PLUG IN POWER CABLE Please follow these steps to plug in the bed cables and supply mains power to the bed as required: 1. Locate the power cable that is connected to the underside of the bed 2. Align pins in cable with slots on cable that is connected to the transformer.
- Page 10 ASSEMBLY - FIT BATTERIES (When required) Please follow these steps to fit the batteries into the transformer as required: IMPORTANT NOTE: Only install batteries into transformer if the mains power is not working and an essential bed function is required. Remove the batteries from transformer once mains power is in use as they...
-
Page 11: Operation
OPERATION - HANDSET CONTROLS Depress the relevant button to perform the required bed operation: Press and hold button to Press and hold button to LOWER BACKREST RAISE BACKREST Press and hold button to Press and hold button to RAISE KNEE BREAK / LOWER KNEE BREAK / CALF SUPPORT CALF SUPPORT... - Page 12 King Single Bed that are manufactured by another company. To do so will void your warranty and may seriously compromise your safety. If you are unsure about any of these precautions please contact your local distributor or REDGUM Brand direct for further information. redgumbrand.com.au ASK FOR THE BRAND...
-
Page 13: Product Care
PRODUCT CARE - INSPECTIONS / CLEANING INSPECTIONS We suggest that you visually check the Comfort Lux Medical High Low King Single Bed periodically for signs of damage or wear prior to use. Please check all aspects of the bed paying particular attention to the following areas: Framework –... -
Page 14: Warranty
WARRANTY REDGUM Brand Comfort Lux Medical High Low King Single Bed is covered by the following warranty from the date of purchase: 10 years: Framework 3 years: Electric Components 5 years: Mattress (Against faulty workmanship and/or faulty materials) During the guarantee period, if the company is satisfied there is a genuine fault, we will repair or replace the product at our earliest convenience. - Page 15 Head Board RG66HB Please refer to relevant product sheet for further information on Comfort Lux options. If you have any questions please contact your local distributor or REDGUM Brand direct: T: +61 8 9248 4180 E: orders@for-de.com.au A: 1 Business Way, Malaga, Western Australia 6090 W: redgumbrand.com.au...
- Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au ASK FOR THE BRAND redgumbrand.com.au...
