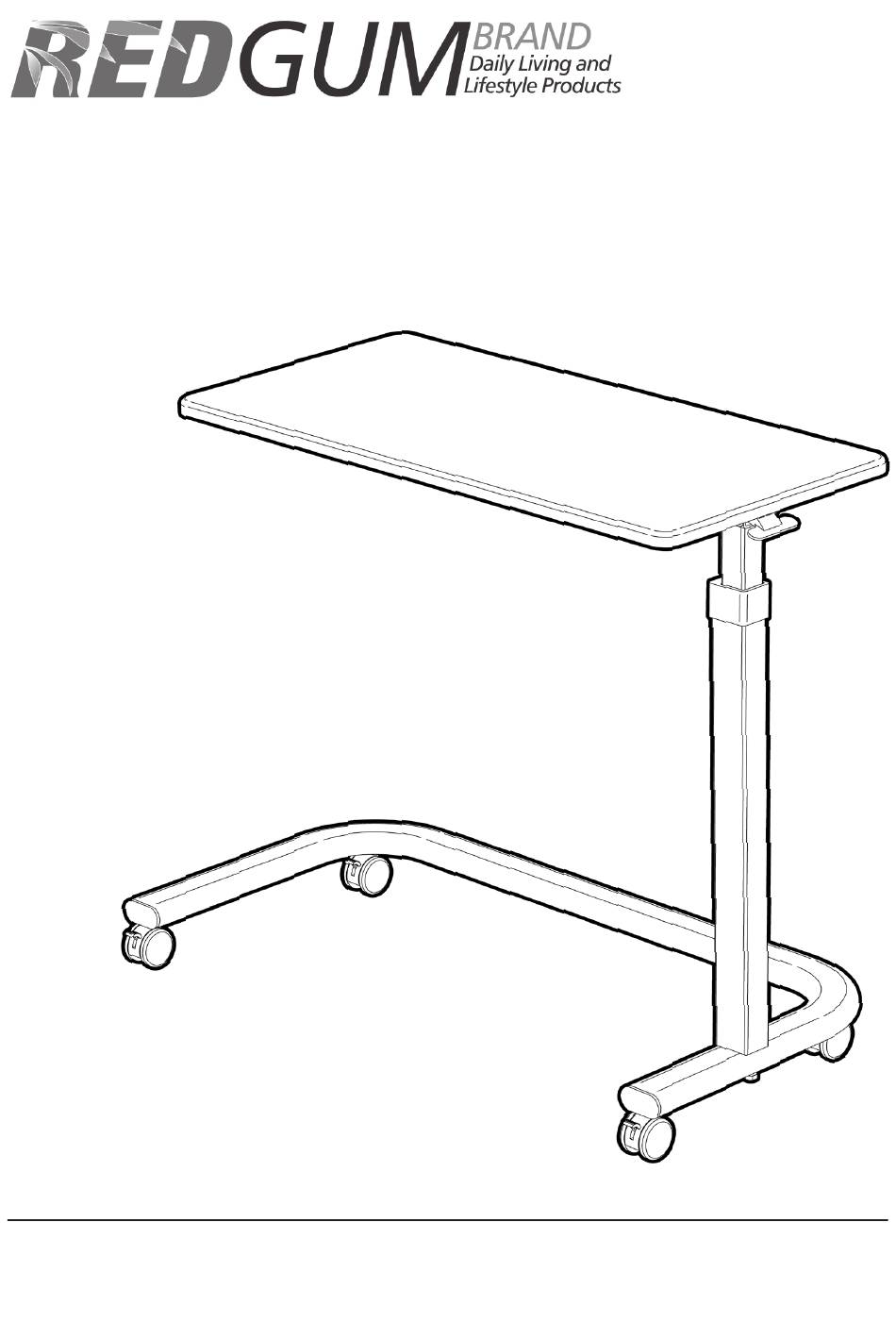

- Page 1 OVER BED / CHAIR TABLE RG624 Edition 1 USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 Over Bed / Chair Table user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
- Page 3 CONTENTS INTRODUCTION - INTENDED USE PRODUCT OVERVIEW - FEATURES / SPECIFICATIONS ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - CASTOR INSTALLATION ASSEMBLY - UPRIGHT INSTALLATION ASSEMBLY - PLATFORM INSTALLATION ASSEMBLY - LEVER INSTALLATION OPERATION - PLATFORM HEIGHT ADJUSTMENT OPERATION - LOCKING CASTORS USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY...
-
Page 4: Intended Use
INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the Over Bed / Chair Table please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au... -
Page 5: Product Overview
Base Frame Height: 90mm Castors: Ø50mm plastic twin wheel locking castors Product Weight: 11kg Maximum Weight Loading: 12kg - evenly distributed Please contact REDGUM Brand if you would like any further information on your Over Bed / Chair Table. redgumbrand.com.au... - Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: 1 x PLATFORM 1 x UPRIGHT 1 x BASE 1 x LEVER (Not to scale) 1 x BOLT 1 (Not to scale) 2 x BOLT 2 (Not to scale) 2 x BOLT 3 1 x SCREW...
- Page 7 ASSEMBLY - CASTOR INSTALLATION Please follow these steps to install the castors onto the base: 1. Lie the base down with the 4 holes on underside facing up. 2. Hand wind in castors (Ensure castors with brakes are fitted to end of base frame). 3.
- Page 8 ASSEMBLY - UPRIGHT INSTALLATION Please follow these steps to install the upright onto the base: 1. Position base on side as shown. 2. Line up holes in underside of upright with holes in base. 3. Hand wind in both bolts (Bolt 2 to be used). 4.
-
Page 9: Operation
OPERATION - PLATFORM INSTALLATION Please follow these steps to install platform to the upright: 1. Align platform with upright as shown. 2. Slide mount on underside of platform into u plate on top of upright. 3. Line up holes in both mount plates. 4. - Page 10 ASSEMBLY - LEVER INSTALLATION Please follow these steps to install the lever onto the upright: 1. Line up the lever with the curved back facing toward platform. 2. Align hole in lever with holes in upright mount. 3. Slide bolt 1 though aligned holes.
- Page 11 OPERATION - PLATFORM HEIGHT ADJUSTMENT IMPORTANT NOTE: Prior to adjusting the platform height the transport locking bolt needs to be removed. Using a phillips head screw driver: Screw 1. Remove the bolt in upright. 2. Replace the bolt with screw. Remove transport bolt and replace with screw Please follow these steps...
- Page 12 OPERATION - LOCKING CASTORS The Over Bed / Chair Table has 4 locking swivel castors: To LOCK the castor: Using your foot - press DOWN on the brake pedal. To UNLOCK the castor: Using your foot - push UP on the brake pedal. Push down on pedal to LOCK castor...
-
Page 13: Usage Guidelines
USAGE GUIDELINES - DO’s + DON’TS Please follow these guidelines to get the optimal benefit from the Over Bed / Chair Table. Failure to follow these guidelines may result in damage to the Over Bed / Chair Table and put the user at risk. The Over Bed / Chair Table is designed to take 12kg Maximum Load (evenly distributed). - Page 14 REDGUM Brand PRODUCT RANGE INSPECTIONS We suggest that you visually check the Over Bed / Chair Table periodically for signs of damage or wear prior to use. Overall check that no components are loose or worn. Please check all aspects paying particular attention to the following areas :...
-
Page 15: Warranty
WARRANTY The REDGUM Brand RG624 - OVER BED / CHAIR TABLE is covered by a 12 Month Warranty from the date of purchase. If the product has any manufacturing faults during this period contact the place of purchase for assessment. Failures as a result of ACCIDENTAL MISUSE, MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY. - Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
