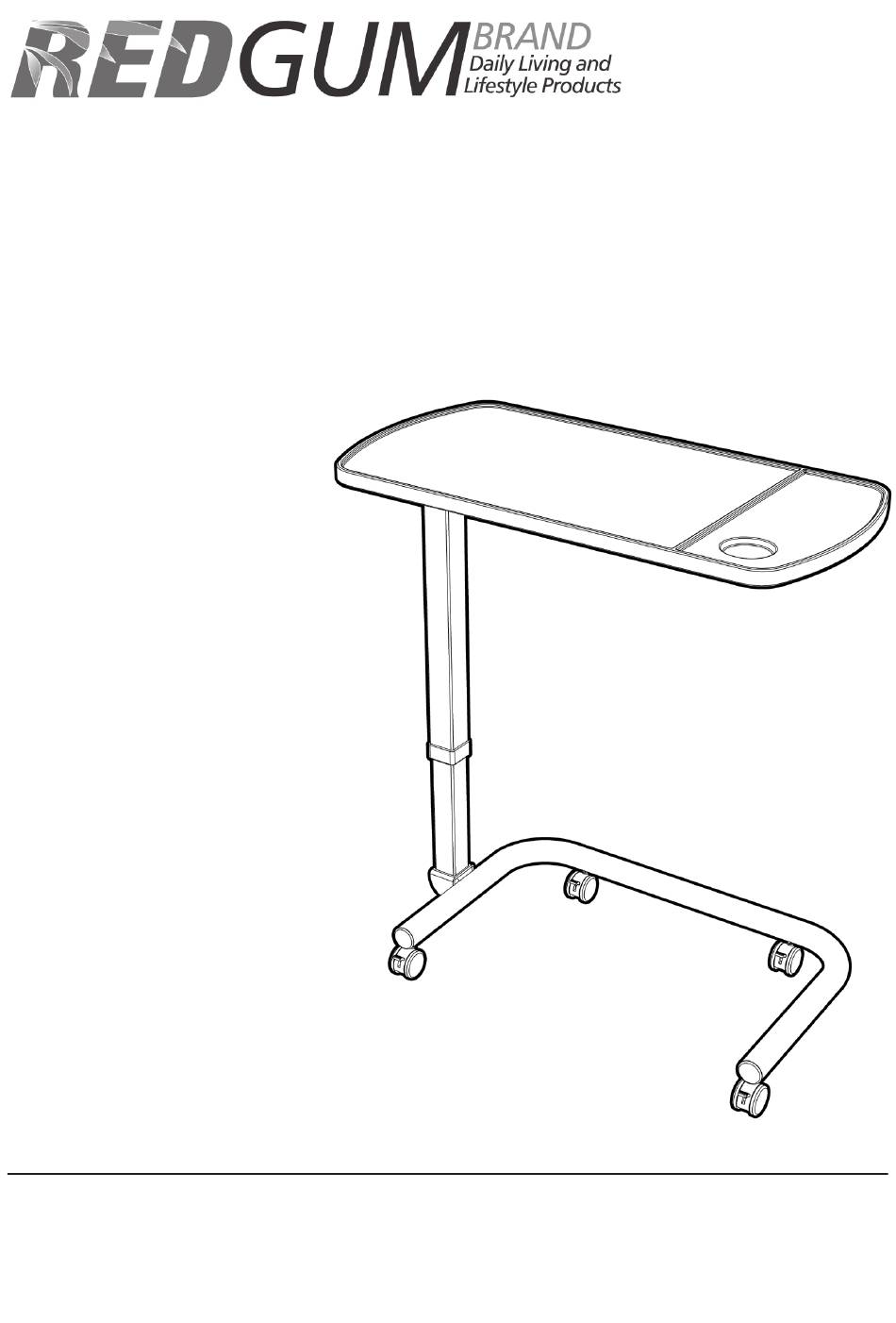

- Page 1 OVER BED / CHAIR TABLE RG622 OCTOBER 2019 USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 Over Bed / Chair Table user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
-
Page 3: Table Of Contents
ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - ADJUSTMENT LEVER INSTALLATION ASSEMBLY - PLATFORM INSTALLATION ASSEMBLY - BASE INSTALLATION OPERATION - HEIGHT ADJUSTMENT OPERATION - LOCKING CASTORS USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY REDGUM BRAND PRODUCT RANGE redgumbrand.com.au... - Page 4 INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the Over Bed / Chair Table please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au...
- Page 5 Base Frame Width (internal): 640mm Castors: Ø50mm plastic twin wheel locking Castors Product Weight: 11kg Maximum Weight Loading: 12kg - evenly distributed Please contact REDGUM Brand if you would like any further information on your Over Bed / Chair Table. redgumbrand.com.au...
- Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: PARTS: 1 x PLATFORM 1 x LEVER 1 x UPRIGHT 1 x BASE FASTENERS (Not shown to scale) LONG BOLT MEDIUM BOLT SHORT BOLT WASHER SPACER TOOLS SUPPLIED...
-
Page 7: Assembly - Adjustment Lever Installation
ASSEMBLY - ADJUSTMENT LEVER INSTALLATION The height adjustment lever requires assembly prior to use. Please follow these steps: 1. Orientate the LEVER so it is the correct way up and right way round (refer to side view image), 2. Use the LONG BOLT to fix lever in place, 3. -
Page 8: Assembly - Platform Installation
ASSEMBLY - PLATFORM INSTALLATION The platform requires assembly prior to use. Please follow these steps: 1. Lay the PLATFORM on a flat surface (mounting holes facing up), 2. Position the UPRIGHT onto the platform (line up the holes), 3. Screw in 6 x SHORT BOLTS with WASHERS - Use Large Allen Key to tighten. UPRIGHT SHORT BOLT WASHER... -
Page 9: Assembly - Base Installation
ASSEMBLY - BASE INSTALLATION The base requires assembly prior to use. Please follow these steps: 1. Lay the ASSEMBLED PLATFORM and UPRIGHT on its side, 2. Orientate the BASE so it is the correct way up and right way round (refer to image below), 2. - Page 10 OPERATION - HEIGHT ADJUSTMENT To adjust the height of the Over Bed / Chair table: To RAISE the platform height: 1. Pull the lever up, 2. Platform will rise automatically, 3. Release the lever to set the height. To LOWER the platform height: 1.
- Page 11 OPERATION - LOCKING CASTORS The Over Bed / Chair Table has 4 locking castors: To LOCK the castor: Using your foot - press DOWN on the brake pedal. To UNLOCK the castor: Using your foot - push UP on the brake pedal. To LOCK To UNLOCK redgumbrand.com.au...
-
Page 12: Usage Guidelines - Do's + Don'ts
USAGE GUIDELINES - DO’s + DON’TS Please follow these guidelines to get the optimal benefit from your Over Bed / Chair Table. Failure to follow these guidelines may result in damage to the Over Bed / Chair Table and put the user at risk. The Over Bed / Chair Table is designed to take 12kg Maximum Load (evenly distributed). - Page 13 PRODUCT CARE - INSPECTIONS / CLEANING INSPECTIONS We suggest that you check your Over Bed / Chair Table visually periodically for signs of damage or wear prior to use. Overall check that no components are loose or worn. Withdraw the Over Bed/ Chair Table immediately if you suspect damage or any other fault.
-
Page 14: Warranty
If you have any issues or questions about your Over Bed / Chair Table please contact your supplier or REDGUM Brand direct on: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au... -
Page 15: Redgum Brand Product Range
Electric Beds Portable / Fixed Aluminium Ramps Exercisers Personal Alarms REDGUM Brand stock a large range of Spare Parts for all REDGUM brand products. Please contact REDGUM Brand for further information: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au... - Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
