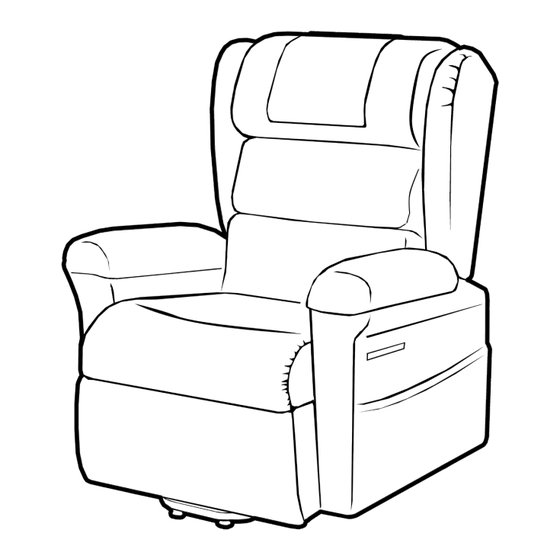

- Page 1 DENVER PROUDLY AUSTRALIAN Owned + Operated DUAL MOTOR LIFT CHAIR LC0101: MOCHA LC0102: GREY LC0103: BLACK Edition 1 USER MANUAL Please read and keep these instructions redgumbrand.com.au ASK FOR THE BRAND...
- Page 2 Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible. Products are subject to change without notice.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION: INTENDED USE PRODUCT OVERVIEW: FEATURES / SPECIFICATIONS SET UP: UNPACK and INSPECT SUPPLIED PARTS SET UP: ATTACH BACKREST TO CHAIR BASE SET UP: ATTACH CASTORS SET UP: HANDSET CONNECTION SET UP: CABLE CONNECTION SET UP: BATTERY BACKUP SET UP: TRANSFORMER CONNECTION USAGE: CHAIR POSITIONING USAGE: HANDSET CONTROLS USAGE: BACKREST ADJUSTMENT... -
Page 4: Introduction: Intended Use
INTRODUCTION Thank you for purchasing this REDGUM Brand product. If you have any issues or questions about the DENVER Dual Motor Lift Chair please contact your distributor or REDGUM Brand direct: T: +61 8 9248 4180 E: sales@for-de.com.au INTENDED USE This product has limitations and should be used in accordance to these guidelines. -
Page 5: Product Overview: Features / Specifications
Required distance from wall: 600mm Maximum User Weight: 160kg Product Weight: Base - 50kg / Backrest - 15kg / Combined - 65kg Please contact your supplier or REDGUM Brand direct if you would like any further information on the DENVER lift chair. redgumbrand.com.au... - Page 6 SET UP UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: Armrest covers fitted 1 x BACKREST (headrest cover supplied loose) 1 x CHAIR BASE 1 x TRANSFORMER (not to scale) 1 x HANDSET (not to scale) 4 x CASTORS 2 x Braked 2 x Swivel...
- Page 7 SET UP ATTACH BACKREST TO CHAIR BASE Please follow these steps to attach the backrest to the chair base: 1. Align the backrest over the chair base with the padded front facing toward front of chair base. 2. Fit the backrest to the chair base by sliding the mounting brackets located on either side of the backrest onto the mounting plates located inside the arm rests at the...
- Page 8 SET UP ATTACH CASTORS The DENVER Lift Chair comes with castors that can be fitted to the chair base if required. The lift chair needs to be put onto its front as shown to gain access to the underside of base frame. Bolt the relevant castor to the mount brackets on the base frame as shown below.
- Page 9 SET UP HANDSET CONNECTION The DENVER Lift Chair comes with a handset that needs to be connected to the lift chair PRIOR to being plugged into mains power. Handset hook Reach into the pocket located on the side of the chair and pull out the cable. Align the pins on the plug of the handset with the corresponding holes in the cable end...
- Page 10 SET UP CABLE CONNECTION The DENVER Lift Chair has two cables located at the rear of the chair behind the cover that require connection prior to the chair being plugged into mains power. 1. Locate the two cables as shown. 2.
- Page 11 SET UP BATTERY BACKUP The DENVER Lift Chair is fitted with battery backup as standard. This allows for the lift / rest / recline functions to still operate if the mains power is disrupted. It is recommended that main power is always used to operate the lift chair and the battery backup is only used to return the chair to a sitting position so the occupant can remove themselves from the lift chair.
- Page 12 SET UP TRANSFORMER CONNECTION The DENVER Lift Chair comes with a transformer that needs to be connected to the lift chair. 1. Locate the cable found at the rear of the lift chair on the underside. 2. Align the pins on the plug from the chair with the corresponding holes in the cable end (Flat surfaces on plugs to be inline).
-
Page 13: Usage: Chair Positioning
USAGE CHAIR POSITIONING Prior to using the DENVER Lift Chair please follow these steps to set up the chair in a safe manner: - Position the chair on a flat and level floor. Vary the 6 adjustable feet until the lift chair is stable and does not rock. -
Page 14: Usage: Handset Controls
USAGE HANDSET CONTROLS The DENVER Lift Chair comes with a backlit handset that controls the movement of the backrest, legrest, headrest, lumbar and overall chair position. Depress the relevant button to achieve the required movement: RAISE Chair LOWER Chair RAISE Legrest LOWER Legrest RAISE Backrest LOWER Backrest... -
Page 15: Usage: Backrest Adjustment
USAGE BACKREST ADJUSTMENT The DENVER Lift Chair comes with 3 removable backrest cushions that can be adjusted in position, height and density to suit the user. Headrest cushion Mid back cushion Lumbar cushion Pull the backrest cushion away from the chair and reposition as required. Align the velcro on the top flap of the backrest cushion with the velcro on the inside of the chair backrest. -
Page 16: Usage Guidelines
- When moving the lift chair hold from the base - not backrest or armrests. If you are unsure about any of these precautions please contact your supplier or REDGUM Brand direct for further information. redgumbrand.com.au ASK FOR THE BRAND... -
Page 17: Inspections / Cleaning
Overall check that no components are loose or worn. Stop using lift chair immediately if you suspect damage or any other fault. If in any doubt, please do not issue or use, but immediately contact your distributor or REDGUM Brand direct for advice and service support. CLEANING... -
Page 18: Warranty
WARRANTY REDGUM Brand DENVER Dual Motor Lift Chair (LC0101 / LC0102/ LC0103) is covered by the following warranties from the date of purchase: - FRAME (including mechanisms): 5 years - ELECTRONICS: 2 years - FABRICS: 2 years If the product has any manufacturing faults during this period contact the place of purchase for assessment. -
Page 19: Lift Chair Accessories
OVER BED CHAIR TABLE range Redgum brand offer a range of over bed chair tables to accompany the DENVER lift chair. For more information on the lift chair accessories please contact your supplier or REDGUM Brand direct. redgumbrand.com.au ASK FOR THE BRAND... - Page 20 DISTRIBUTOR: PROUDLY AUSTRALIAN Owned + Operated redgumbrand.com.au ASK FOR THE BRAND redgumbrand.com.au...
