Summary of Contents for Veridian Healthcare 09-347

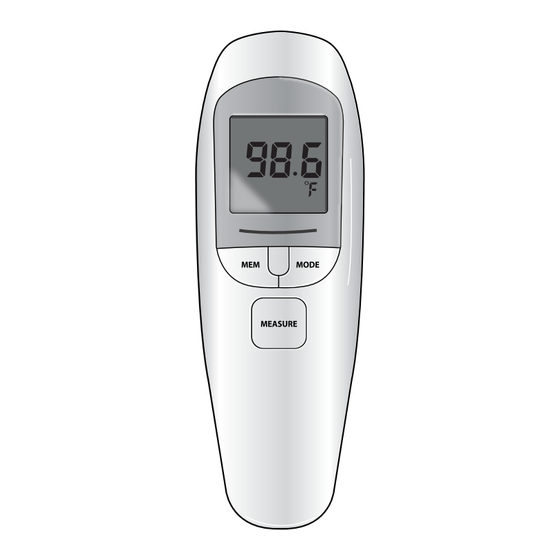

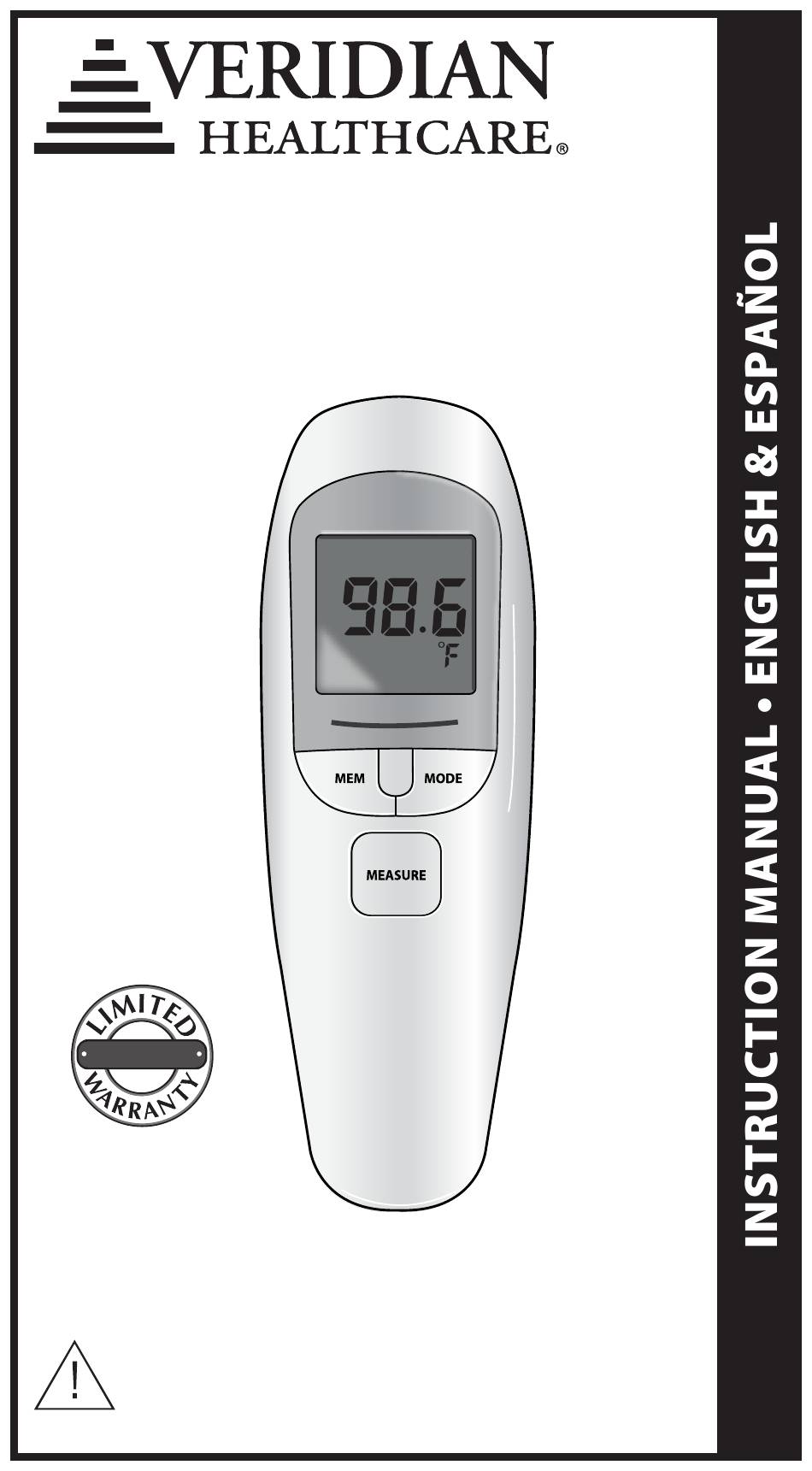

- Page 1 Forehead Infrared Thermometer Model 09-347 3-YEAR Please read this instruction manual completely before operating this unit.
- Page 2 STOP! PLEASE ENSURE YOU HAVE ALL OF THE FOLLOWING COMPONENTS BEFORE USING YOUR TOUCH FREE INFRARED THERMOMETER Thermometer 2 AAA Batteries Instruction Manual Quick Start Guide IF YOU ARE MISSING ANY PARTS, INCLUDING INSERTS OR INSTRUCTION MANUALS, DO NOT RETURN TO PLACE OF PURCHASE.
-
Page 3: Table Of Contents
Instrucionnes en Espanol ..........21-38 Toll-Free Customer Care Help Line: 1-866-326-1313 Monday – Friday 8:30 a.m. – 4:30 p.m. CST Distributed by: Veridian Healthcare 1175 Lakeside Drive Gurnee, IL 60031 www.veridianhealthcare.com Made in China #93-1385 07/17 ©2017 Veridian Healthcare, LLC ENGLISH • 3... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing this Forehead Infrared Thermometer. Please read this instruction manual completely before using your unit to ensure safe use, accurate results and long life of the thermometer. This product is intended for household use; this product is not intended to diagnose or treat any health problem or disease and should not be used as a substitute for the consultation and advice of a physician or other medical professional. -
Page 5: Body Temperature And Fever
BODY TEMPERATURE AND FEVER Body temperature can vary from 97°F(36.1°C) and 99°F(37.2°C) and still be considered normal. The medically accepted ‘normal’ body temperature is 98.6°F(37°C). Body temperature is commonly lower upon waking than at any point during the rest of an individual’s active hours. -
Page 6: Display Features
PRODUCT FEATURES Display LED Fever Alert Signal Memory Button Mode Button Infrared Lens MEASURE / Power Button Battery Cover 6 • ENGLISH... -
Page 7: Product Symbols
DISPLAY SYMBOLS Measurement in progress Degrees Fahrenheit Degrees Celsius Person measurement mode Object measurement mode Night measurement mode Temperature normal; below 100.4° F (38.0° C); person mode only Fever alert; temperature above 100.4° F (38.0° C); person mode only Low battery Memory recall ENGLISH •... -
Page 8: Measurement Modes-Definition & Use
MEASUREMENT MODES- DEFINITION & USE The Forehead Infrared Thermometer offers a selection of settings for use in the day or night and for person or object measurements. To toggle between modes: 1. Press the MEASURE button to turn the thermometer on. The device will default the last mode used. -
Page 9: Measuring Body Temperature
MEASURING BODY TEMPERATURE To measure body temperature using your Forehead Infrared Thermometer, follow the below steps. NOTE: See page 8 of this manual for more information on the Definition and Use of the Measurement Modes. Fig. 1 1. Press and release the MEASURE button to turn the thermometer on. -
Page 10: Measuring Object/Liquid Temperature
MEASURING OBJECT/LIQUID TEM- PERATURE The Touch Free Infrared Thermometer can measure objects and liquids from 32°F to 212°F (0°C - 100°C). To measure the temperature of an object or liquid using your Touch Free Infrared Thermometer, follow these steps: NOTE: See page 8 of this manual for Fig. -
Page 11: Setting Night/Sleeping Mode
SETTING NIGHT/SLEEPING MODE (NO AUDIO BEEPING) Night Mode is a convenient way to conduct measurements without an audible beep indicating the thermometer has powered on or a measurement is complete. To toggle between modes: 1. Press the MEASURE button to turn the thermometer on. -
Page 12: Recalling And Clearing Measurements
RECALLING AND CLEARING READINGS Your Forehead Infrared Thermometer automatically stores the last 30 readings taken. To view the readings stored in memory, follow these steps: 1. Press the MEASURE button to turn the thermometer on. Fig. 1 2. Press the Memory button (marked, “MEM”) to recall the most recent measurement, Fig. -
Page 13: Replacing The Battery
REPLACING BATTERY When the battery power becomes low, the low battery symbol will appear on the display. The thermometer can still be used during this time, but the batteries should be replaced as soon as possible. If the batteries run out completely, “Lo” will be displayed along with the low battery symbol. -
Page 14: Care And Safety Information
CARE AND SAFETY INFORMATION Improper care or use of your thermometer may result in injury, damage to the unit or inaccurate readings, which can lead to a misdiagnosed fever. Following these instructions will ensure the thermometer’s accuracy and long life. •... -
Page 15: Cleaning And Storage
CLEANING AND STORAGE The lens should be cleaned before and after each use, to eliminate dirt and fingerprints and ensure the accuracy of your readings. Proper storage will prevent degradation and damage to the unit. CLEANING: • An alcohol swab, or a soft cotton cloth moistened with 70% isopropyl alcohol, should be used to gently cleanse the lens. -
Page 16: Troubleshooting
TROUBLE SHOOTING Performance may be degraded should one or more of the following occur: • Operation outside stated temperature and humidity range • Storage outside state temperature and humidity range • Mechanical shock • Patient temperature is below ambient temperature The following chart indicates error messages that may appear on your display, why they appear, and how you may solve the problem. -
Page 17: Product Specifications
DEVICE & LABEL SYMBOLS These symbols may appear on your device, instructions or packaging and may vary by make and model. Symbol Meaning Read This Manual—All included manuals should be read prior to first use Warning—Symbol indicates a warning, prohibition or mandatory action that mitigates a risk that is not necessarily obvious to the device operator Typ e BF Applied Parts—Indicates that a part of... - Page 18 FCC STATEMENT IMPORTANT INFORMATION REQUIRED BY THE FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesirable operation.
- Page 19 SPECIFICATIONS Name Forehead Infrared Thermometer Model Number 09-347 Display System Liquid Crystal Display with 0.1° F (0.1° C) resolution Measuring Range Human body: 93.2°F – 109.4°F (34° C – 43° C) Object: 32.0°F – 212.0°F (0° C – 100° C) Accuracy Human body: 96.8°F –...
-
Page 20: Warranty
THREE-YEAR LIMITED WARRANTY The warrantor guarantees that its Forehead Infrared Thermometer will be free from manufacturing defects for a period of three years from the date of purchase. This warranty does not cover batteries or other power sources that may be provided with or used with the Touch Free Infrared Thermometer. This warranty is voided if the Touch Free Infrared Thermometer is misused or abused in any manner.
