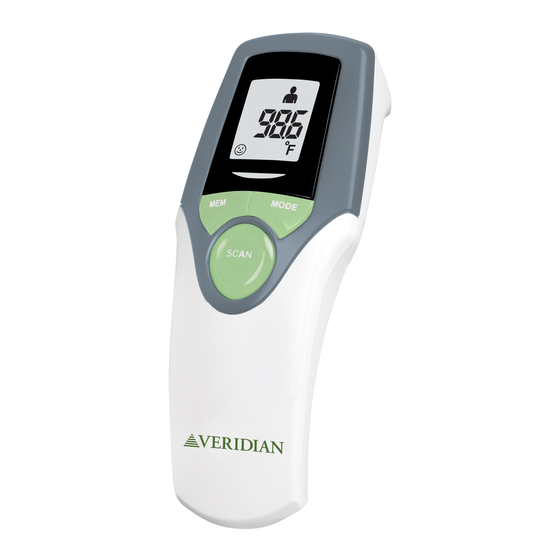

Veridian Healthcare 09-348 Quick Start Manual

Touch-Free Infrared
Thermometer
09-348
Model
These brief instructions allow you to quickly begin using your
Infrared Touch-Free Thermometer for Body Temperature
Measurements. Please refer to the Instruction Manual for
more detailed instructions covering all features of the
thermometer, including Object Temperature measurements.
• The infrared technology used in this thermometer is safe
and is not harmful in any way. However, we recommend
avoiding looking into the lens during use.
The Touch-Free Infrared Thermometer offers a selection of
settings for use in the day or night and for person or object
measurements.
To toggle between modes:
1. Press the MEASURE button to turn the thermometer on.
The device will default the last mode used.
2. Press and release the MODE button to toggle through the
four measurement options.
IF YOU HAVE ANY QUESTIONS OR ARE EXPERIENCING DIFFICULTIES,
PLEASE CALL THE TOLL FREE CUSTOMER SERVICE HELP LINE FOR
FURTHER ASSISTANCE AT 1 866 326 1313.
To measure body temperature using your Non-Contact Digital
Infrared Thermometer, follow these steps:
1. Press the MEASURE button to turn the thermometer on. The
unit will run a self-test and all symbols on the display will
momentarily appear, Fig. 1.
2. The unit will beep twice and the display will show two solid
dashes.
3. Aim the infrared lens at the individual's forehead, holding the
thermometer approximately 0.5" – 1.0" away, Fig 2.
4. Press and hold the MEASURE button. The display will briefly
show the mode, two dashes and a left facing arrow, Fig. 3.
The thermometer will emit a single beep and the temperature
reading will be displayed, Fig. 4.
5. If the temperature measurement is below 100.4° F, a happy
face will be appear next to the reading. If the reading is 100.4°
F or above, a sad face will be displayed and the red light will
illuminate just below the display.
6. After 30-seconds of non-use, the thermometer will
automatically beep and shut off.
Person Mode
Object Mode
Fig. 1
Fig. 2
Fig. 3
Fig. 4
#93-2056 05/15
2015 Veridian Healthcare
