Summary of Contents for Drive Med-Aire Assure 14530

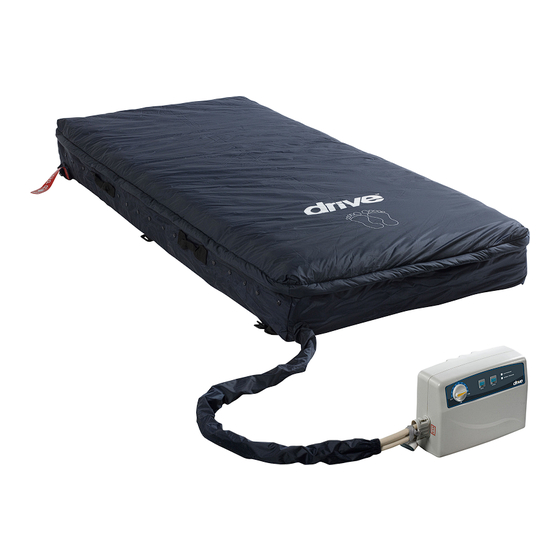

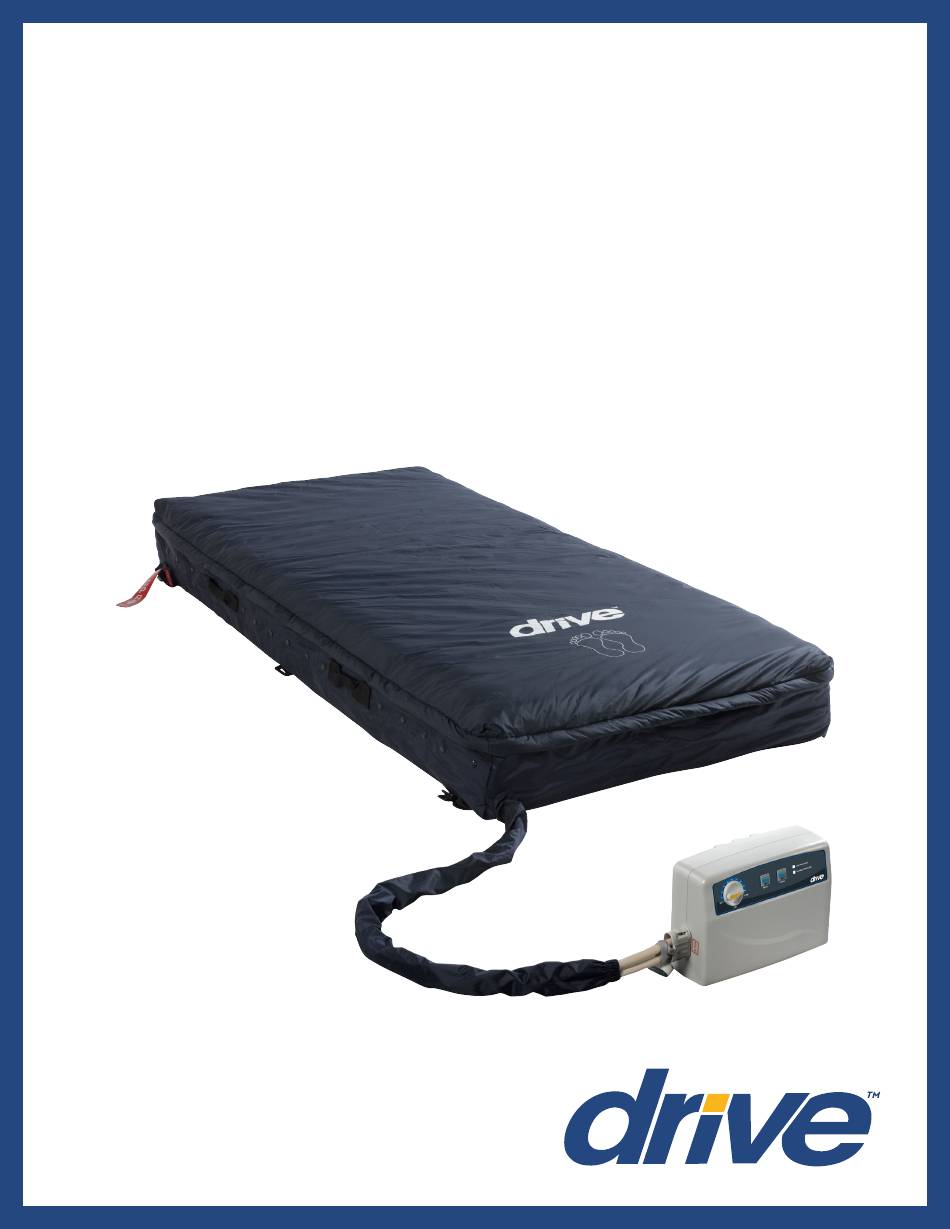

- Page 1 Med-Aire Assure 5” Air + 3” Foam Base Alternating Pressure and Low Air Loss Mattress System Item # 14530 USER MANUAL www.drivemedical.com...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following READ ALL INSTRUCTIONS BEFORE USING DANGER To reduce the risk of electrocution: • Always unplug this product immediately after use. •... -
Page 3: Product Functions
The Med-Aire Assure 14530 control unit and mattress are intended to help reduce the incidence of pressure ulcers while optimizing patient comfort. PUMP The functions of the Med-Aire Assure 14530 control unit are described below. Please refer to the figures of the 14530 control unit. Power Switch (1) •... -
Page 4: Installation Instructions
Switch the power switch on the side of the control unit on. The mattress replacement system may take up to 40 minutes for full inflation. For rapid inflation an external pump may be used such as Drive’s electric quick fill pump, item #: 14427QF. Proceed to the Operating Instructions section on page 5. - Page 5 OPERATING INSTRUCTIONS 1. Place control unit on horizontal surface or hang it by means of the hook. 2. Open mattress on the bed. Secure it with end flaps or straps. Air tubes must be at foot end of bed. 3. Connect air feed tubes to air outlet on the mattress and control unit, ensuring that the tubes are not kinked or twisted.
- Page 6 ENVIRONMENT REQUIREMENTS & CLEANING GUIDELINES Operation Temperature 50℉~95℉ (10℃~35℃) Storage Temperature 5℉~122℉ (-15℃~50℃) Operation Humidity 20%~80% Non-condensing Storage Humidity 10%~90% Non-condensing CONTROL UNIT & MATTRESS MAINTENANCE In this section, we describe the procedures to clean and decontaminate the control unit and mattress. It is important to follow these procedures before using the system again.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS CONTROL UNIT MATTRESS Item: 14530P Item: 14530M Power Supply: 120V/ 60 Hz, 1A Size: 80” (L) x 35” (W) x 8” (H) Air output: 8 liter/min. Top Cover: Quilted Cover with zipper Pressure range: 30mmHg- 60mmHg(±10) Air Cells: Nylon/ PVC Cycle time: 10 min. -
Page 8: Limited 1 Year Warranty
If you have a question about your Drive device or this warranty, please contact an authorized Drive dealer. © 2018 Medical Depot, Inc. All rights reserved. - Page 9 99 Seaview Boulevard Port Washington, NY 11050 Phone: 516-998-4600 Fax: 516-998-4601 www.drivemedical.com REV6.3.22.21...
