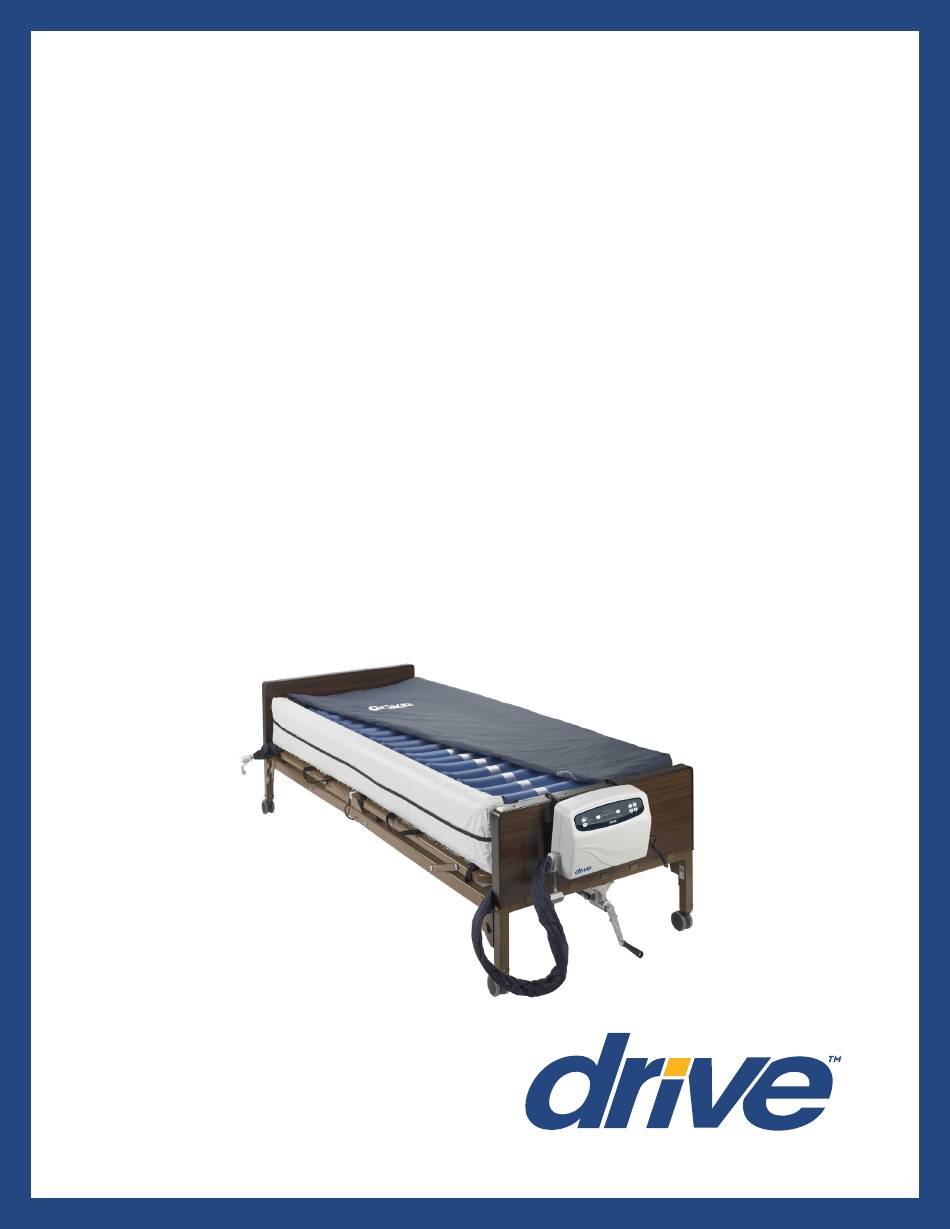

Med Aire Plus 8" Alternating Pressure
and Low Air Loss Mattress
Replacement System
OPERATOR'S MANUAL
ITEM #14029 (control unit 14029XP) #14029-84
Med Aire Plus 8" Alternating Pressure
and Low Air Loss Mattress Replacement
System with Defined Perimeter
OPERATOR'S MANUAL
ITEM #14029DP (control unit 14029XP) #14029-84
www.drivemedical.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Med Aire Plus 8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Drive Med Aire Plus 8

  • Page 1 Med Aire Plus 8" Alternating Pressure and Low Air Loss Mattress Replacement System OPERATOR’S MANUAL ITEM #14029 (control unit 14029XP) #14029-84 Med Aire Plus 8" Alternating Pressure and Low Air Loss Mattress Replacement System with Defined Perimeter OPERATOR’S MANUAL ITEM #14029DP (control unit 14029XP) #14029-84...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ................... 2 STATEMENTS & SYMBOLS ................... 3 Note, Caution, Warning & Danger statements ..........3 Symbols ......................3 INTRODUCTION ..................... 4 General ......................4 Intended Use ....................4 Contraindication ..................... 4 PACKAGE CONTENT ....................5 Control unit ......................
  • Page 3: Statements & Symbols

    STATEMENTS & SYMBOLS NOTE, CAUTION, WARNING & DANGER STATEMENTS A) NOTE!!: Tips or information users should be aware of. B) CAUTION: Correct operating or maintenance procedures to be carefully followed to prevent damage to or destruction of the equipment or other properties. C) WARNING/DANGER: Attention has to be paid to a potential danger that requires correct procedures or practices in order to prevent personal injury.
  • Page 4: Introduction

    This manual should be used for the initial set up of the system and for reference purposes. GENERAL Drive Support Surfaces are high quality and affordable air replacement mattress systems. Specifically designed to redistribute pressure, these systems offer a solution for the prevention and treatment of pressure ulcers and offers an optimal solution for pressure redistribution and microclimate control.
  • Page 5: Package Content

    PACKAGE CONTENT Check your package contents. If any of the following items should be missing or damaged, please contact your local dealer or service center for immediate replacement. Control unit Please be sure you have received the identical control unit to the one purchased.
  • Page 6: Product Functions

    PRODUCT FUNCTIONS Control unit Below are the functions of the 14029XP Control unit to be used with your Pressure Redistribution Mattress. 1. Power ON/OFF Switch 2. MUTE Button 3. PANEL LOCK Button 4. AUTOFIRM Button 5. SEAT Button 6. STATIC/ALTERNATING Button 7.
  • Page 7 AUTOFIRM Button (4) Press the AUTOFIRM button to set AUTOFIRM mode to quickly inflate the air mattress to the maximum pressure which facilitates nursing and caring. The AUTOFIRM indicator lights up (amber) when the system is in AUTOFIRM mode. The system will automatically return to the previous mode 30 minutes after the AUTOFIRM mode is in operation.
  • Page 8: Installation

    INSTALLATION Place the mattress flat on the bed frame. The inflation tube should be towards the foot end so that it can be connected to the inflation nozzles on the control unit. See figure below for reference. CPR Strap at Head End Control unit at Foot End Step 2 Cover the mattress with a cotton sheet.
  • Page 9: Grounding Instructions

    GROUNDING INSTRUCTIONS This product should be grounded. In the event of a short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord that contains a grounding wire and with a grounding plug. DANGER - Improper use of the grounding plug can result in the risk of electric shock.
  • Page 10: Operation

    Please be sure to review this manual for appropriate use and optimal benefit. Product Use: DO NOT use any other control unit with this mattress system than the one provided by Drive. Control units with pressure capacities over 120mmHg may be dangerous and cause cell puncture.
  • Page 11 OPERATION 14029XP • Turn the power ON A BEEP sound will begin the operation. The indicator of the power switch will light up (green), and the control unit will begin to pump air into the mattress. The LOW PRESSURE indicator (red) will flicker as the inflation of the mattress begins.
  • Page 12: Cpr Function

    OPERATION to inflate the mattress. The control unit will stop when the set pressure level is reached. NOTE!! If the pressure is consistently low, the audible alarm will beep and its indicator will light up to attract attention. If there should be obvious leakage, for example caused by loose connection of tubes, the audible/visible alarm will be activated.
  • Page 13: Cleaning

    CLEANING In this section, the procedures to clean and decontaminate the control unit will be described. It is important to follow these procedures before using the system. It is recommended to clean the cover and mattress system once a week to reduce contaminants. Control unit It is important to follow the cleaning procedures before using the system.
  • Page 14: Mattress

    CLEANING Mattress/ Cover Cover Material: • Polyfiber/ Polyurethane Stretch Wipe down the mattress unit with a damp cloth pre-soaked with warm water containing a mild detergent. Approved intermediate level disinfectants may be used according to the cover material. Please refer to the chart below for recommended disinfectants. The mattress top cover can be completely removed for laundry with water temperature up to 95°F;...
  • Page 15: Maintenance And Storage

    MAINTENANCE & STORAGE General • Check the power cord and plug to see if there any signs of wear or damage. • Check the mattress cover for signs of wear or damage. Make sure the mattress cover and tubes are connected together correctly.
  • Page 16: Troubleshooting

    TROUBLESHOOTING PROBLEMS SOLUTIONS The control unit 1. Check if the plug is inserted firmly into the outlet. doesn’t work 2. Turn on the power switch again. • If the power indicator is ON and the control unit still doesn’t work, contact your local dealer immediately. •...
  • Page 17: Specifications

    SPECIFICATIONS SYSTEM ITEM SPECIFICATIONS Classification Class I; IPX0; AP/APG NO; Type BF Applied Part Mattress Input Rating AC 120V 60Hz; 12W, 1A Fuse Rating 250V, 1A Pressure Range 10 ~ 50 mmHg Cycle Time 14029XP 10, 15, 20, 25 minutes Dimensions (Control unit) 369 x 135 x 250 mm (14½”...
  • Page 18: Warranty

    If you have a question about your Drive device or this warranty, please contact an authorized Drive dealer. © 2016 Medical Depot, Inc. All rights reserved.
  • Page 19 NOTES:...
  • Page 20 99 Seaview Boulevard Port Washington, NY 11050 Phone: 516-998-4600 Fax: 516-998-4601 www.drivemedical.com REV4.03.15.16...
