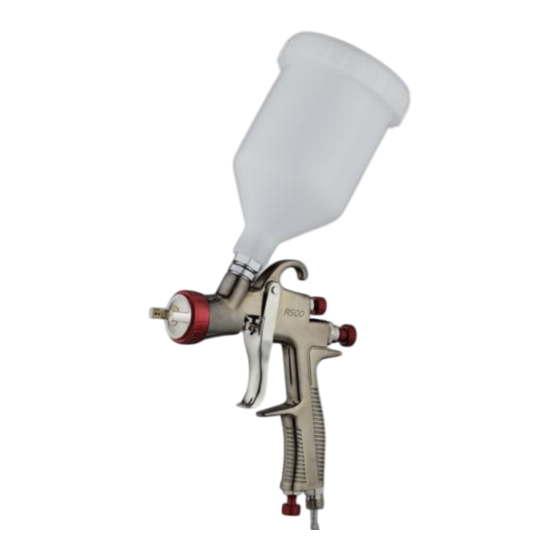

Air Powered LVLP Spray Gun
Model No.:R500

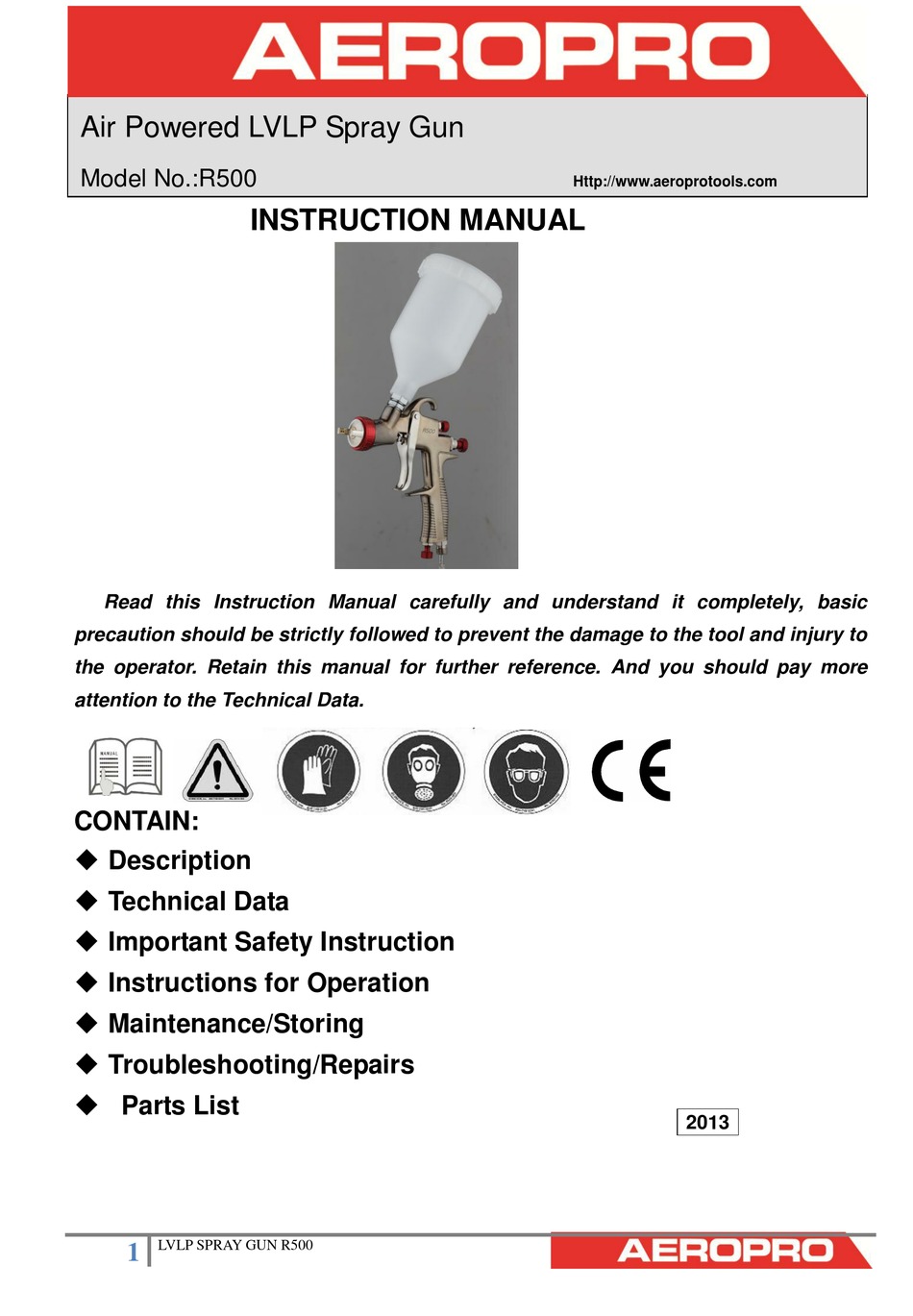

Read this Instruction Manual carefully and understand it completely, basic
precaution should be strictly followed to prevent the damage to the tool and injury to
the operator. Retain this manual for further reference. And you should pay more
attention to the Technical Data.
CONTAIN:
Description
Technical Data
Important Safety Instruction
Instructions for Operation
Maintenance/Storing
Troubleshooting/Repairs
Parts List
LVLP SPRAY GUN R500
1
INSTRUCTION MANUAL
Http://www.aeroprotools.com
2013
Advertisement
Table of Contents
Related Manuals for Aeropro R500
Summary of Contents for Aeropro R500
- Page 1 Retain this manual for further reference. And you should pay more attention to the Technical Data. CONTAIN: Description Technical Data Important Safety Instruction Instructions for Operation Maintenance/Storing Troubleshooting/Repairs Parts List 2013 LVLP SPRAY GUN R500...
-
Page 2: Technical Data
5.Use clean, dry and regulate compressed air rated at 2.0~3.5bar, never exceed maximum permissive operating pressure (see fig 4) 6.Never use homogenate hydrocarbon solvent, which can chemically react with aluminum and zinc parts and chemically compatible with aluminum and zinc pats. LVLP SPRAY GUN R500... -
Page 3: Instructions For Operation
Knob clockwise will decrease the volume of fluid output and counter-clockwise will increase fluid output. AIR Inlet ADJUSTMENT: Turning the Air Adjusting valve clockwise will decrease the air volume. And counter-clockwise will increase the air volume. LVLP SPRAY GUN R500... -
Page 4: Maintenance
MANUFACTURER ORIGINALS. Storing When not using spray gun, turn the fluid adjustment knob counter-clockwise to open which will reduce spring tension on needle fluid tip. Spray gun MUST BE well cleaned and lightly lubricated. LVLP SPRAY GUN R500... -
Page 5: Troubleshooting
Will not spray 1. No pressure at gun 1. Check air lines 2. Fluid control not open enough 2. Open fluid control 3. Fluid too heavy 3. Thin fluid or change to pressure feed system. LVLP SPRAY GUN R500... -
Page 6: Parts List
Switch spring Inner circle O-ring (8.7*1.85) Atomization needle Nozzle foam washer Fluid Adj. Knob Paint Inlet Joint Seal washer Fluid Adj. Needle Filter Direction screw Fluid Needle Spring Container Snap Retainer Fluid Adj. screw Container cover LVLP SPRAY GUN R500... - Page 7 LVLP SPRAY GUN R500...
