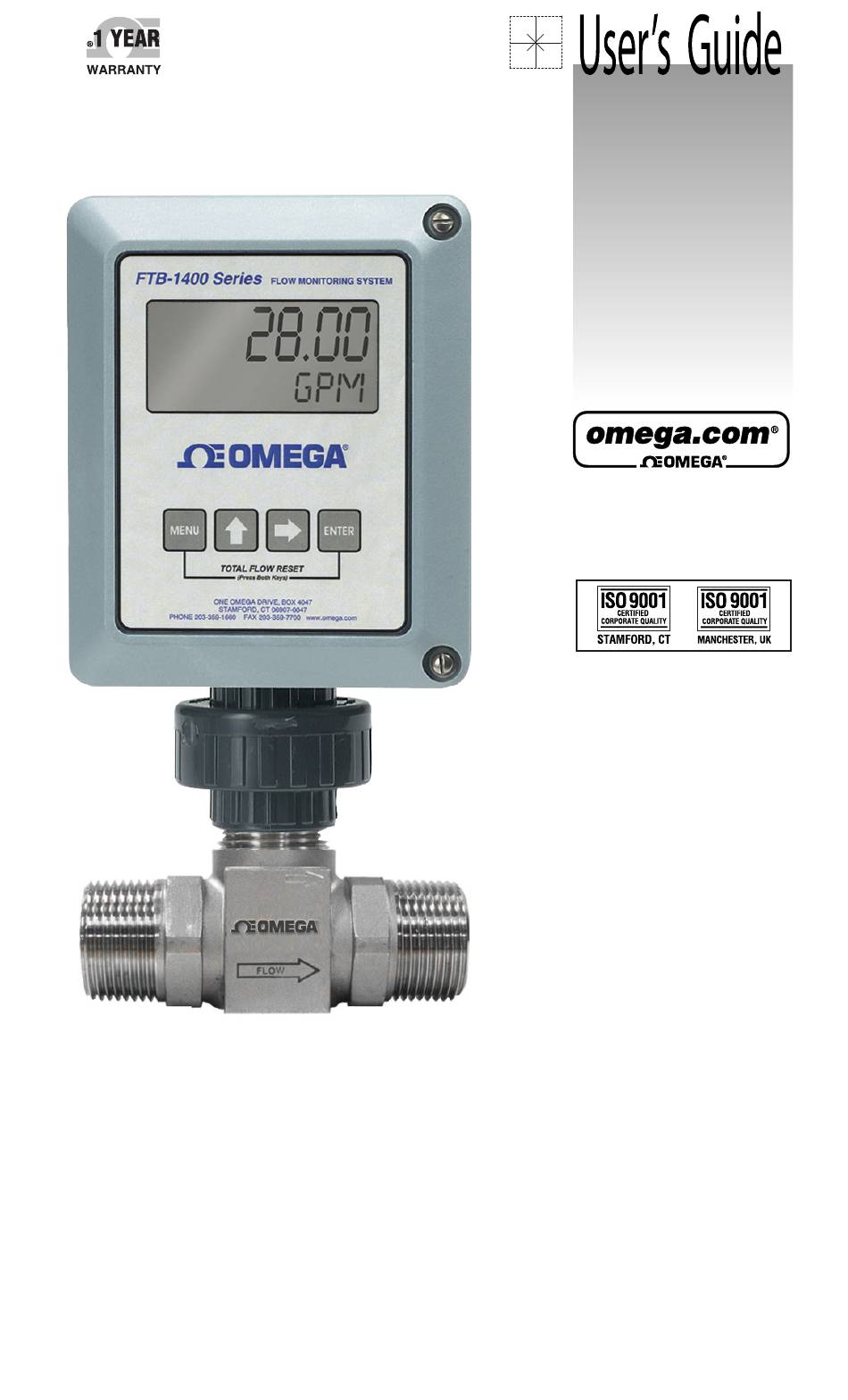

- Page 1 Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info Series FTB–1400-MD-LP FTB–1400-SD-LP FTB–1400-RD-LP Flow Monitor - Simplified Version...
- Page 2 Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 SPECIFICATIONS . -
Page 4: Introduction
The FTB–1400 Flow Monitor is a state-of-the-art, digital signal processing flow monitor, designed to provide the user with exceptional flexibility at a very affordable price . Though designed for use with Omega FTB–1400 flow meters, this display can be used with almost any flow meter producing a low amplitude AC output or contact closure signal(s) . - Page 5 FEATURES • Displays Rate and/or Total • Large 0 .75 Inch, 8 Digit Display for Easy Viewing • Simple, Front Panel Programming • Various Mounting Styles Available • NEMA 4X Suitable for Outdoor Mounting • Intrinsically Safe • Microprocessor Based, Low Power Components •...
-
Page 6: Specifications
SPECIFICATIONS Power Supply: 4-20 mA loop power Power Consumption: 25 mA (maximum) Alphanumeric Rate and Total Display: 8 digit, .75" high numeric display 8 character, .38" high alphanumeric display Fixed or toggle modes of operation for flow rate and totalizer display Pulsed Output Signal: Outputs one pulse for each increment of the least significant totalizer digit... -
Page 7: Operating The Monitor
ENTER – Used to enter sub-menus, save programming information and in the reset process If your monitor was ordered with an Omega flow meter, the two compo- nents ship from the factory calibrated as a set . If the monitor is a replace- ment, the turbine’s K-factor has changed, or the monitor is being used with... - Page 8 Rate / Total Display Mode Indicator Programming Choices FTB-1400 Series FLOW MONITORING SYSTEM PROGRAM RELAY1 RELAY2 ONE OMEGA DRIVE, BOX 4047 STAMFORD, CT 06907-0047 PHONE 203-359-1660 FAX 203-359-7700 www.omega.com Units Display Programming Keys Programming Choices Figure 2: Flow Monitor Controls...
- Page 9 PUL/M3 (pulses per cubic meter), etc . Press ENTER to save the K-factor unit and advance to the next parameter . NOTE: Unless otherwise specified, Omega turbine flow meters are supplied with K-factors measured in pulses per gallon (PUL/GAL) which will automatically convert to your desired units of measure.
-
Page 10: Ftb-1400 Simplified 4-20 Ma Programming
TOTALIZER PULSE OUTPUT – The pulse output parameter can be either enabled or disabled . When enabled this output generates 20 mS duration pulse for every time the least significant digit of the totalizer increments . The amplitude of the pulse is dependent on the voltage level of the supply connected to the pulse output and is limited to a maximum 30 VDC . - Page 11 Input Keypad Connector 1 2 3 4 5 Pulse Inuput Pulse Out 4-20 mA Freq. In +10 - 30 VDC +1 - 5 VDC Figure 3: Typical Ammeter Connection PASSWORD – Password protection prevents unauthorized users from changing programming information . Initially, the password is set to all ze- ros .
-
Page 12: Additional Input Options
ADDITIONAL INPUT OPTIONS The FTB–1400 Flow Monitor is capable of receiving magnetic pick-up input (small signal sine wave) or a contact closure input (pulse) . Since Omega FTB–1400 Flow Meters utilize a magnetic pick-up, the monitor is shipped configured for magnetic pick-up input . To change to a contact closure in- put, remove JP2 from the top two pins and jumper them to the bottom two pins . - Page 13 Simpli ed Menu K Factor Unit Units Pulse Output Figure 5: Basic Programming Menu...
- Page 14 3.93" 5.75" PROGRAM RELAY1 RELAY2 7.00" 8.93" MENU ENTER METER DISPLAY 7.00" 4.30" 5.75" 2.40" TYP. PROGRAM RELAY1 RELAY2 2.25" 7.00" TYP. MENU ENTER REMOTE DISPLAY...
- Page 15 SWIVEL MOUNT Figure 6: MOUNTING OPTIONS...
- Page 16 Figure 7: Installation Drawing...
-
Page 17: Troubleshooting Guide
TROUBLESHOOTING GUIDE Trouble Remedy • Check power supply voltage . Should be between 10 and No LCD Display 30 Vdc . • Check connection from meter pick-up to display input terminals . No Rate or Total • Check turbine meter rotor for debris . Rotor should spin Displayed freely . -
Page 18: Part Numbering
PART NUMBERING FTB–1400–XD–LP Mounting Style M - Meter Mount R - Remote Mount S - Swivel Mount REPLACEMENT PARTS Component Part Number Keypad B260713 Pick-up Cable B222-121 Desiccant Bag B260630 PVC Union B220016 PVC Reducer Bushing B220056 Rubber Washer B228207 Steel Lock Washer B220018 Desiccant Shield... - Page 19 Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
