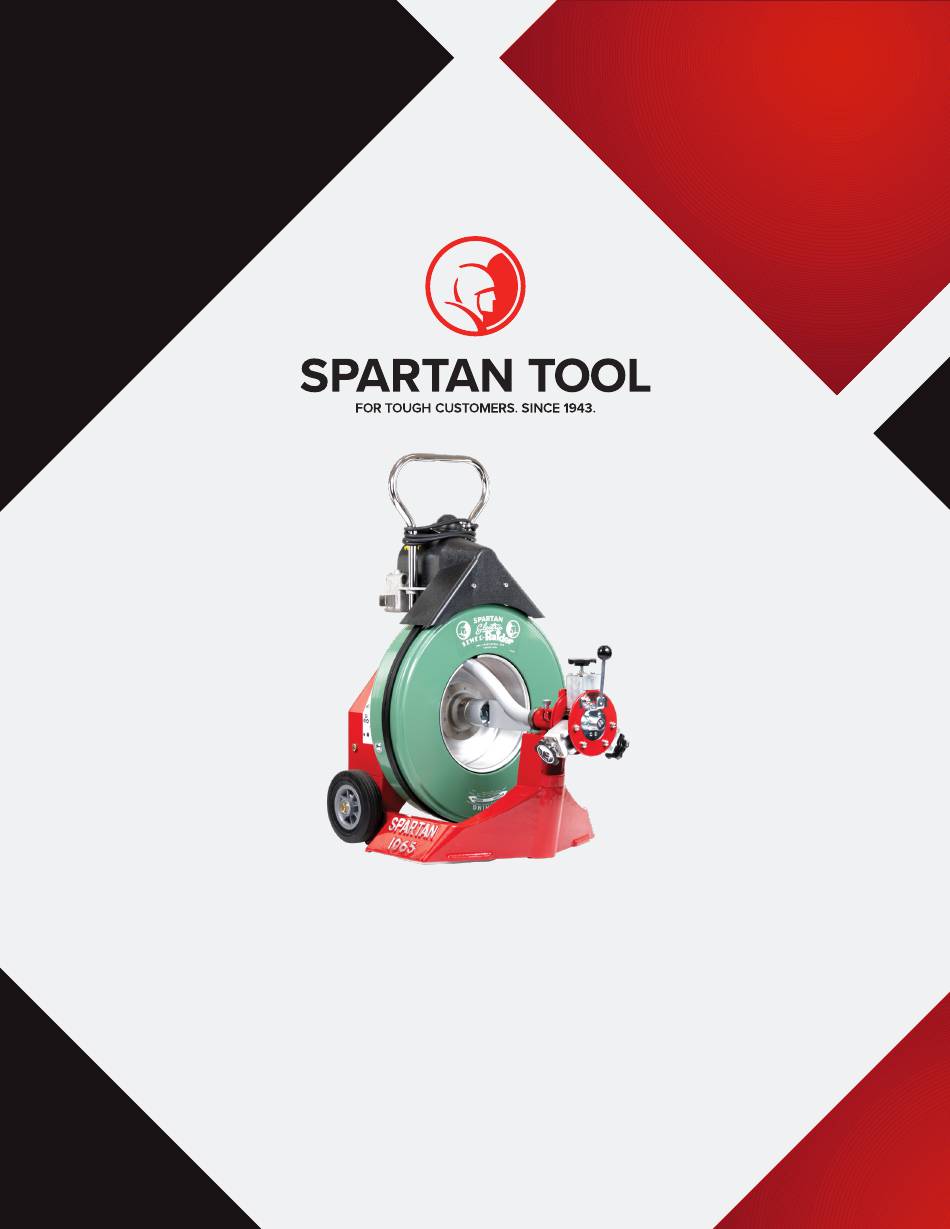

- Page 1 PRODUCT MANUAL Model 1065 Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 order by phone 800.435.3866 order online SpartanTool.com © 2024 Spartan Tool LLC Part #44292000 (Rev. E) 2024-00...
-
Page 2: Table Of Contents
Contents WARNINGS ......................4 INTRODUCTION . - Page 3 1065 PM MOTOR COVER ASSEMBLY 44292300 ........
-
Page 4: Warnings
Warnings • Read the safety and operating instructions before using any Spartan Tool products. Drain and sewer cleaning can be dangerous if proper procedures are not followed and appropriate safety gear is not utilized. • Before starting unit, be sure to wear personal protective equipment such as safety goggles or face shield and protective clothing such as gloves, coveralls or raincoat, rubber boots with metatarsal guards, and hearing protection. -
Page 5: Introduction
The Spartan Model 1065 electric drain and sewer cleaning machine has been designed and manufactured with high quality materials and care in workmanship. The instructions in this manual have been prepared to ensure that, when followed, the Spartan Model 1065 will provide long and efficient service. -
Page 6: Specifications And Features
Permanent magnet; 120 volt AC (rectified); Motor 0.65 amps (DC) @3050 rpm (no load); 4.2 amps (DC) 200 oz.-in torque @1800 rpm 147 lbs. for a 1065 Power Feed machine w/10' Weight anchor cable Height 40' to top of handle Width 24"... -
Page 7: Safety Instructions
Safety Instructions Use of any electrical equipment in a wet or damp environment can cause fatal shock if not properly guarded against by the operator. 1. Know your drain cleaning machine. Read this Product Manual carefully. Learn the operation, applications, and limitations of this machine. - Page 8 Safety Instructions 3. Extension cords DANGER: Improper use of an extension cord will cause death or severe injury. The GFCI on the machine's power cord does not protect the operator from electrical shock along the extension cord. If an extension cord must be used, it must be approved, three-wire construction, equipped with a three-pronged plug, and in good condition.
- Page 9 Safety Instructions 14. Keep children away. Do not let visitors contact tool or extension cord. All visitors should be kept away from work area. 15. Use recommended equipment and accessories. Use of improper equipment may be hazardous. Don't force small cable with attachment to do the job of heavy-duty cable. 16.
-
Page 10: Joining Cables
Machine Features 1065 With Dial-A-Cable Power Cable Feed Assembly Instructions STUDY THESE INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE YOUR EQUIPMENT JOINING CABLES All cables and leaders are coupled together by male and female couplings, and held securely by means of expansion pins as illustrated. -
Page 11: Disassembly
Assembly Instructions Disassembly Position coupling stand at convenient distance from machine (2-3 feet.) Place coupling in groove, expansion pin up, on top of stand. Place tip of punch (provided with machine) in expansion pin. Drive expansion pin down with hammer. Note the shoulder on tip of punch, acts as a stop. -
Page 12: Blades
Assembly Instructions .66 Magnum Cable FIG. 5 ASSEMBLY OF BLADES TO CABLE WARNING: Always disconnect power cord before attaching or changing blades. Each U-Type Cutting Assembly consists of: FIG. 6 Each Three-Blade Cutting Assembly consists of: FIG. 7 Blades The optional tool box is furnished with a number of different sizes and shapes of blades for various size sewers and types of cleaning work. -
Page 13: Optional Tools
Assembly Instructions Your Spartan blades can be attached to either a 2’ leader cable or a double male coupling. To attach a cutter assembly the base of the blade holder assembly needs to be seated onto the hex part of the leader or double male coupling. Next, the proper blade size is placed into the blade holder base. -
Page 14: Operation
Operation WARNING: Never wear loose fitting clothing or jewelry when operating this machine. Always wear your Spartan riveted gloves when handling cable. Couple the leader or double male coupling, complete with the proper tool, onto working end of the cable. See assembly instructions. - Page 15 Operation NOTE: Kinkage and breakage of cable is caused solely by one thing: you permit the working end of the cable to get hung up in an obstruction and you keep on twisting the other end of same with your motor, until something must give.
-
Page 16: Operating The Power Cable Feed
Operation 11. When tool is close to the clean out opening, release foot actuator and allow machine to come to a complete stop. 12. Move toggle switch to the “OFF” position and disconnect machine from power source. 13. Pull remaining cable and tool from the line and hand-feed cable back into the drum. Operating the Power Cable Feed The adjusting knob on the top controls the tension on the cable. -
Page 17: Special Applications Procedure
Special Applications Procedure CLEANING LINES THROUGH A MANHOLE Position your machine at top and about 1' away from manhole. Use a length of 1½" pipe with 45° elbow screwed there to (the depth of the manhole determines the proper length of pipe to be used). -
Page 18: Maintenance Instructions
Maintenance Instructions WARNING: Make sure machine is unplugged from the electrical system before making any adjustment. INSTRUCTIONS FOR SPLICING OR REPAIRING CABLE Splicing Cable (Standard Single Wound Cable) Square ends of cable to be spliced or repaired by placing each end against a grinding wheel, grinding down so that the shoulder of splicer or coupling will butt squarely against the cable ends. - Page 19 Maintenance Instructions Grind cable square by placing the cable end against a grinding wheel. Care is to be taken to assure the innercore is flush with outer cable. Grind outer cable and innercore down enough to produce a flat contact surface between the cable and connector (splicer or coupling).
-
Page 20: Lubricating Machine
Maintenance Instructions LUBRICATING MACHINE All the lubrication required to keep your machine in working order is to keep it greased the two zerk fittings that are provided require greasing. CHANGING MOTOR BRUSHES WARNING: Make sure machine is unplugged from electrical system. -
Page 21: Removing 10' Anchor Cable
NOTE: If any maintenance is required other than listed above or any other problem, least 6”-8” from clamp. call your nearest Spartan Tool Territory Manager or contact Spartan Tool. MACHINE STORAGE Electric motor driven equipment must be kept indoors or well covered in rainy weather. -
Page 22: Model 1065 Final Assembly 44115804
Model 1065 Final Assembly 44115804 m ~ Ö É = O S INSET m ~ Ö É = P M m ~ Ö É = P N 31 32 33 INSET 9 10 9 10 27 26 27 26 25 m ~ Ö... - Page 23 Model 1065 Final Assembly 44115804 CAUTION WARNING MOTOR SHOULD ALWAYS COME TO A COMPLE TE STO P BEFORE REVERSING. Item Part Number Description Qty. 04206100 Handle Assy (Includes Items 35, 36) 02882400 V-Belt - 1/2 hp 82" 4L 820 44289200 Spacer, Nylon 1"...
- Page 24 Model 1065 Final Assembly 44115804 Item Part Number Description Qty. Item Part Number Description Qty. Lower Casting Assy (Includes Back Casting Assy (Includes 04204700 04205400 Items 9, 10, 11, 25, 26, 27) Items 25, 26, 27, 31, 32, 33, 41, 53)
-
Page 25: 1065 Drum Assembly 44063100
1065 Drum Assembly 44063100 p É Åí á ç å = ^ J ^ Item Part Number Description Qty. 04205200 Outer Drum Hub Assy 1065 04205100 External Drum Assy 1065 02825000 Int/Ext Tooth Lockwasher 00114800 Screw, Hex Hd Cap 5/16-18 x 5/8... -
Page 26: 1065 Pm Motor Cover Assembly 44292300
1065 PM Motor Cover Assembly 44292300... -
Page 27: 1065 Frame Assembly 44118500
1065 Frame Assembly 44118500 02822300, 02750200 Required to secure drum. 14 37... - Page 28 1065 Frame Assembly 44118500 WARNING MOTOR SHOULD ALWAYS COME TO A COMPLETE STOP BEFORE REVERSING.
-
Page 29: Parts Required To Secure Drum
Thumb Screw Assy M 02897800 Rubber Tired Wheel 8 x 2.50 44302400 Screw, Hex Hd Cap 5/8-18 x 3-1/2 44291100 Ass'y, Pm Motor Support 1065 02820800 Nut, Hex Jam 5/8-18 00167600 5/8 Lockwasher 02853800 Thumb Screw 3/8" -16 x 1-1/2"... -
Page 30: 1065 Distributor Arm 03444500
1065 Distributor Arm 03444500 Item Part Number Description Qty. 02757300 Distributor Arm Assembly 1065 02751600 Collar Assy-Set 03409800 Thrust Bearing Nice # 619-V 03411400 Distributor Arm Bearing Assy Feed... -
Page 31: Cable Guide Assembly 44225300
Cable Guide Assembly 44225300... -
Page 32: Pm Motor Assembly
PM Motor Assembly 44290000 (110 VOLT) 44293400 (220 VOLT) BRAKE Replace worn brake by using 3mm hex BRAKE driver to remove 3 screws Part Number Description 04231300 Repair Brush Kit 100-300-1065-2001 44304200 115 V Brake 44304250 220 V Brake... -
Page 33: Motor Support Assembly
Motor Support Assembly 44291100 (110 VOLT) 44293900 (220 VOLT) 28 27 11 14... - Page 34 Butt Connector 44291100 as shown) 44294200 Jumper Wire 7" Black 44290000 PM Motor Assy 44120000 Switch Guard 44293400 PM Motor 220 V (1065) 44221600 Grommet 44041700 Strain Relief Bushing 44290700 Jumper Wire Assy Brown 5" 44109500 Outlet Box Cover 44290500...
-
Page 35: Forward Reverse Switch 44221500
Forward Reverse Switch 44221500 Item Part Number Description Qty. 44221550 Toggle, ON/OFF/ON 44110500 Rubber Boot 44038900 Assy, Jumper Wire - 2-1/2 E-Z Lift Dolly - 03436000 Item Part Number Description Qty. Item Part Number Description Qty. 02826200 Hex Head Cap Screw 03436000 E-Z Lift Dolly 02856900... -
Page 36: 3/4" Cable
3/4" Cable 3/4" NO TENSION 3/4" INNER-CORE 3/4" NO-CORE INNER-CORE (Loose wound for "P" Traps) Dia - Lth Part Number Dia - Lth Part Number 3/4" x 25' 3/4" x 25' Dia - Lth Part Number 03442101 04209901 3/4" x 50' 03442102 3/4"... -
Page 37: Universal Anchor Assembly 44292400
Air Foot Switch - 44225800 Item Part Number Description Qty. 44055500 Air Foot Switch (Complete As Shown) 04576900 Pressure Transmitter 04577100 Air Hose 04652700 Crimp Type Hose Clamp .66 Magnum Cable Dia - Lth Part Number .66 x 50' 44065502 .66 x 10' 44053501 Part Number Listing (For .66 Magnum Cable) - Page 38 Cotter Pin 1/8 x 1 77759900 Screw, Hex Head 3/8-16 x 1-1/4 Hoist Bracket Upgrade Kit 44295110 Item Part Number Description Qty. 00113901 Screw, Hex Hd 01950800 Nut, Kep Hex 1/4-20 44295100 Bracket, Hoist 1065 44296000 Instruction Sheet 1065 Hoist...
-
Page 39: Tool Box And Accessory Kit
Tool Box and Accessory Kit .66 CABLE (44060700) 3/4 CABLE (04647000) -
Page 40: Pneumatic Tire Upgrade Kit 44250700
Tool Box and Accessory Kit Item Part Number Description Qty. Item Part Number Description Qty. 44060700 Tool Box & Assy Kit (.66) 02797500 3 - Blade Holder Assy 04647000 Tool Box & Assy Kit (3/4") 44053300 Expansion Pin (.66) 02752500 02821800 Tool Box Expansion Pin (3/4") -
Page 41: Spartan Accessory Blades
Spartan Accessory Blades SPARTAN ACCESSORY BLADES 02799000 02799100 44261000 03416600 02786601 2" U-Blade 3" P-Blade 2" Double Cutter 3" Grease Blade 3" Half Blade 03400600 02799200 02786600 03416700 02790901 2½" Blade 3½" Blade 3" U-Blade 4" Grease Blade 4" Half Blade 02799300 02799500 44165200... -
Page 42: Warranty Information
Warranty Information For our terms and conditions, including warranty, please visit https://spartantool.com/pages/terms- and-conditions. For warranty assistance, please contact us at (800) 435-3866 or customerservice@ spartantool.com. CONTACT US Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 800.435.3866 SpartanTool.com... - Page 43 Notes...
- Page 44 CONTACT US Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 800.435.3866 SpartanTool.com...
