Meter Description

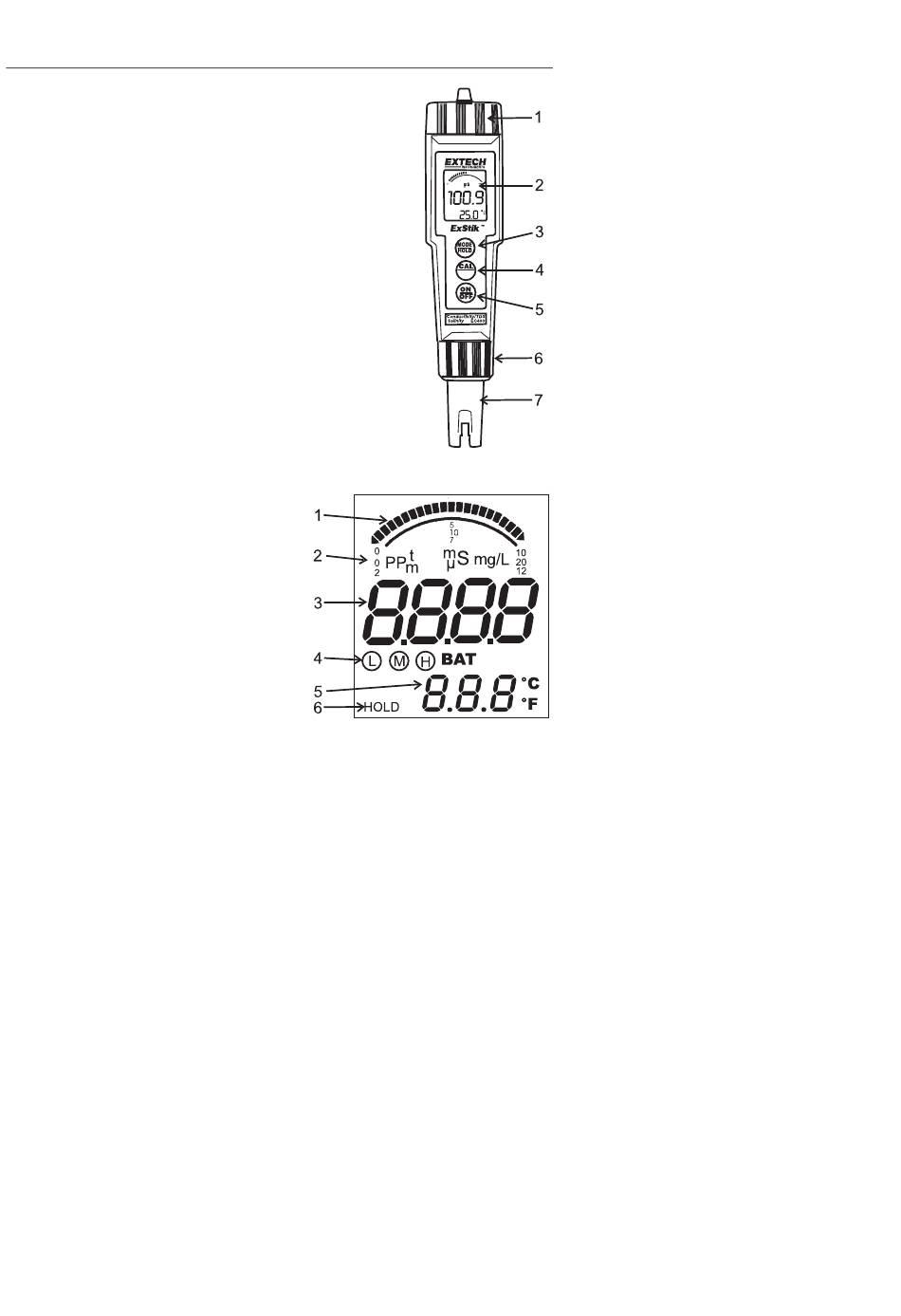

Front Panel Description
1. Battery compartment
2. LCD Display
3. MODE/HOLD button (change mode, Hold and
store data)
4. CAL/RECALL button (Calibration, change
temperature units and recall data.
5. ON/OFF button
6. Electrode Collar
7. Electrode
(Note: The Electrode cap is not shown)
LCD Display
1. Bargraph display
2. Measurement units
3. Main display
4. Range calibration and
low battery indicators
5. Temperature display
6. Reading Hold Indicator
EC400-EU V2.2 8-11-05
4
RECALL
