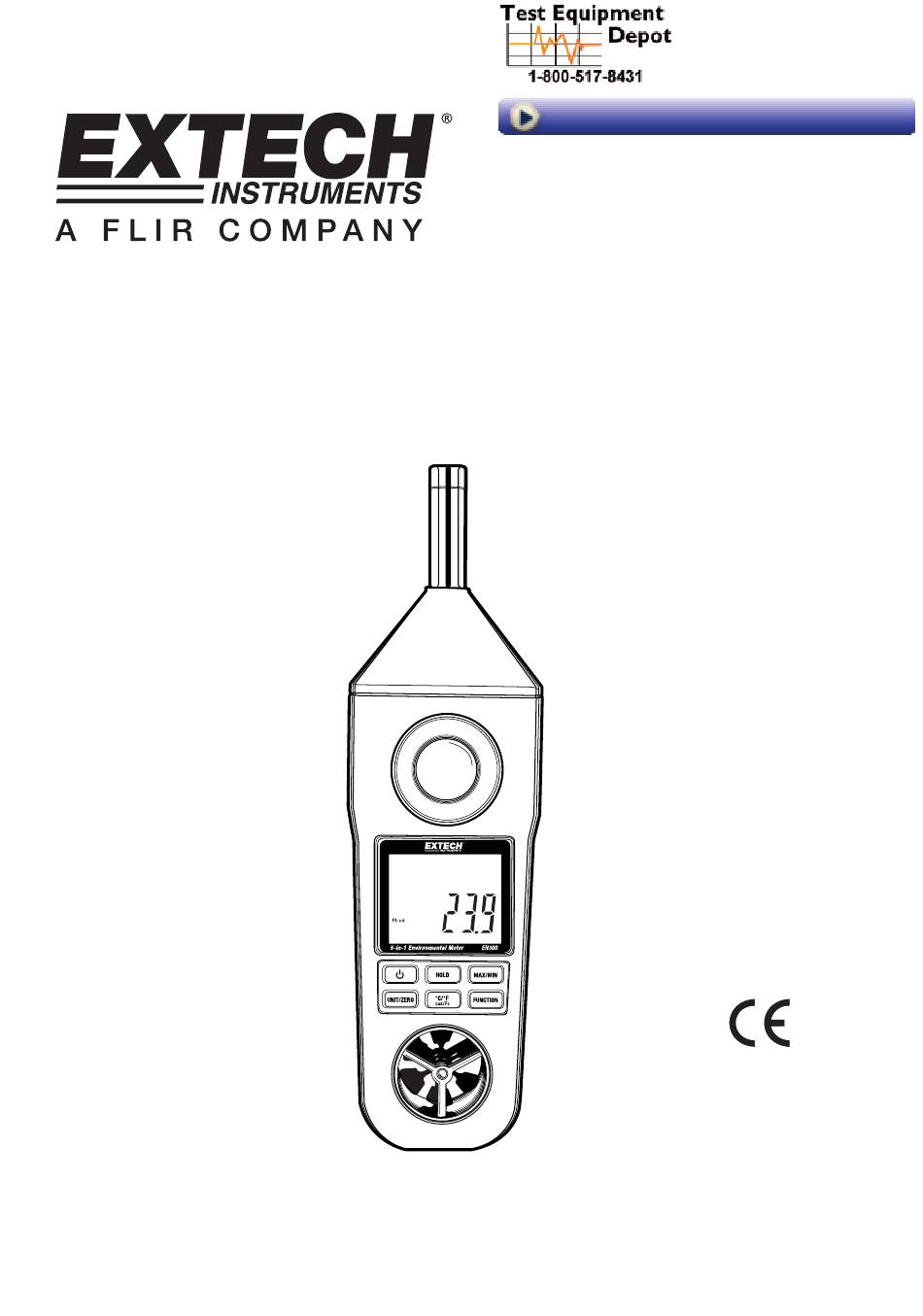

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 User's Guide Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com 5 in 1 Environmental Meter Model: EN300 Anemometer Humidity Meter Light Meter Thermometer Sound Level Meter...
- Page 2 Introduction Congratulations on your purchase of this Extech Meter. The EN300 is five professional meters built into one convenient package. This meter ships fully tested and calibrated and, with proper use, should provide many years of reliable service. Features This 5-in-1 professional measuring instrument provides the following functions: Anemometer uses a low-friction ball bearing mounted wheel design for high accuracy.
- Page 3 Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. Double insulation Cautions • Improper use of this meter can cause damage, shock, injury or death. Read and understand this user manual before operating the meter.
-
Page 4: Meter Description
Meter Description Microphone Light Sensor LCD display Hold Button Power Button Unit / Zero Button Air Speed Sensor Thermocouple Input Socket l RS-232 Output Terminal 10. AC power adaptor socket 11. Max. / Min. Button 12. Function Button 13. °C/°F Button/Lux/Ft-cd Button 14. -
Page 5: Operation
Operation Powering the meter Press the Power button to turn the instrument ON If the meter does not turn on or if the " " low battery symbol appears in the display, replace the batteries. Press the Function button to select the measurement needed. Note: The display orientation rotates, depending on the function selected. - Page 6 Hygrometer Humidity & Ambient Temperature Measurement Select the Relative Humidity function by pressing "Function Button" until the display indicates %RH. The humidity and temperature readings will be displayed on the LCD. When the meter is placed into a new environment, a few minutes are required to reach a stable condition.
- Page 7 Changing °C / °F units During temperature measurements, press the °C / °F button once to change the temperature units from "°C" to "°F". Hold Function Press the "Hold Button" to freeze the current reading value, "HOLD" symbol appears on the display. Press the button again to continue normal operation.
-
Page 8: Specifications
Specifications General Specifications Display LCD display, LCD size: 41.5 x 31.5 mm. Measurement 5 in 1 : Anemometer (Air velocity + Temperature) Humidity (%RH + Temperature) Light Thermometer ( type K ) Sound level Operating Humidity 80%RH Max. Operating Temperature 0 to 50°C (32 to 122°F) Over Input Display Indication of "- - - - "... - Page 9 30 MHz only Note: Specification stated for 23± 5°C Copyright © 2011 Extech Instruments Corporation (a FLIR company). All rights reserved including the right of reproduction in whole or in part in any form. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com EN300-EU-EN-V1.1.doc...
