Kobalt 54013 Manual

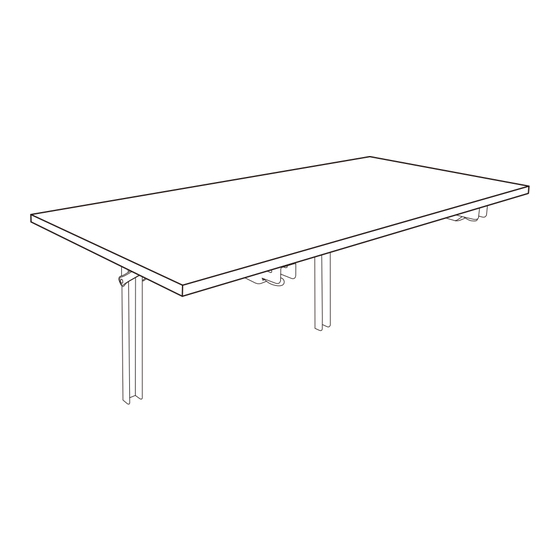

FOLDING WALL-MOUNTED WORKTABLE
Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-3KOBALT
(888-356-2258), 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at partsplus@lowes.com.
PACKAGE CONTENTS
A B
HARDWARE CONTENTS
AA
ST6 x 40 mm
screw
Qty.6
SAFETY INFORMATION
• Please read and understand this entire manual before attempting to assemble, operate or install the product. Failure to follow may result
in serious injury.
• Make sure the brackets are locked before use to prevent the brackets folding down and may cause injury.
• Weight capacity: 400lbs. Evenly distributed.
WARNING: Do not allow children to climb or play in or around this product.
Overload may cause product instability and may cause injury. Distribute weight evenly.
PREPARATION
• Before beginning assembly of product, make sure all parts are present.
• Compare parts with package contents list and hardware contents list.
• If any part is missing or damaged, do not attempt to assemble the product.
XXXXXXX
Part Description
A Bracket
B Bench top
BB CC
ST5 x 40 mm ST4.8 x 19 mm
screw screw
Qty.2 Qty.4
ITEM #5105889

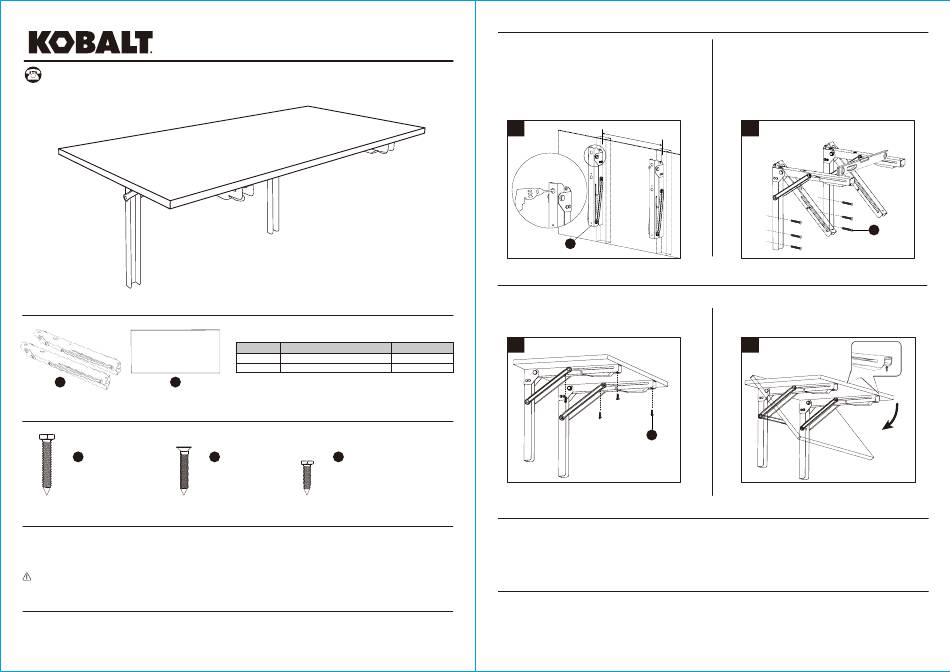

ASSEMBLY INSTRUCTIONS
MODEL #54013
1. Locating the wood stud (with stud finder if necessary). Measure
16 in apart center to center, mark lines and mounting holes on
the wall at a desired installation height. Using screws (BB),
secure brackets(A) onto the wall make sure it is on the the
same level. Only fix the screws, not tighten.
Note: Two brackets must be installed at the same level and
vertical to the ground. Install into wood stud only.
1
BB
A
3. Place bench top (B) on brackets (A) centered. Using
screws (CC), secure bench top (B) onto brackets (A).
3
Quantity
2
1
CARE AND MAINTENANCE
On an annual basis, it is recommended to double check all connections and re-tighten all screws. Clean with a soft clean cloth towel. Never
use water to clean. Always use protective pads under hot dishes and plates.
Liquid spills need to be removed immediately. Always use protective pads under hot dishes and plates.
WARRANTY
Lifetime Hassle-Free Guarantee.
You should never have a problem with your Kobalt tools. However if you do, return the item to the place of purchase for a free replacement.
No questions asked .This warranty excludes screws. For warranty information, call l-888-3KOBALT, 8 a.m. -8 p.m , EST , Monday-Sunday.
You could also contact us at partsplus@lowes.com.
2. Unfold the brackets and make sure they are locked in
place. Measure the distance between brackets at both
top and bottom to make sure it is the same. Using screws
(AA), complete the brackets installation. Tighten all the
screws (AA) & (BB).
Note: For cement wall installation, please use proper
anchor (not included).
2
1 6 in
4. When not in use, gently press the handles (tongues)
upwards at the front ends to allow the table to fold down.
4
CC
T A L
I Z O N
H O R
K E E P
AA
