Fail-safe SmartPLC
SafeLine
with Profinet slave interface
AC402S
80283444/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC402S and is the answer not in the manual?

Questions and answers

Summary of Contents for IFM AC402S

  • Page 1 Original operating instructions Fail-safe SmartPLC SafeLine with Profinet slave interface AC402S 80283444/01...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used ������������������������������������������������������������������������������������������������4 2 Safety instructions �����������������������������������������������������������������������������������������������4 2�1 General ����������������������������������������������������������������������������������������������������������4 3 Items supplied������������������������������������������������������������������������������������������������������5 4 Functions and features ����������������������������������������������������������������������������������������6 4�1 Electrical voltage supply ��������������������������������������������������������������������������������6 4�2 Configuration interfaces X3 and X8 ���������������������������������������������������������������6 4�3 AS-i interfaces �����������������������������������������������������������������������������������������������6 4�4 Local safe inputs and outputs X4 ������������������������������������������������������������������7 4�5 Fieldbus interfaces X6 and X7 �����������������������������������������������������������������������7 5 Installation������������������������������������������������������������������������������������������������������������7...
  • Page 3 9 Diagnostics ��������������������������������������������������������������������������������������������������������17 10 Maintenance, repair and disposal ��������������������������������������������������������������������17 11 Approvals / tests �����������������������������������������������������������������������������������������������17 12 Additional documents���������������������������������������������������������������������������������������17 13 Technical data ��������������������������������������������������������������������������������������������������18 13�1 Safety classification �����������������������������������������������������������������������������������19 14 Scale drawing ��������������������������������������������������������������������������������������������������20...
  • Page 4: Preliminary Note

    Technical data, approvals, accessories and further information at www�ifm�com� This document applies to devices of the type "Fail-safe SmartPLC with PROFINET slave interface" (art� no�: AC402S)� It is part of the device and contains information about the correct handling of the product�...
  • Page 5: Items Supplied

    1 fail-safe SmartPLC AC402S 3 Combicon connection terminals 1 original operating instructions AC402S 1 EU declaration of conformity • Service address list with ifm contacts If one of the above-mentioned components is missing or damaged, please contact one of the ifm branch offices�...
  • Page 6: Functions And Features

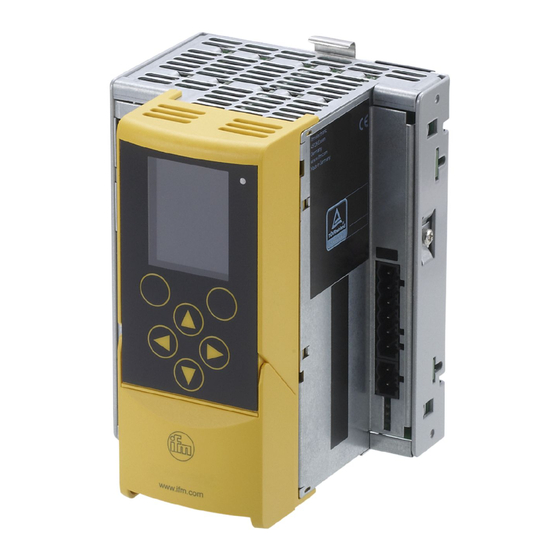

    Device manual and programming manual are not supplied� These are available at www�ifm�com� 4 Functions and features The fail-safe SmartPLC SafeLine AC402S integrates two AS-i masters, a safe PLC, a non-safe PLC, a WEB server and a PROFINET slave interface with 2-port switch�...
  • Page 7: 4�4 Local Safe Inputs And Outputs X4

    4.4 Local safe inputs and outputs X4 In the following they are called Safe-IO� • 8 connection terminals for - up to 4 safe inputs according to SIL3 / PL e / category 4 - up to 8 non-safe inputs Use safe inputs always with two channels�...
  • Page 8: Operating, Connection And Display Elements

    Ensure a condensation-free environment� Avoid excessive dust, vibration and shock� The air circulation through the vents must not be impeded� Avoid installation in direct vicinity of frequency inverters or other sources of interfering� 6 Operating, connection and display elements 6.1 Operating and connection elements 1: Device LEDs H1 green / yellow / red 2: Softkeys 3: Navigation buttons...
  • Page 9: 6�2 Led Indicators

    6: Connection for 24 V Safe-IO voltage supply and local inputs/outputs X4 7: Front flap 8: Slot for SD card 9: Configuration interface X3 10: Configuration interface X8 11: PROFINET interface 1 X7 12: PROFINET interface 2 X6 6.2 LED indicators 6.2.1 Device LED H1 The LED on the front panel signals the state of the device and the connected systems�...
  • Page 10: Electrical Connection

    ► Connect the device as indicated on the terminals� ► Ensure an electrical connection between the fail-safe SmartPLC SafeLine AC402S ( terminal X1, pin 5 FE) and the ground of the installation� ► Ground the X3, X6, X7 and X8 interfaces on both sides�...
  • Page 11: 7�2 Connect The Supply Voltage

    ► For the 24 V power supply (device, Safe-IO), select a power supply which supplies an output current of at least 3 A� ► The cable length of the DC supply between power supply and AC402S is to be limited to max� 3 m�...
  • Page 12: 7�3 Connect Sensors / Actuators

    The power supplies used must meet the standard DIN EN 60950-1 for SELV/ PELV� 7.3 Connect sensors / actuators The sensors and actuators are connected to all local (safe) inputs and outputs via terminal X4� ► Connect the switching signals of sensors to the pins IN1���IN8 of terminal X4� ►...
  • Page 13: 8�2 Settings

    8.2 Settings During operation the display is switched off after 10 minutes without operati- on� ► Activate the display by pressing any button� 8.2.1 Language selection ► Change the user language of the device by pressing the ► button and the ▲ button or ▼...
  • Page 14: 8�3 Navigation

    8.3 Navigation 8.3.1 Navigation elements 1: Focus 2: Operating area 3: Softkey labelling (e�g� menu, OSC) 4: Navigation compass 5: Navigation status bar 6: Main navigation bar 7: Info bar...
  • Page 15: 8�3�2 Pictograms And Main Navigation

    8.3.2 Pictograms and main navigation Quick set-up (summary of the menu points required for a basic configura- tion) • Config all Projection adaptation for AS-i master 1 and AS-i master 2 • Operating mode Selection of the operating modes for - AS-i master 1, - AS-i master 2, - Control of the outputs (gateway, manual, PLC)
  • Page 16: 8�3�3 Osc (Online Support Center)

    System • PLC - Information - Settings - Diagnostics • Information • Settings • Diagnostics Interfaces • Settings and information of the configuration interface • Settings and information of the PROFINET interface Safety • Settings, information and diagnostics of the safe controller Safety •...
  • Page 17: Diagnostics

    ► Dispose of the device in accordance with the national environmental regulations� 11 Approvals / tests • EMC • Functional safety / TÜV-Rheinland • AS-Interface / AS-i Safety at Work • UL (cULus) • PROFINET 12 Additional documents Data sheets, device manual, programming manual and registration documents → www.ifm.com...
  • Page 18: Technical Data

    13 Technical data AC402S Fail-safe SmartPLC with PROFINET interface 4 safe local inputs (dual channel) and 2 safe local semiconductor outputs Electrical data Number of AS-i masters Operating voltage [V] 18���32 DC (AUX) Current consumption from 24 V DC and <...
  • Page 19: 13�1 Safety Classification

    Protection IP 20 AS-i classification AS-i version 3�0 AS-i profile AS-i certificate 125301 Mechanical data Housing materials Aluminium powder-coated; steel sheet galvanised; Makrolon Displays / operating elements Display Full graphic LCD display LED function display 1 x combined LED (red / green) 13.1 Safety classification Meets the requirements of EN ISO 13849-1: 2015 category 4 PL e...
  • Page 20: Scale Drawing

    14 Scale drawing 106,2...
