Sealey SA86 Instructions

Models: SA86,
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
3 Familiarise yourself with the application and limitations of the air hose reel, as well as the specific hazards.
p WARNING! Disconnect the
3 Maintain the air hose reel
3 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
3 Locate and fix the air hose reel
cold. Ensure there is adequate lighting.
p WARNING! Ensure maximum air pressure is not exceeded.
3 Keep extended air hose away from heat, oil and sharp edges. Check hose for wear before each use, and ensure all connections are secure.
3 Keep the unwound air hose at a safe distance from the working area and free from wet, damp, oily surfaces.
p WARNING! Always wear approved eye or face protection when operating the
3 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
3 Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery and contain and/or tie back long hair.
3 Keep children and unauthorised persons away from the working area.
7 DO NOT operate the air hose reel
7 DO NOT exceed the rated capacity of the
7 DO NOT use the air hose reel
7 DO NOT yank the hose from the air supply.
7 DO NOT operate the air hose reel
7 DO NOT direct air from the air hose at yourself or others.
3 When not in use ensure the air supply is turned off and tools disconnected. Disconnect from the air supply and retract the hose into case.
p WARNING! DO NOT dismantle the hose reel casing, or attempt to remove the screws on the sides, or the lid above the hose
clamping lever. To do so may result in damage to the appliance and/or personal injury and will invalidate the warranty.
Internal maintenance, which will require the opening of the casing, must only be undertaken by an authorised service agent.
2. INTRODUCTION & SPECIFICATIONS
All models have a hard wearing composite casing with retracting air hose reel, ratchet and free-running operation enabling easy access to
locations within the extended air hose range. All reels can be wall or ceiling mounted and come complete with attachment brackets.
MODEL NO. . . . . . . . . . . . . . . . . . .SA86 . . . . . . . . . .SA89 . . . . . . . . . .SA892 . . . . . . . . . .SA893 . . . . . . . . . .SA894 . . . . . . . . . .SA895
Hose length . . . . . . . . . . . . . . . . . . . . .6m . . . . . . . . . . .12m . . . . . . . . . . .10m . . . . . . . . . . . .8m . . . . . . . . . . .15m . . . . . . . . . . .10m
Hose bore . . . . . . . . . . . . . . . . . . . . .6mm . . . . . . . . . . .6mm . . . . . . . . . . .6mm
Maximum pressure . . . . . . . . . . . . .10 bar . . . . . . . . . .10 bar . . . . . . . . . .10 bar . . . . . . . . . .10 bar . . . . . . . . . .10 bar . . . . . . . . . .10 bar
Hose type . . . . . . . . . . . . . .Polyurethane . . . . .Polyurethane . . . . .Polyurethane . . . . .Polyurethane . . . . .Polyurethane . . . . .Polyurethane
Inlet - Outlet Ø . . . . . . . . . . . . . . .1/4”BSP . . . . . . . .1/4”BSP . . . . . . . .1/4”BSP . . . . . . . .1/4”BSP . . . . . . . .1/4”BSP . . . . . . . .3/8”BSP
3. FITTING THE HOSE REEL
p WARNING! Ensure the hose is disconnected from the air supply. Do not position the hose
in direct sun light or in areas of extreme heat or cold.
3.1. Fitting to the wall.
3.1.1. Ensure the wall, or structure, to which the air hose is to be fixed is of sound construction
and that the securing point will hold the working strain of the hose when in use.

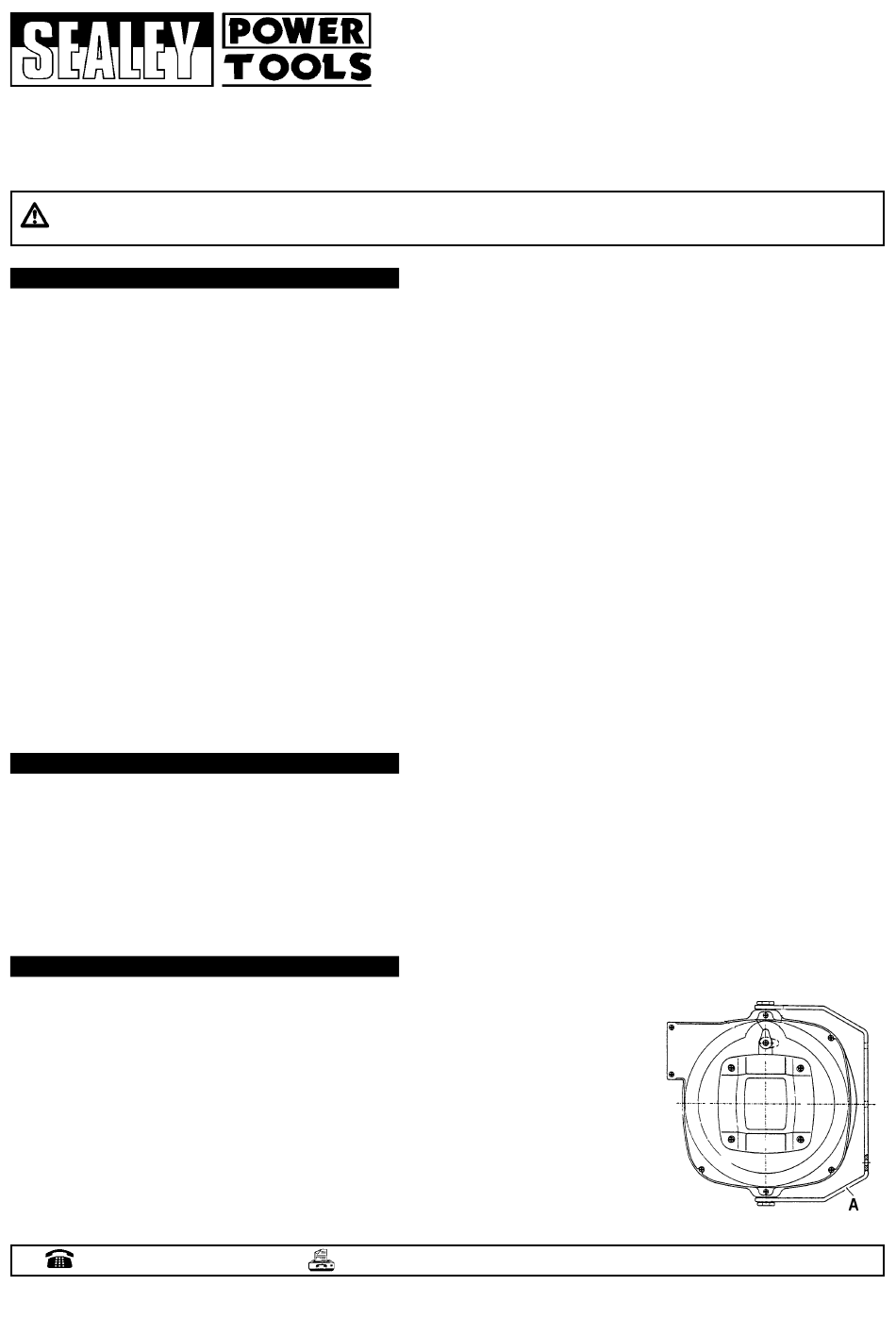

3.1.2. Vertically align air hose supporting bracket (fig 1.A), with surface to which it will be mounted.
3.1.3. Drill and plug the wall and screw mount the support bracket.
3.1.4. Check to ensure that the main body will adequately turn to allow the hose to be extended
without rubbing on either side of the air hose housing.
3.1.5. Before use, check that all fixings are safe and secure, and that the hose extends
and retracts with ease.
