Sealey SA401.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
Follow workshop Health & Safety rules, regulations and conditions when using the grease gun.
9
WARNING! Disconnect from air supply before changing accessories or servicing.
‰
Maintain the gun in good condition and replace any damaged o r w o r n p a r t s. Use genuine parts only. Unauthorised parts
9
may be dangerous and will invalidate the warranty.
WARNING! Check that the correct air pressure is maintained and not exceeded.
‰
Keep air hose away from heat, oil and sharp edges. Check hose for wear before each use and ensure that all connections are secure.
9
Wear approved safety gloves and eye and ear protection.
9
Keep gun clean and in good working order for best and safest performance.
9
Keep children and unauthorised persons away from the work area.
9
DO NOT use the gun for a task it is not designed to perform.
8
WARNING! DO NOT use gun if damaged or thought to be faulty. Contact your local service agent.
‰
WARNING! Grease is delivered at high pressure. DO NOT point the grease nozzle at yourself or others.
‰
WARNING! Excess grease, if left on floors, tools, or equipment, can create surfaces that become slippery.
‰
DO NOT operate the trigger until the nozzle is firmly attached to the receiving grease fitting.
8
DO NOT drop, throw, or abuse, the gun.
8
DO NOT carry the gun by the air hose, or yank the hose from the air supply.
8
DO NOT operate gun if you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT direct air from the air hose at yourself or others.
8
When not in use, disconnect from air supply and store in a safe, dry, childproof location.
9
Disconnect the Compressed Air line supply before servicing the Gun.
9
2. INTRODUCTION
Die-cast head and body with chromed steel grease tube. Includes rigid delivery tube and 4-jaw coupler. Trigger operated continuous flow gun with
3-way fill and air-bleed valve. Accepts 400g grease cartridges, bulk or manual fill.
3. SPECIFICATION
Model No/ SA401.V3
Delivery pressure: 2400-6000psi
Nett Weight: 1.59kg
Operating pressure: Range: 60-150psi: Recomended 90psi
Optional Accessories: GGHE300 - 300mm Flexible Delivery Tube

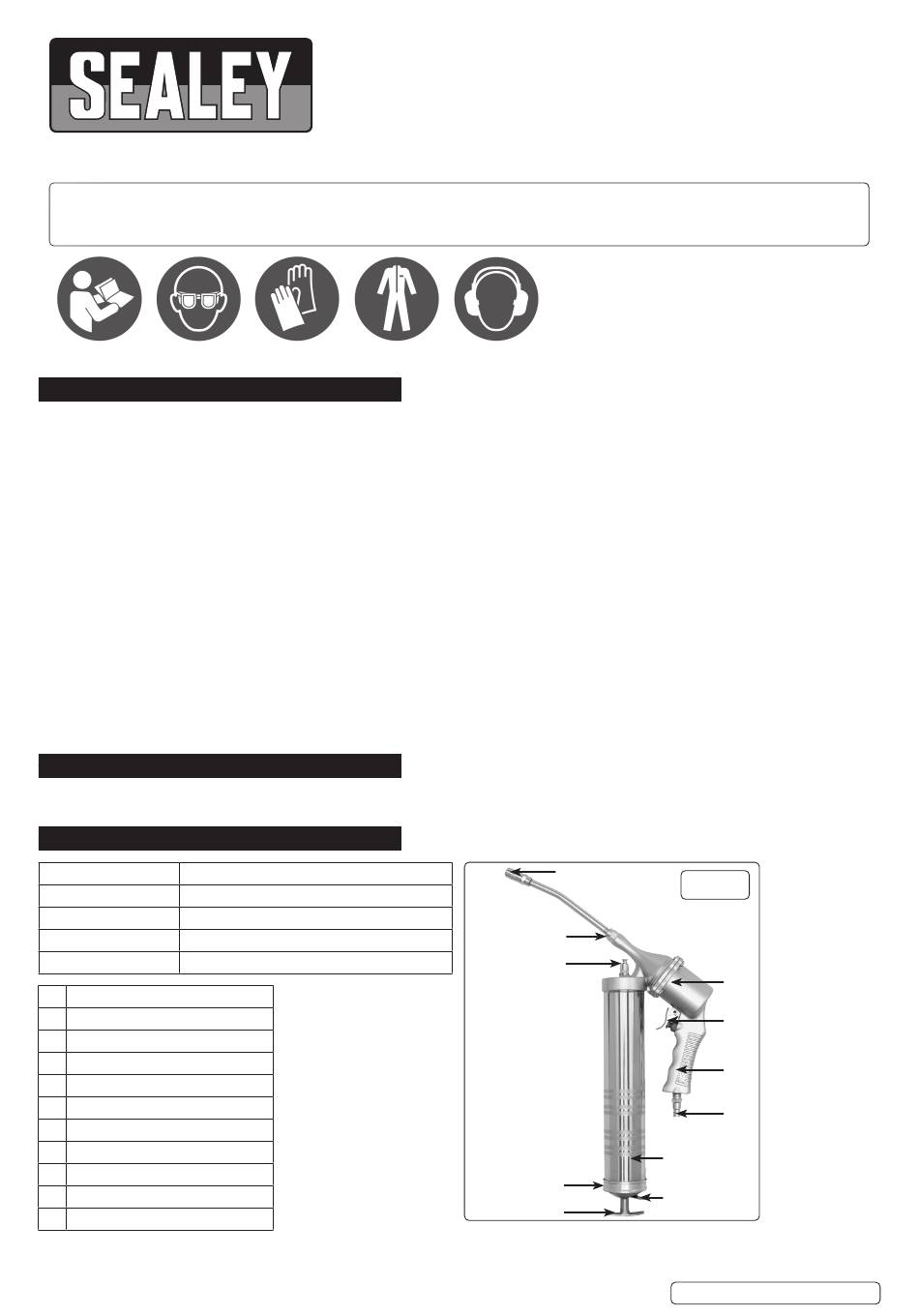

1 Coupler
2 Outlet Nozzle
3 Grease Loader Fitting
4 Pumping Chamber
5 Trigger
6 Die Cast Handle
7 Quick Coupler Air Fitting
8 Barrel
9 Lock Lever
10 End Cap
11 Plunger Rod Handle
© Jack Sealey Limited
AIR OPERATED CONTINUOUS FLOW PISTOL
GRIP GREASE GUN
MODEL NO:
Wear protective
Wear protective
gloves
clothing
Original Language Version
SA401.V3
Wear ear
protection
1
2
3
10
11
fig.1
4
5
6
7
8
9
SA401.V3 Issue 2 29/05/24
