Sealey DG04 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Ensure that the drum grab is in good working order. Take action for immediate repair. The use of unauthorised parts may be dangerous
9
and will invalidate the warranty.
Operate the drum grab in a suitable, well lit work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
Ensure all non-essential persons keep a safe distance whilst lifting.
9
DO NOT use to lift personnel.
8
DO NOT carry loads over personnel.
8
DO NOT leave suspended loads unattended.
8
DO NOT use the drum grab if damaged.
8
DO NOT allow untrained persons to operate the drum grab.
8
DO NOT exceed the rated capacity of the drum grab.
8
When not in use, store in a safe, dry, childproof area.
9
Before lifting the load ensure that the drum grab hooks are engaging with the rim and that there are no obstacles which may snag the
9
load whilst it is being lifted.
To avoid injury, be fully aware of your own and other persons locations in relation to the lifting and lowering of the load.
9
DO NOT use with other attachments.
8
DO NOT allow the load to swing during lifting/transporting.
8
DO NOT allow the load to drop suddenly. Lower load with care, ensuring that you are fully aware of the condition of the surface onto
8
which the load is to be placed.
DO NOT use this product to perform a task for which it is not designed.
8
DO NOT use whilst under the influence of drugs, alcohol or intoxicating medication.
8
WARNING! Failure to heed safety and warning instructions may result in damage and/or personal injury and will invalidate the warranty.
‰
2. INTRODUCTION
DG03: Manufactured from heavy-duty steel. Features three gripping hooks to provide maximum security and control when lifting.
Suitable for lifting 205L vertical plastic and steel drums. Compatible for use with an overhead hoist.
3. SPECIFICATION
MODEL NO:
Capacity:
Drum Size:
Nett Weight:

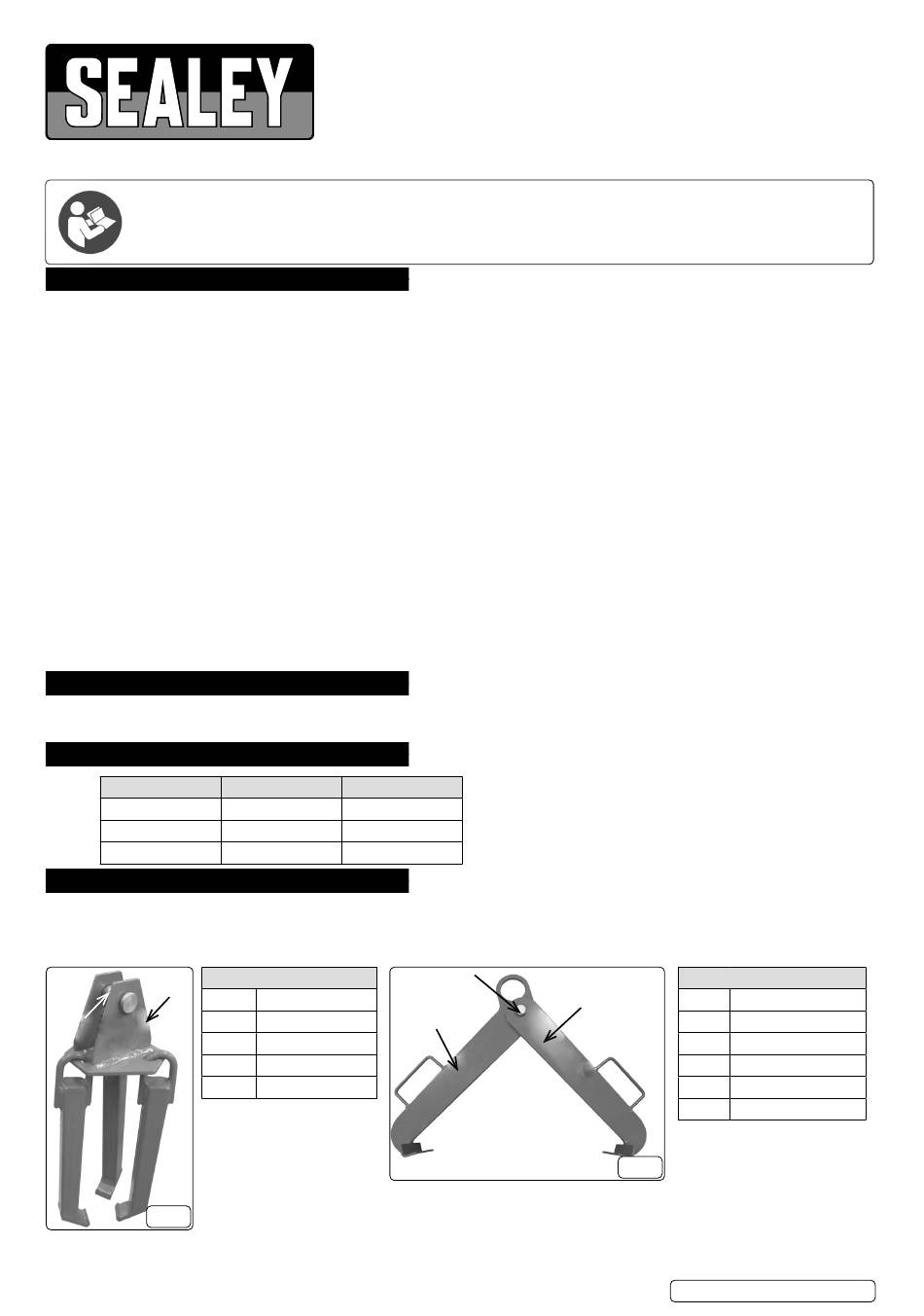

4. ASSEMBLY
4.1. Check contents from lists. In the unlikely event of missing or damaged parts consult your Sealey dealer immediately.
4.1.1. If supplied separately, only the pivot pin will require fitting on Model DG03, retained by a washer and a split pin.
4.1.2. On Model DG04 the pivot screw is retained by a hex nut and a split pin. DO NOT over tighten.
DG03
1
Item
2,3,4
1
2
3
4
DG03
© Jack Sealey Limited
DRUM GRABS
MODEL NO:
DG03 DG04
350kg 500kg
205L 205L
4.5kg 5kg
Description
Drum Grab
Pivot Grab
Ø20 Plain Washer
Ø3 x 30 Split Pin
Original Language Version
DG03, DG04
3,4,5
2
1
DG04
Item Description
1 Jaw with Lifting Eye
2 Jaw
3 Hex Screw M16 X 30
4 Hex Nut M16
5 Ø2 X 25 Split Pin
DG04
DG03, DG04 Issue 3 14/05/24
