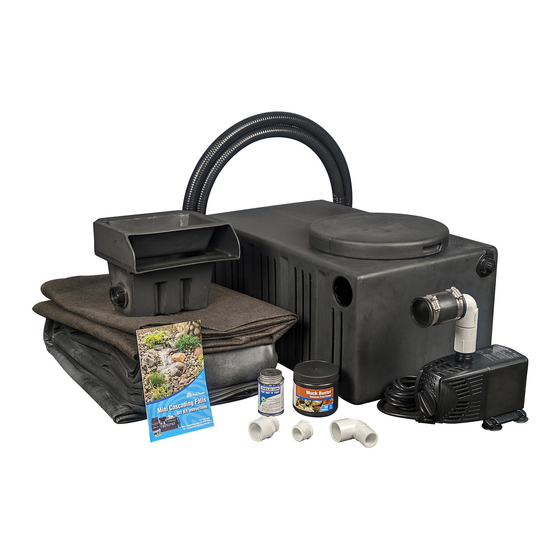

- Page 1 DIY Cascading Falls Pond-Less Kit Installation Manual For use with Mini Cascading Falls Kit #PB1373 20” Cascading Falls Kit #PB1854...
- Page 2 Included in this The DIY kits come complete with • Cascade Box all the necessary equipment to Pond-Less Falls Kit: • Canyon Matrix complete the installation including: Choosing Your Pond-Less Waterfall Location The waterfall is best positioned so that you can view it from the outdoor and indoor areas where you plan to enjoy your new water feature.
- Page 3 • Submersible Pump • Black PVC flexible hose • Rubber EPDM liner • Pump discharge assembly • Protective underliner • Instructions STEP 4 Install the Canyon Matrix Now that you have the underliner and liner installed, place the Canyon Matrix into position.
- Page 4 STEP 7 Stream Outline 7a Next, pull back the stream liner and lay over the installed Canyon Matrix while you determine the path that the waterfall and stream will take to enter into the basin. 7b Using paint will help keep a visual reference of what you’re working towards.
- Page 5 STEP 10 Line the Streambed 10a Pull underliner up the streambed as far as it reaches and press into trench. Next, pull rubber liner up to the top of the streambed, past where the Cascade Falls Box will sit. 10b Place flex hose in trench on top of the liner.
- Page 6 STEP 13 Measure and Trim Flex Hose Set Cascade Box in position on the liner. Estimate where the black flex hose will need to be trimmed to accommodate its connection to the Cascade Box then trim away any excess hose. STEP 14 Connect Hose to Cascade Falls Box Using the supplied PVC...
- Page 7 STEP 17 Placing Rockwork Place rock work at the end of the stream area either just in front of the matrix or if you are tight on space you can position your boulders on top of the Canyon Matrix. ROCK WORK T IP Don’t worry if this is your first time, let the creative juices flow.
- Page 8 Basin Layout Recommendations Blue Thumb DIY Cascading Falls Kits TOP VIEW OF BASIN AREA 10” SPILLWAY 20” SPILLWAY #PB1373 #PB1854 MAXIMUM STREAM 3’ 7’ LONG LONG 26.5” 1’- 2’ 2’- 4’ WIDE WIDE 12” Dia. Lid BASIN AREA SIDE VIEW OF BASIN AREA 16”W...
