Gtech MULTi Platinum ATF061 Operating Manual page 5

AirRAM: Assembly

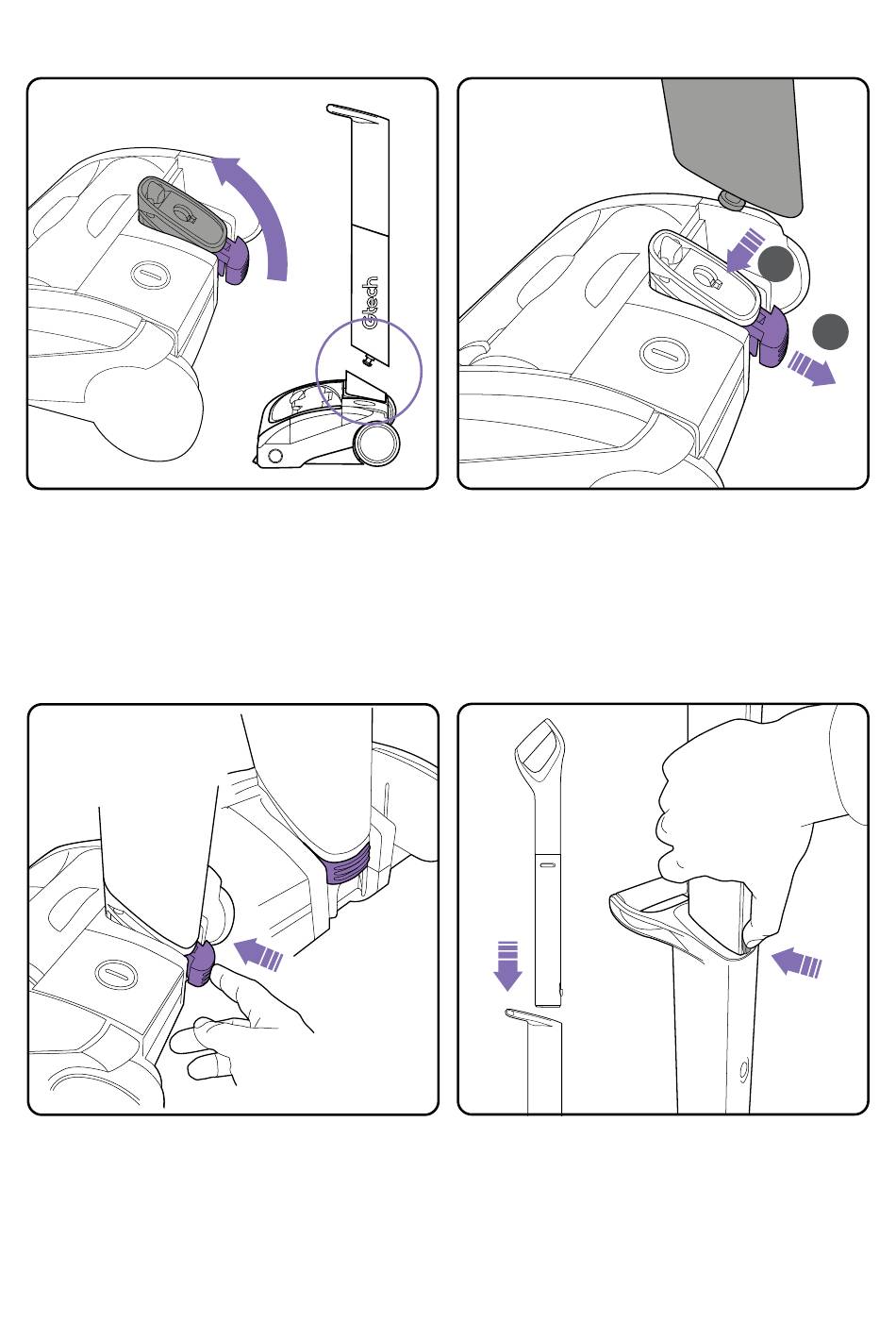

Push the pivot poke to the upright position.
This might require some force.
Attach the lower handle to the head assembly
(See next step)
Ensure the lower handle is sitting completely
flush against the pivot yoke. Firmly push the
purple locking clip until it clicks fully into place.
The clip can be pulled out to unlock the lower
handle should it need to be removed.
Pull out the purple locking clip to allow the
lower handle to fit (the clip remains attached
to the head) Insert the metal pin on the lower
handle into the hole in the pivot yoke.
Insert the upper handle into the lower handle.
You will need to press the button on the upper
handle to fit it in.
Once it slides down you will hear it click into
place.
2
1
5
