Technical Support and E-Warranty Certificate www.vevor.com/support
DOCK LADDER
USER'S MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR ZT-F03
Summary of Contents for VEVOR ZT-F03
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support DOCK LADDER USER'S MANUAL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Safe Instructions
SAFE INSTRUCTIONS WARNING: Carefully read instructions and procedures for safe operations. and SAVE THESE INSTRUCTIONS Do not modify the ladder / platform design. • Do not move a ladder / platform while standing on it. • Do not use in bad weather, such as wind, rain, snow and so on；It is recommended to use the ladder in clear weather. - Page 4 12. Minors should only use ladders under the guidance of their guardians; 13. When using a ladder, climb up or down slowly to avoid personal injury or accidents caused by falling or bumping the ladder; 14. Before using a ladder after placing it for a long time, check whether the ladder is loose to prevent personal injury or accidents;...
-
Page 5: Product Introduction
7.Secure doors (not fire exits) and windows where possible in the work area; 8.Face the ladder when ascending and descending; 9.Keep a secure grip on the ladder when ascending and descending; PRODUCT INTRODUCTION Model ZT-F03 ZT-F04 ZT-F05 SPEC. Steps Step Spacing... -
Page 6: Product Diagram

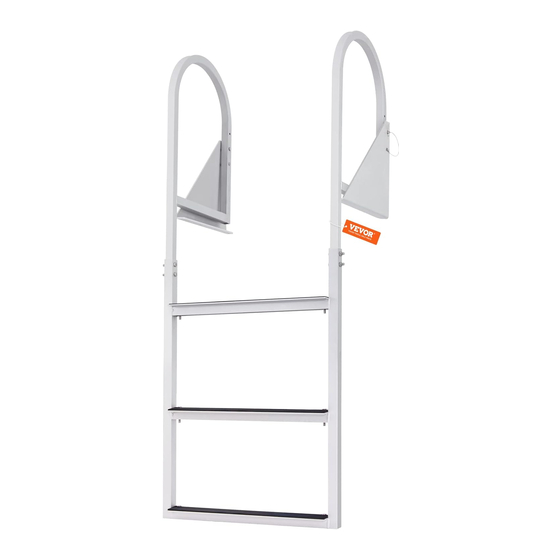

PRODUCT DIAGRAM （Take ZT-F03 as an example） 1.Handrail 2.Frame 3. Step 4. Fixed Mount 5. Stop Pin - 5 -... - Page 7 COMPONENTS Q’ty of Q’ty of Q’ty of Name Picture ZT-C03 ZT-C04 ZT-C05 - 6 -...
-
Page 8: Installation Instruction
N （Rope） INSTALLATION INSTRUCTION 1. Two or more people to move and assemble the workbench. 2. Please prepare a carpet or mat to protect your floor you need to spread out all the accessories. 3. Please prepare gloves to avoid being scratched by sharp parts that may occur during installation. -
Page 9: Installation
screws first, otherwise, it may make the installation difficult. Installation: STEP 1: Install the non-slip mats(F).Note that pass the bolts through the mounting holes from top to bottom. - 8 -... - Page 10 STEP 2: Install the handrails(G).Note that pass the bolts through the mounting holes from inside out. - 9 -...
- Page 11 STEP 3: Install two fixed mounts(D,E), (Tips:S=602mm~608mm,Y=38~40mm） (This product only provides accessories for wooden dock mounting plates. Other installation methods need to purchase additional accessories) - 10 -...
- Page 12 Note: 1. For a wooden dock mounting plate,the recommended thickness is greater than 50mm. Place two fixed mounts at the appropriate position of the mounting plate,then lock the fixed mounts with the self-tapping nails. 2. For a concrete dock mounting plate,the recommended thickness is greater than 80mm.
- Page 13 STEP 4: Install the ladder: Thread two pins (M) from the inside,then attach the rope loop(I),and then insert the pins(K),bend both the legs of the pins (K) as shown,Now the ladder is ready to rotate around the pins(M). The stop pin(L) and the pin(J) are and the ladder is down as shown in the picture.
- Page 14 (J),as shown in the figure. STEP 6：Before use，make sure all parts are locked again. Above is the ZT-F03 installation,and the installation of the ZT-F04， ZT-F05 is the same as that of ZT-F03. - 13 -...
-
Page 15: Cleaning,Maintenance And Troubleshooting
CLEANING,MAINTENANCE AND TROUBLESHOOTING 1.Before use, please make sure that the dock ladder is installed firmly. 2.Before use,make sure the dock ladder is firmly fixed. 3.When assembling ladders, do not tighten all the screws first; Lock them completely after the installation. 4.When checking the ladder, if some parts are slightly deformed, it can be corrected with a mallet or other tools. - Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
