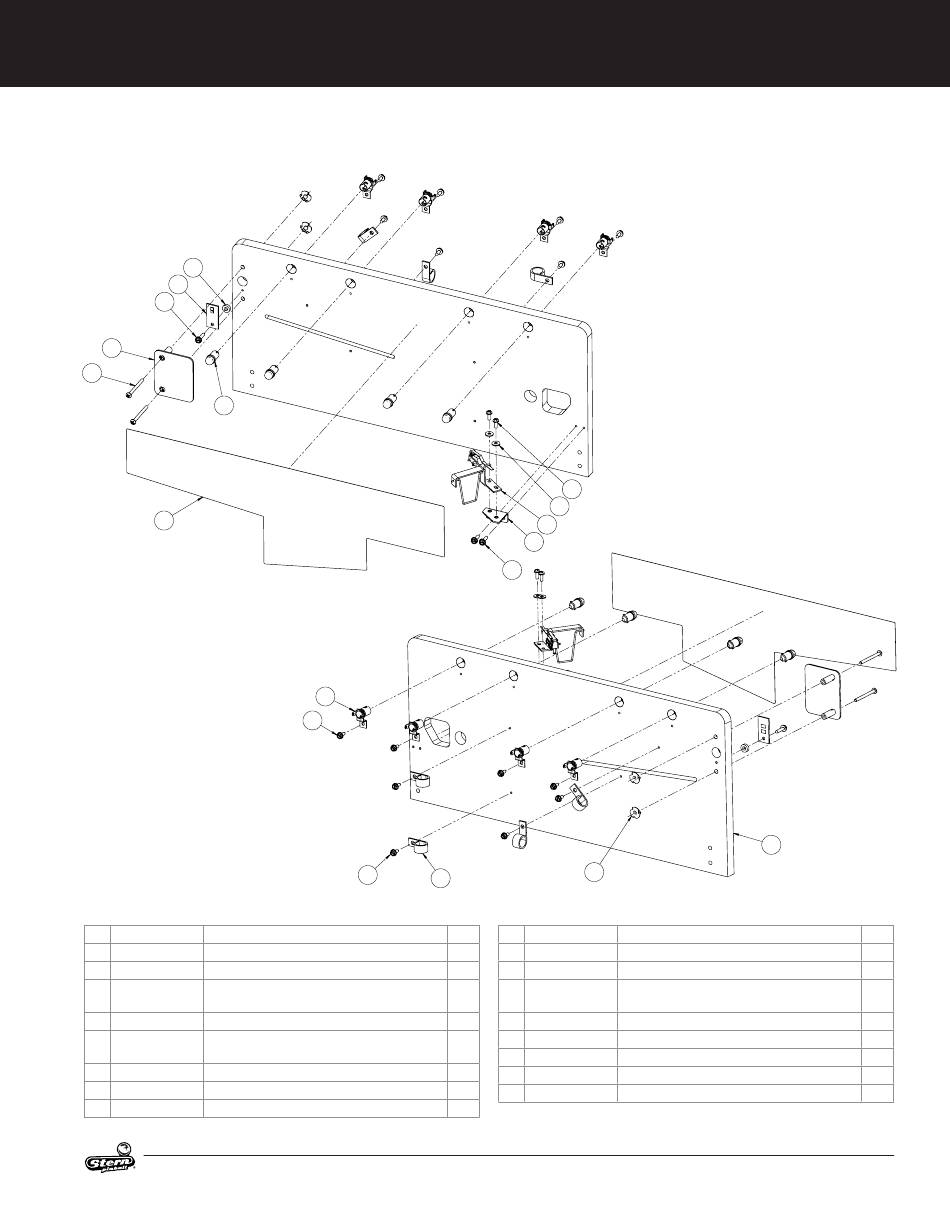

5.32 BACK PANEL ASSEMBLY

500-1159-01
13
14
15
21
23
4X 18
20
FRONT
ID PartNumber Description
1 525-9729-01 BACKPANEL - STRANGER THINGS PRO
2 240-5002-00 6-32 T-NUT
3 535-2281-00 GATE MOUNTING BRACKET, STRANGER
THINGS
4 234-5001-02 SCREW, #6 X 1/2" HWH
5 254-5000-19 NYLON SPACER - BLACK - 3/8 OD X .175 ID
X 1/8"
6 520-7000-00 SINGLE FLASH LED BOARD
7 234-5002-00 SCREW, #6 X 5/8" HWH
8 077-5223-00 SOCKET - 2-LUG, SHORT
™/© Netflix, Inc. 2019. Used with permission.
4X 16
4X 17
BACKPANEL ASSY. - PRO
500-1159-01
4X 17
19
4X
Qty
1
2
1
2
1
1
1
4
STRANGER THINGS PRO MANUAL 500-55Y1-01
12
11
5
3
4
2
REAR
9 234-5000-00 SCREW, #6 X 3/8" HWH
10 112-5034-08F DOUBLE LED, BAYONET BASE
11 040-5000-06 1/2" CABLE CLAMP
12 820-1142-10 DECAL #10, BACK PANEL, STRANGER
THINGS PRO
13 511-1128-19 PLASTIC ASSY. - BACKPANEL -19
14 237-5510-02 SCREW, 6-32 X 1-1/2" PPH MS BLACK
15 500-9936-04 GATE ASSEMBLY
16 242-5001-00 #6 WASHER
17 232-5201-00 SCREW, 6-32 X 3/8" PPH MS SEMS
