Mars 4K FAQ
【AS-220827001】

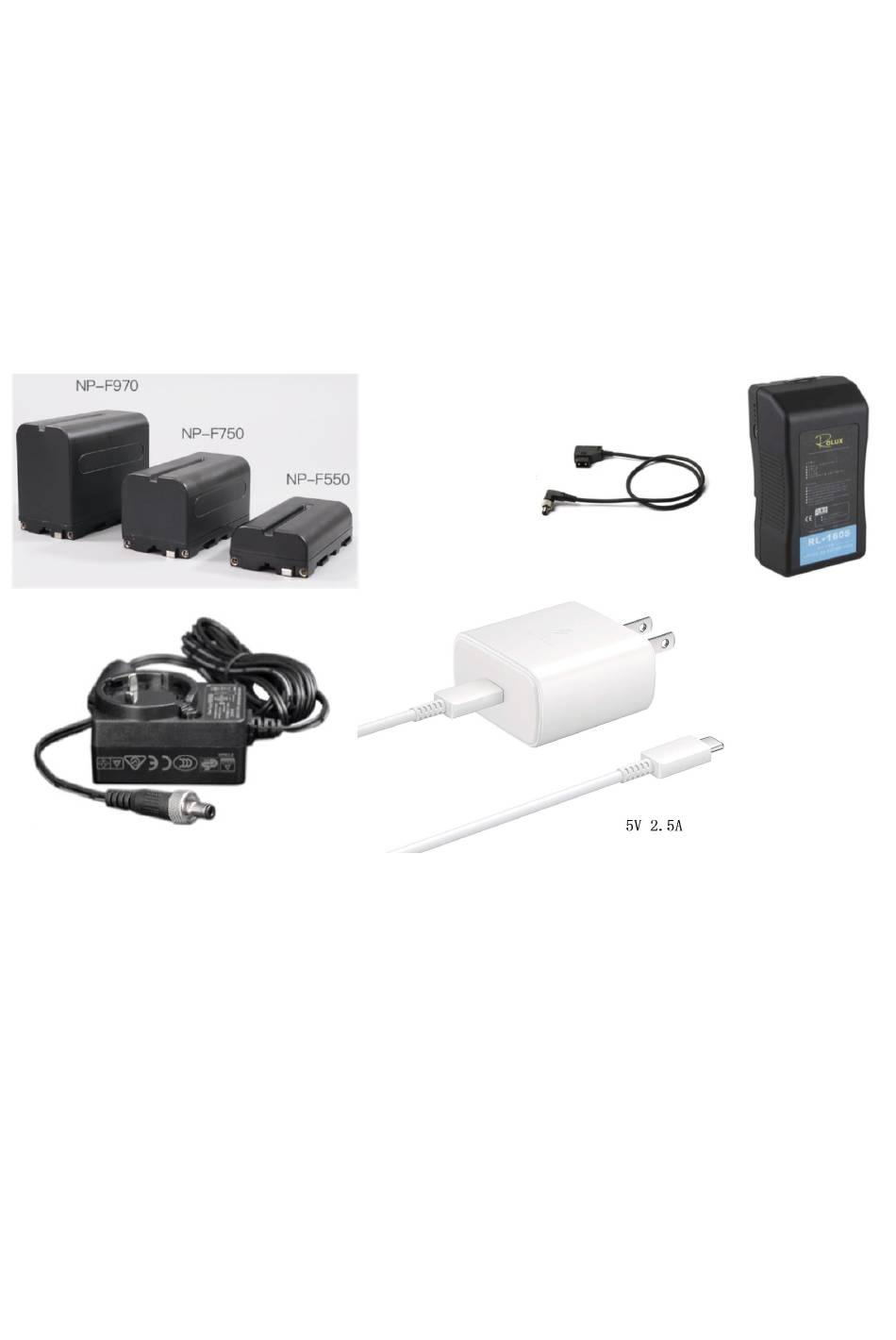

1. How many ways to power Mars 4K?
A： There are 3 ways able to powered Mars 4k, NP-F batteries, DC(6-16V), USB-C (5V 2.5A)
Note:
Power by USB-C the charger must be 5V 2.5A at least;
2. How to pair 1 transmitter to 2 receiver?
A:
Need to purchase a separate receiver , and have to be paired manually to transmitter, then will get 1
transmitter(TX) and 2 receiver(RX) mode.
Advertisement
Related Manuals for Hollyland Mars 4K
Summary of Contents for Hollyland Mars 4K
- Page 1 Mars 4K FAQ 【AS-220827001】 1. How many ways to power Mars 4K? A： There are 3 ways able to powered Mars 4k, NP-F batteries, DC(6-16V), USB-C (5V 2.5A) Note: Power by USB-C the charger must be 5V 2.5A at least;...
- Page 2 It is suggested to turn off the data cellular settings under your phone settings for the first time. 4. Why does the camera record in 4K the screen will turn black when connected to Mars 4K? Some cameras such as SONY A7M3, the camera screen will be off during the recording of 4K, because the camera only has one video output channel when recording 4K, so when output 4K from HDMI the camera screen will be off.
- Page 3 5. Does Mars 4K able to transmit fractional frame rates such as 23.98, 29.97, 59.94? 1. Fractional frame rate video format input from HDMI, video format will be recognized as integer frame rate（such as input 23.98 will be 24） 2. Fractional frame rate video format input from SDI, whether HDMI or SDI of RX will be able to output fractional frame rate video (such as input 23.98 to SDI of TX, HDMI/SDI of RX output also is 23.98)
- Page 4 Unable to use APP, in the case of 1 Transmitter to 2 receive mode 9. Mars 4K how to enter scene mode, and how to use it? Long-press the rocker on the transmitter to enter the menu, and find 【Scene Mode】 function. There are 3 scene mode for Mars 4K.
- Page 5 10. Is Mars 4K fan adjustable? Both Mars 4K transmitter and receiver have built-in fans for heat dissipation, and the fan can be adjusted. There are two fan settings, automatic mode and silent mode. In silent mode, the fan is still turned on, but the noise of the fan will be smaller.
- Page 6 12. How to connect Mars 4K to PC to live streaming? The transmitter is connected to the camera, the receiver is connected to the video capture card through a standard HDMI/SDI cable, and the capture card is then connected to the PC USB port to stream live on the computer.
