- Page 1 LARK M2 User Manual V1.0...
-
Page 3: Version Overview

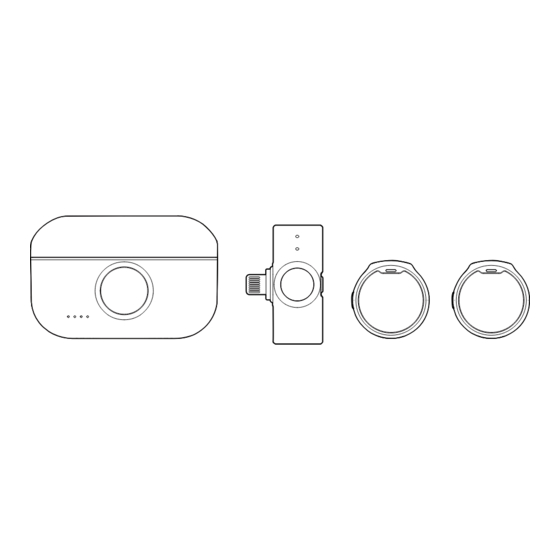

Version Overview LARK M2 Duo (Lightning) LARK M2 Duo (USB-C) - Page 4 Version Overview LARK M2 Duo (Camera)
- Page 5 Version Overview LARK M2 Combo * The quantity of the items depends on the product configuration.
-
Page 6: Product Overview
Product Overview Mobile Version RX (USB-C/Lightning） Charging Case Camera Version Charging Case... - Page 7 Product Overview TX：Transmitter Built-in Microphone Status Indicator Clip Magnet Power/Noise Cancellation /Pairing Button Charging Contacts Mobile Version RX: Receiver (Lightning/USB-C) USB-C Port Noise Cancellation/ TX1 Status Indicator Pairing Button TX2 Status Indicator *The plug has Lightning and USB-C versions...
- Page 8 Product Overview Camera Version RX: Receiver Status Indicator Volume Knob 3.5mm Audio Output Jack USB-C Port Back Clip Power Button Mode Switching/ Pairing Button Volume/Mode Indicator Charging Contacts...
-
Page 9: Product Usage
Product Usage ( Mobile Version ① The preferred placement for TX is at the collar. If speaking with a loud volume, you can choose an upper chest position. You can wear it using either the back clip or clip magnet. Place the clip magnet on the back of the collar, Clip the back clip onto the collar, and secure TX and secure TX on the front of the collar with the... - Page 10 Product Usage ( Mobile Version ② A magnet necklace for the clip magnet is included, allowing you to secure TX around your neck. In order to achieve the best possible sound quality during recording, it’s important to place the TX correctly. Make sure that the microphone is not covered by any cloth.
- Page 11 Product Usage ( Mobile Version ① Plug RX (Lightning) into phone ② Plug RX (USB-C) into phone...
- Page 12 Product Usage ( Mobile Version ③ Charge your phone through the RX for simultaneous charging and usage...
- Page 13 Product Usage ( Camera Version Connect RX to camera Attach the RX to the camera’s hot shoe/cold shoe using the back clip; Connect the RX’s 3.5mm audio output port to the camera’s 3.5mm audio input port using a 3.5mm TRS to TRS cable;...
-
Page 14: Indicator Description
Indicator Description TX Indicator Lights Description Status Blue light flashing TX and RX not connected Blue light steady TX and RX connected Green light steady (in use) Noise Cancellation ON Pink light steady TX updating Orange light steady TX charging Green light steady (while charging) TX fully charged Red light flashing slowly... - Page 15 Indicator Description Blue status indicator light steady TX and RX connected Green status indicator light steady (in use) Noise Cancellation ON Pink status indicator light steady RX updating Orange status indicator light steady RX charging Green status indicator light steady RX fully charged (while charging) Red status indicator light flashing slowly...
-
Page 16: Automatic On/Off
Product Usage Automatic On/Off Take the TX and RX out from the charging case to turn on automatically. Place the TX and RX back in the charging case to turn off automatically. Manual On/Off Press and hold the TX power button, or the Camera Version RX power button for 3 seconds to turn on/off. Press and hold the TX power button for 3 seconds Press and hold the RX power button for 3 seconds... - Page 17 Product Usage Noise Cancellation Manual Pairing Press the noise-cancellation button on TX to turn With the TX off, press and hold the TX pairing the function on or off. When noise cancellation is button for 6 seconds to start pairing. The TX status on, the status indicator on TX turns green.
- Page 18 Product Usage Manual Charging With the camera version RX on, hold the pairing When the status indicator on TX turns into slow button for 3 seconds to start pairing. flashing red, you can charge the TX using the magnetic charger. Solid orange indicates charging in progress. Solid Green indicates charging completed and the light will go off 30 minutes later.
- Page 19 Product Usage Volume Adjustment (Camera Version RX Only) Video Recording Control The factory default volume is set at medium level, with While shooting with your phone, double-press the three levels available: high, medium, and low. button on TX to start or stop video recording. Turn the volume knob clockwise to turn the volume up.
- Page 20 Only pair one RX to the TX during recording to Connected to a camera: The blue light stays on, ensure proper operation of the LARK M2 combo version. indicating stereo mode; the green light stays on, indicating mono mode.
- Page 21 Lark Sound Lark Sound The Lark Sound app is available for download on The Lark Sound app is a perfect match for Hollyland Xiaomi, Huawei, and Apple App Stores. You can also wireless microphones. With the app, you'll have access scan the QR code below to download the app.
-
Page 22: Specifications
Specifications Mic Sensitivity -37 dBV ± 2dB @ 1 KHz, 94dB SPL Wireless Modulation Mode GFSK 2 Mbps Wireless Transmission 2.4 GHz Adaptive Frequency Hopping (AFH) Mobile Version: Up to 1000ft (300m) for LOS/200ft (60m) for NLOS Transmission Range Camera Version: Up to 1000ft (300m) for LOS/130ft (40m) for NLOS Mic Polar Pattern Omnidirectional Frequency Response... - Page 23 Specifications TX: About 10 hours Camera Version RX: About 9 hours Operating Time Mobile Version Charging Case: > 2 times charging for 2 TX at the same time Camera Version Charging Case: > 3 times charging for all TX and RX at the same time TX: About 1.5 hours Camera Version RX: About 1.5 hours Charging Time...
- Page 24 Support If you encounter any problems in using the product or need any help, please contact Hollyland Support Team via the following ways: Hollyland User Group HollylandTech HollylandTech HollylandTech support@hollyland.com www.hollyland.com Statement: All copyrights belong to Shenzhen Hollyland Technology Co., Ltd. Without the written approval of Shenzhen Hol- lyland Technology Co., Ltd., no organization or individual may copy or reproduce part or all of any written or illustra-...
