14 FT 2-PIECE OCTAGON ARM INSTALLATION
These 3 kits are designed for a 1601 barrier gate operator (with or without 1473 board convenience open) or a 1603
auto spikes operator. It CANNOT be used with a 1602 operator. Provides a built in reversing edge and red/green LEDs
on a 14 ft 2-Piece octagon arm. When the arm is raised, LEDs turn GREEN, and turns RED when lowered and
remains RED in the down position. Arm will reverse if lowering and a obstruction is encountered. Note: DO NOT
operate arm without a normally functioning reverse edge installed.

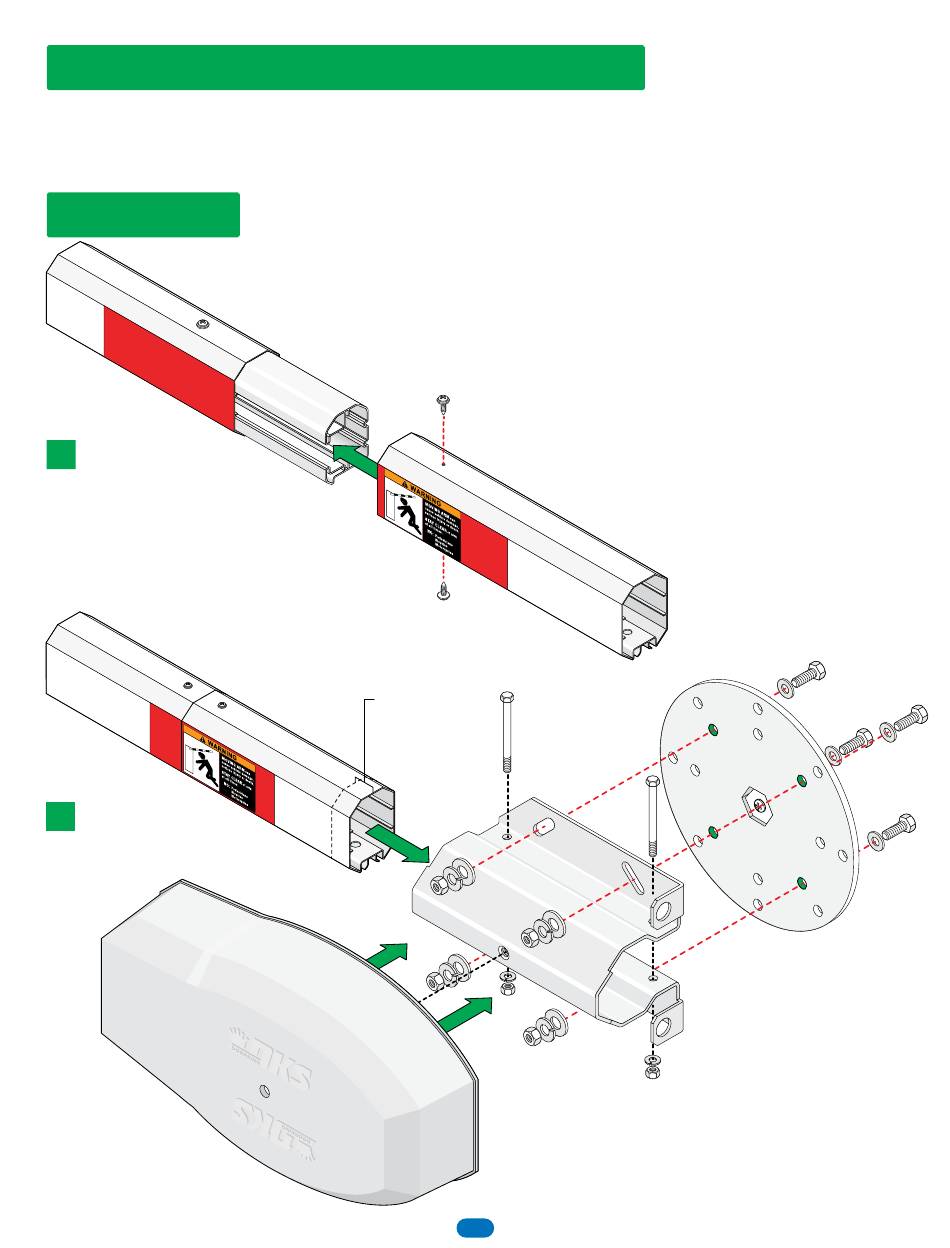

Installation
7 F
t A
r m
1
Connect Arms
Together
Drawings NOT to scale
1 4
F t A
r m
2
Install Arm
A r m
C o
v e r
1601-269-A-9-19
C o
u p
l e r
Allow arm to protrude
about 1" past the end
of arm bracket. Make
sure arm cover fits
over arm.
Secure arm to coupler using self-tapping screws
through pre-drilled holes in arm.
7 F
t A
r m
A r m
B r a
c k e
t
1
DoorKing Part Numbers
1601-567
14 Ft 2-Piece Octagon Arm Kit
1601-534
Octagon Arm Power Kit
1601-242
Octagon Arm Bracket Kit
H u
b
Hub MUST already be installed
on gate operator.
See 1601 Installation/Owner's
manual for correct hub
installation.
Advertisement
Related Manuals for DoorKing 1601-567
Summary of Contents for DoorKing 1601-567
- Page 1 DoorKing Part Numbers 14 FT 2-PIECE OCTAGON ARM INSTALLATION 1601-567 14 Ft 2-Piece Octagon Arm Kit These 3 kits are designed for a 1601 barrier gate operator (with or without 1473 board convenience open) or a 1603 1601-534 auto spikes operator. It CANNOT be used with a 1602 operator. Provides a built in reversing edge and red/green LEDs Octagon Arm Power Kit on a 14 ft 2-Piece octagon arm.
- Page 2 Install LED/Reverse Edge Slide LED/Reverse Edge on hanging track as shown. Tip: Liquid soap will help reverse edge slide on easier. Octagon Arm LED/Reverse Edge Install End Cap Push a screwdriver through the hole in cap to release spring while pushing cap on. Keep pushing cap on until a “CLICK”...
- Page 3 A r m v e r DO NOT operate arm without a normally functioning reverse edge installed. 120 S. Glasgow Avenue ® Copyright 2019 DoorKing , Inc. All rights reserved. Inglewood, California 90301 U.S.A. 1601-269-A-9-19...
- Page 4 Older Arm Cover Older arm cover will need to have the reverse edge cut out of the existing cover. Only one side of the cover will need to be cut out depending on which side the arm is mounted on. Use this template as a guide to remove material from the cover.
