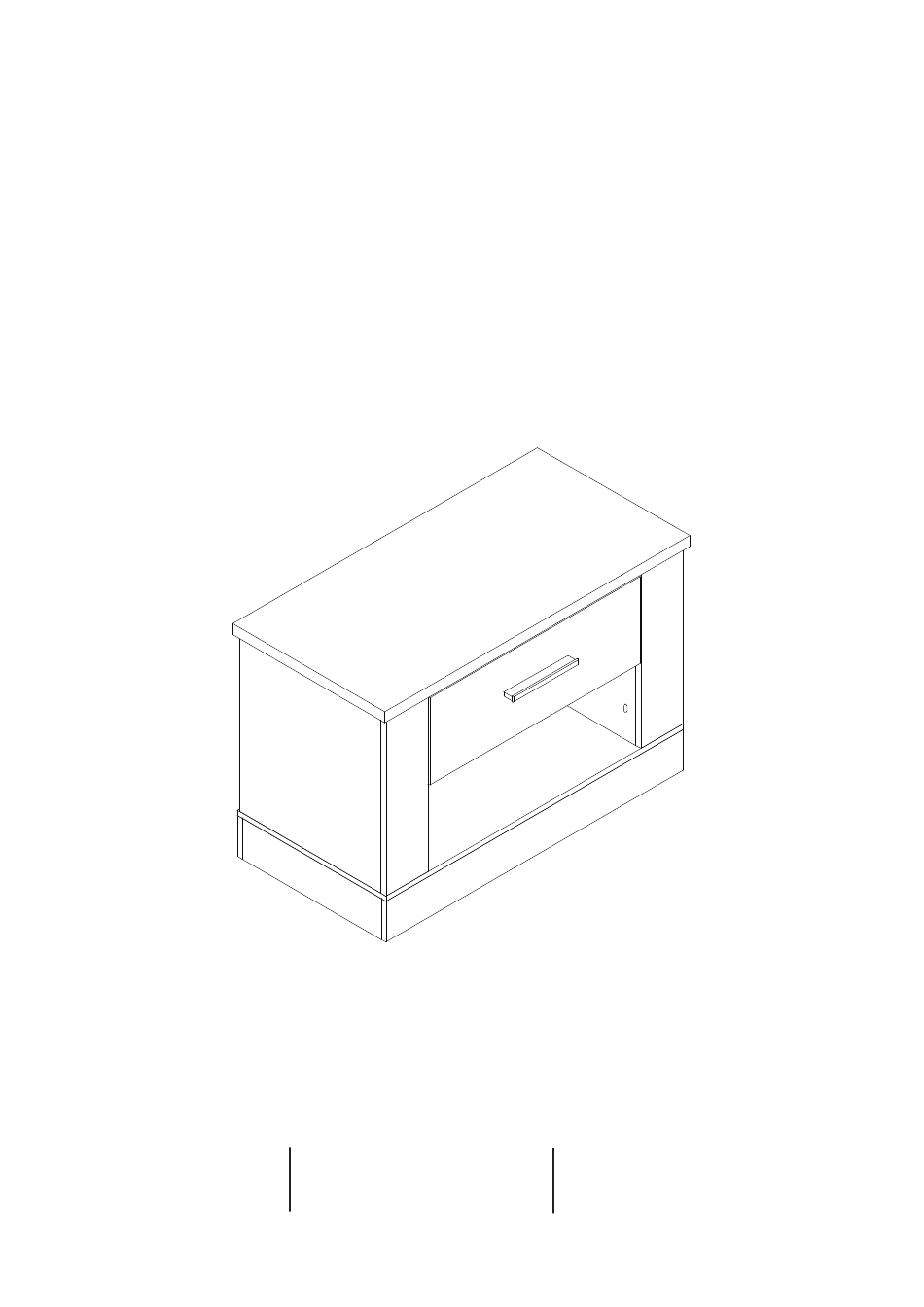

- Page 1 Item No. : S0001 Contact Us : service@anmytek.com Watson Modern Farmhouse Entry Bench with 1 Drawer ASSEMBLY AND CARE GUIDE 1 HOUR 2 PEOPLE 1 x 1 m ASSEMBLY TIME REQUIRED FOR ASSEMBLY FLOOR SPACE REQUIRED Contact Us : service@anmytek.com...
-
Page 2: Safety Precautions
Item No. : S0001 Contact Us : service@anmytek.com SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present beforeyou start the assembly of your furniture. A Philips head screwdriver (not included) is required for the assembled of this product. -
Page 3: Parts List
Item No. : S0001 Contact Us : service@anmytek.com 6*30mm 350mm 4*35mm 350mm 6*35mm 15*9.5mm 4 x16 6 x1 5 x1 1 x35 2 x35 3 x13 Cam bolt Cam lock Wooden dowel Screw Rail Rail 190mm 4*12mm 350mm 3*16mm 350mm... -
Page 4: Assembly Diagram
Item No. : S0001 Contact Us : service@anmytek.com ASSEMBLY DIAGRAM AFTER SALES SUPPORT If you have any general enquiries or require spare parts for this product, please feel free to contact us via the following email: Email: service@anmytek.com You can contact us for support at any time. We'll answer you in 24hrs. -
Page 5: Assembly Steps
Item No. : S0001 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 1. Attach rail (5) to panel (D) using 2 x screws (9) as per diagram. Attach rail (6) to panel (C) using 2 x screws (9). Tighten with a screwdriver. - Page 6 Item No. : S0001 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 3. Attach assembled unit (E) to part (H) using 2 x cam bolts (1) and 2 x cam locks (2). Then attach assembled unit (D) to part (H) using 2 x cam bolts (1) and 2 x cam locks (2).
- Page 7 Item No. : S0001 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 5. Slide back panel (F) and part (G) into grooves as per diagram. STEP 6. Attach top panel (A) to assembled unit using 4 x cam bolts (1) and 8 x wooden dowels as shown.
- Page 8 Item No. : S0001 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 7. Attach 3 x part (J) to 2 x part (K) using 12 x cam bolts (1) and 12 x cam locks (2) as per diagram. Tighten with a screwdriver.
- Page 9 Item No. : S0001 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 9. Attach rail (7) to part (L) using 2 x screws (9). Attach rail (8) to part (N) using 2 x screws (9). Attach part (M) to part (L), (N) using 4 x screws (3).
- Page 10 Item No. : S0001 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 11. Slide drawer into position. STEP 12. Final assembly. Contact Us : service@anmytek.com...
