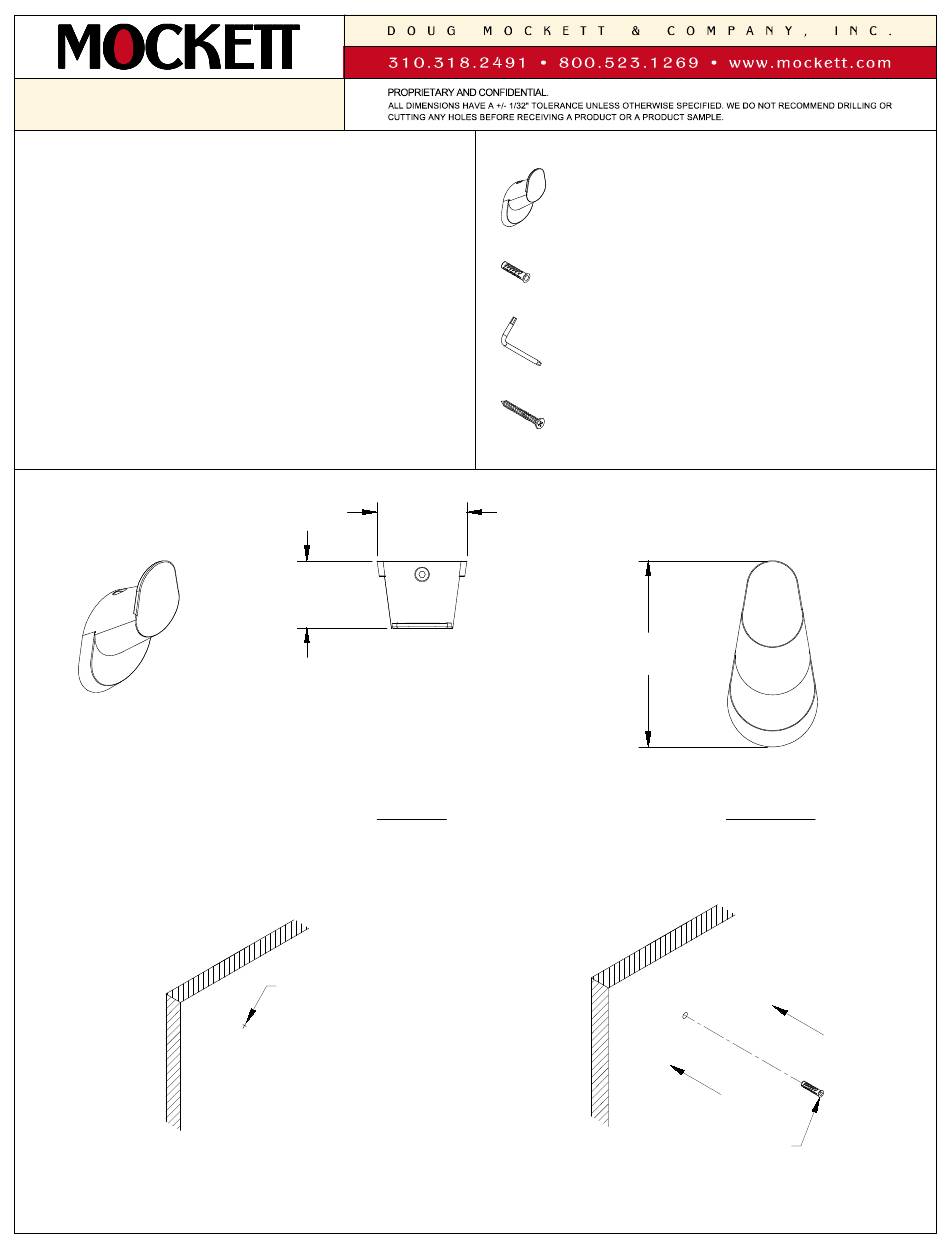

CH69
SPECIFICATIONS
·
Weight capacity is 5 lbs. MAX.
·
Recommend installing into stud.
1
Determine the position and location of the part on the work
surface. Mark the mounting position for the mounting
hardware and drill a 5.00mm [3/16"] DIA. pilot hole for
drywall or a 2.00mm [3/32"] DIA. pilot hole for stud
installation.
2024.05.15
52.50mm
[2-1/16"]
40.00mm
[1-9/16"]
TOP VIEW
PILOT HOLE
TABLE OF CONTENTS
108.00mm
[4-1/4"]
2
Place plastic anchor into 5.00mm [3/16"] diameter pilot
hole.
1
. . . . . . . . . . . . 1X CH69
. . . . . . . . 1X Plastic Anchor
. . . . . . . . . . . 1X Hex Key
. . . . . . . . . . 1X 1-21/32"
No. 7 Wood Screw
FRONT VIEW
Plastic Anchor
(For drywall
use only)
Advertisement
Related Manuals for Mockett CH69
Summary of Contents for Mockett CH69
- Page 1 TABLE OF CONTENTS · Weight capacity is 5 lbs. MAX... . . 1X CH69 · Recommend installing into stud..1X Plastic Anchor .
- Page 2 1-21/32" No.7 Mounting Wood Screw Base Use hex key to loosen set screw. Tilt CH69 down to release Use a 1-21/32" No. 7 wood screw to secure mounting base mounting base. to work surface. Secure the part using set screw and hand-tighten with the hex key.
