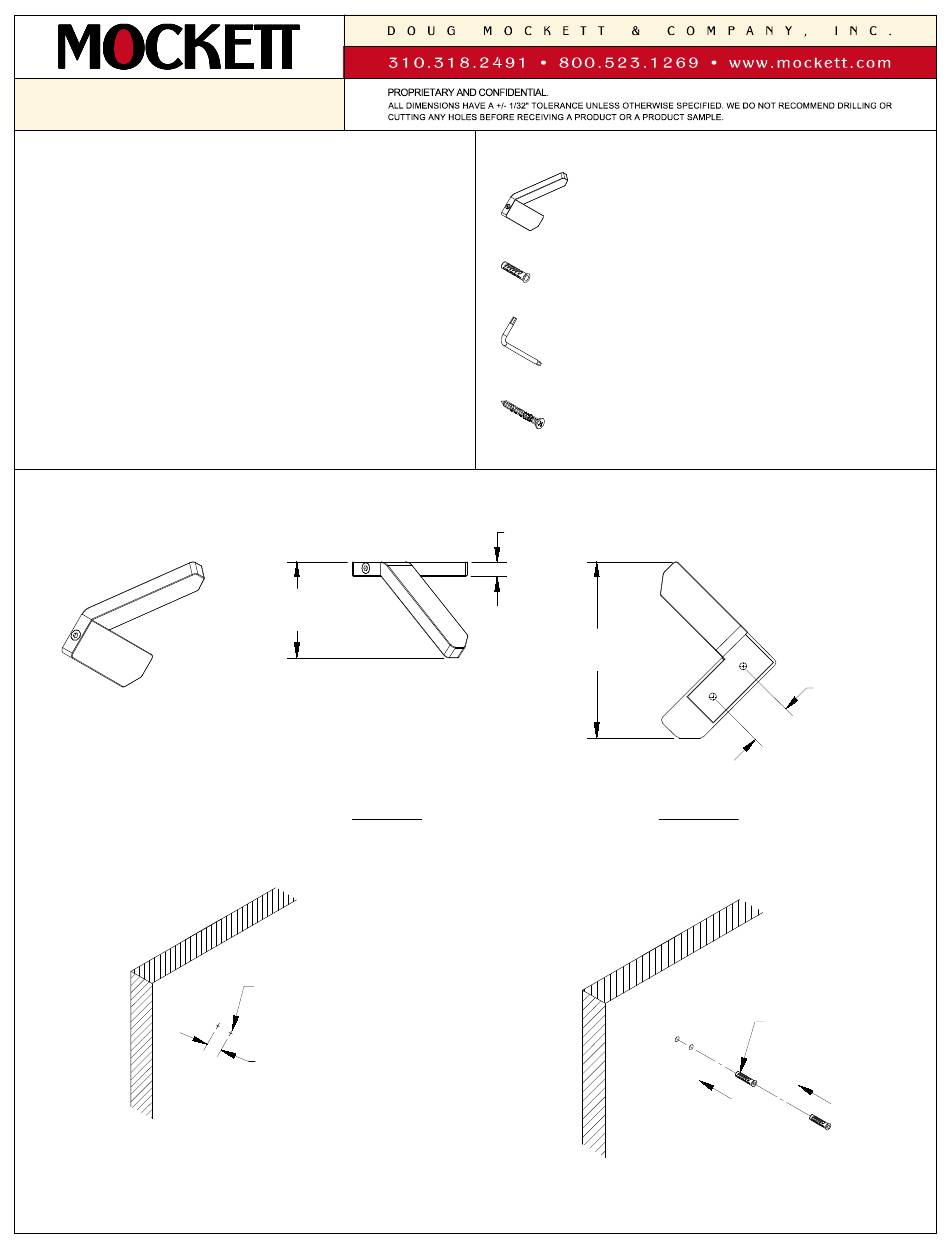

CH68
SPECIFICATIONS
·
Weight capacity is 5 lbs. MAX.
·
Recommend installing into stud.
1
Determine the position and location of the part on the work
surface. Mark the mounting position for the mounting
hardware and drill (2) 5.00mm [3/16"] DIA. pilot holes for
drywall or (2) 2.00mm [3/32"] DIA. pilot holes for stud
installation.
2024.05.15
66.00mm
[2-19/32"]
TOP VIEW
2X
PILOT HOLE
28.00mm C.T.C.
[1-3/32"]
±1.00mm
TABLE OF CONTENTS
10.00mm
[13/32"]
122.00mm
[4-13/16"]
2
Place (2) plastic anchors into (2) 5.00mm [3/16"] diameter
pilot holes.
1
. . . . . . . . . . . . 1X CH68
. . . . . . . . 2X Plastic Anchor
. . . . . . . . . . . 1X Hex Key
. . . . . . . . . . 2X 1-21/32"
No. 7 Wood Screw
28.00mm C.T.C.
[1-3/32"]
±1.00mm
REAR VIEW
2X
Plastic Anchor
(For drywall
use only)
Advertisement
Related Manuals for Mockett CH68
Summary of Contents for Mockett CH68
- Page 1 TABLE OF CONTENTS · Weight capacity is 5 lbs. MAX... . . 1X CH68 · Recommend installing into stud..2X Plastic Anchor .
- Page 2 CH68 No.7 Wood Screw Cover Use hex key to loosen set screw and remove cover of the Use (2) 1-21/32" No. 7 wood screws to install the CH68 CH68. onto the work surface. Align cover to CH68. Use hex key to reinstall cover.
