Daewoo SPOTLESS HURRICANE FLR00163 User Manual

Daewoo SPOTLESS HURRICANE FLR00163 User Manual

Floor washer and vacuum cleaner

Advertisement

Quick Links

Spotless Hurricane Floor Washer & Vacuum
Model No. FLR00163
User Manual
1
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPOTLESS HURRICANE FLR00163 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daewoo SPOTLESS HURRICANE FLR00163

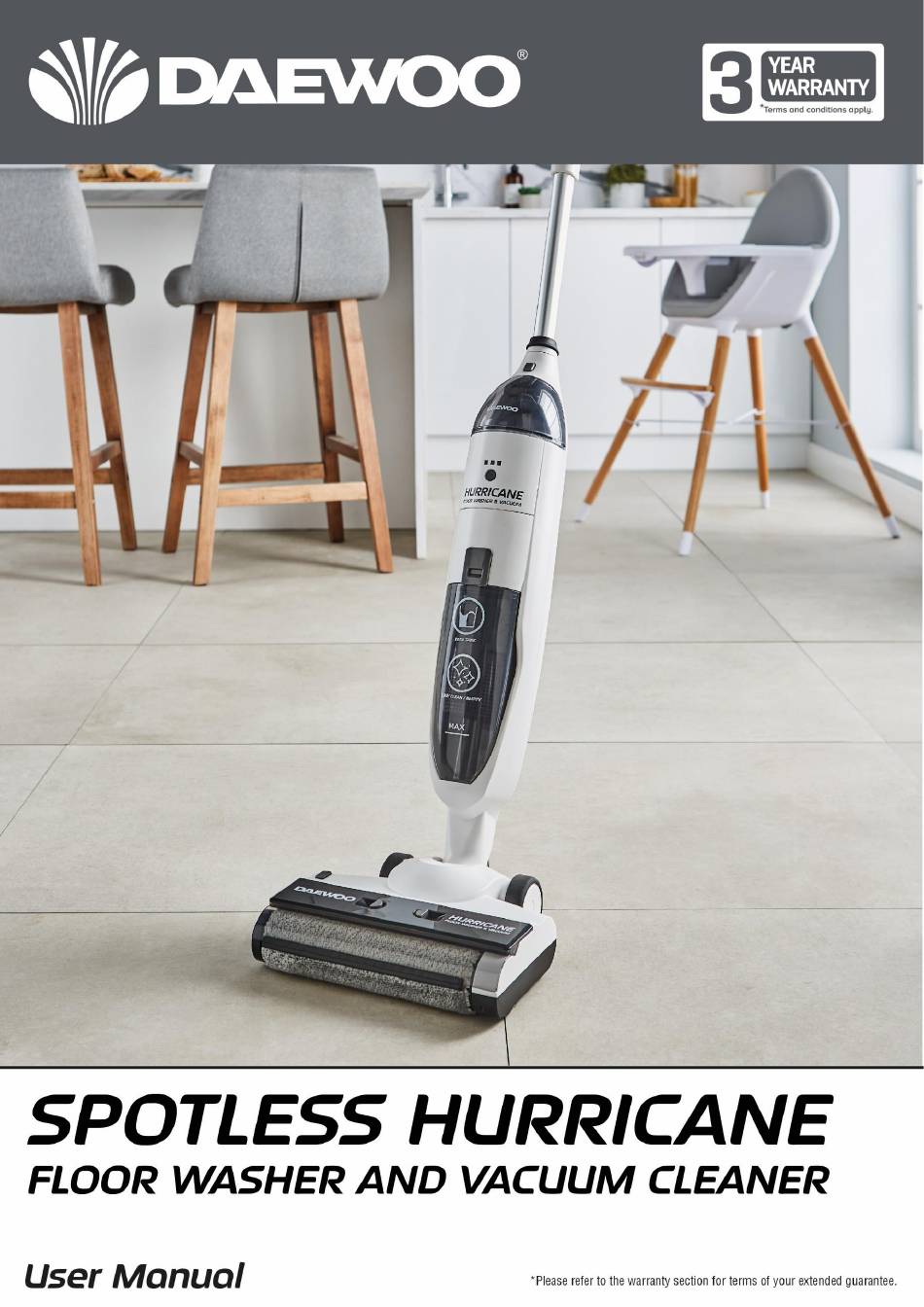

  • Page 1 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
  • Page 2 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Explanation of Symbols Description of Parts & Accessories Before first use of Your Floor Washer Attaching the Handle Charging the Battery Filling the Clean Water Tank...
  • Page 3 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
  • Page 4 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual DO NOT leave the appliance unattended whilst connected • to the mains supply. DO NOT use this appliance outdoors. • It is imperative to unplug the power cord after the •...
  • Page 5 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual cord, use the handle provided. Ensure fingers and other objects are never placed in any • part of the vacuum cleaner. Clothing or hair may become trapped if the vacuum is used improperly. Keep hair, loose clothing, jewellery, fingers and all parts of •...
  • Page 6 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.
  • Page 7 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Description of Parts & Accessories 1. Handle 2. Spray Trigger & Indicator 3. Roller & Vacuum On/Off button 4. Water Tank/Handle Release 5. Water Tank 6. Charging Indicators 7. Vacuum Only On/Off 8.
  • Page 8 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Attaching the Handle Insert the Handle (1) into the top of the cleaner, press the Handle Release (4) button as the handle is inserted ensuring that the handle fits fully inside the top of the cleaner.
  • Page 9 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Filling the Clean Water Tank (5) 1. Remove the Water Tank (5) by pressing the Water Tank Release button (4) and removing the tank towards you. 2. Lift the filling cap up and fill the tank with warm water (max.
  • Page 10 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Vacuum Only Mode Press the Vacuum Only On/Off button (7 arrowed right) to operate just the vacuum mode without the roller brush. The cleaner will power up in low power mode, press the Vacuum Only On/Off button (7) again to enable the high power suction mode.
  • Page 11 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Cleaning the Filter Assembly Hepa Filter 4. Pour out any dirty water collected in the Dust Compartment (10). 5. Dismantle the filter assembly Float Holder as follows: 6. Rotate the Hepa Filter at the top of the filter in the direction of the arrow shown and lift off.
  • Page 12 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Auto Cleaning In normal use the Roller (12) will self clean and generally will not require cleaning. However, if after cleaning a particularly heavy soiled surface the Roller (12) will require removing and cleaning as below: Removing the Roller (12) for Cleaning 1.
  • Page 13: Troubleshooting Guide

    Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual NOTE: DO NOT use the floor cleaner with the Roller (12) not fitted otherwise permanent damage may occur to the appliance. Care and Maintenance of Your Floor Washer • Always disconnect the cleaner from the mains charger before cleaning. •...
  • Page 14 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Technical Specification Model Number FLR00163 Mains Charger Input: AC 100-240V ~ 50/60Hz 0.5A max. Output: 27V DC 0.5A 13.5W Vacuum Rating 22.2V 200W Battery 22.2V 2200mAh Li-Ion (6 cells) Run Time Up to 30 minutes Unpacked Weight (approx.) 3.6 Kgs...
  • Page 15 Spotless Hurricane Floor Washer & Vacuum Model No. FLR00163 User Manual Recycling Information Disposal of the Packaging Dispose of paper and cardboard in appropriate paper re-cycling facilities. Dispose of recyclable plastics in appropriate plastic re-cycling facilities. Dispose of non-recyclable plastics in the appropriate plastics collection service. Disposal of the Product You should now recycle your waste electrical goods and in doing so help the environment.
  • Page 16: Warranty

    As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee. Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty vacuum should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
