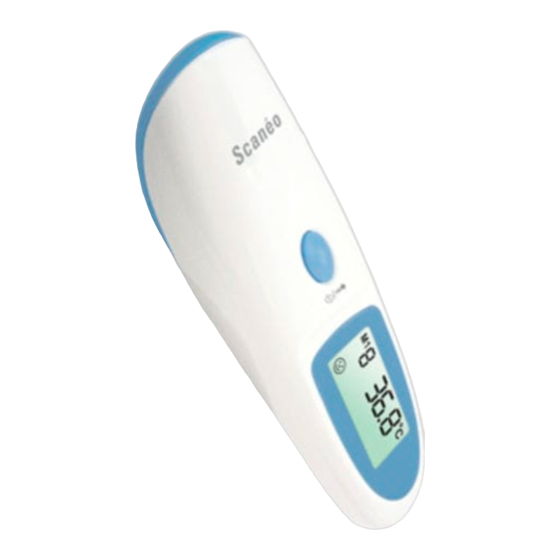

Infrared Forehead Thermometer
TS12
EN
RoHS REACH
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan
Importer
Distributor
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your forehead thermometer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avita TS12
Summary of Contents for Avita TS12
- Page 1 Infrared Forehead Thermometer TS12 RoHS REACH MDSS GmbH Schiffgraben 41 30175 Hannover Germany AViTA Corporation 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan Importer Distributor INSTRUCTION MANUAL Please read this instruction manual carefully...
-
Page 2: Table Of Contents
Contents Introduction ........................1 Important Information before Use ................2 Product Identification ..................... 4 Description of LCD Display ................... 5 Measuring Body Temperature on the Forehead ..........6 Memory Function ......................7 Cleaning and Disinfecting ..................... 7 Error Codes .......................... 9 Technical Specification .................... -
Page 3: Introduction
Introduction Intended Use This thermometer is intended for home use and the measurement of human body temperature in people of all ages. This thermometer takes temperatures in seconds by measuring the heat generated on the forehead. Type of Use/ Reuse Multiple patient multiple use Intended User The Patient is an intended operator. -
Page 4: Important Information Before Use
Important Information before Use When using this product, please be sure to follow all the notes listed below. Any action against these notices may cause injury or affect the accuracy. 1. Do not disassemble, repair, or remodel the thermometer. 2. Be sure to clean the thermometer lens each time after usage. 3. - Page 5 19. If you would require any assistance during setting up, using or maintaining, please contact the manufacturer. 20. Avoid using the device near an operating cell phone or microwave oven.
-
Page 6: Product Identification
Product Identification Sensor Tip with Lens Memory Button Battery Cover Power/ Measure Button LCD Display... -
Page 7: Description Of Lcd Display
Description of LCD Display Memory symbol Smiling face Measurement<38°C(< 100.4°F) Frowning face Measurement≥38°C(≥100.4°F) Low battery Warning Scan in Progress Fahrenheit Scale Celsius Scale Degrees of Temperature... -
Page 8: Measuring Body Temperature On The Forehead
Measuring Body Temperature on the Forehead The cap should be in position on the probe nozzle. Press the Power/Measure button. All screen data will display on screen. Then the measurement mode flashes on screen. If the icon shows ear mode, please press the Power/Measure button again to change to forehead mode. -
Page 9: Memory Function
Memory Function The device can recall up to 10 measurements Press the “Memory Recall” button. The first reading displayed is the latest measurement stored in memory. Continue to press the “Memory Button” to view the next previously stored measurement. Cleaning and Disinfecting For home use device disinfection, 75% Ethanol Isopropyl alcohol (available in the pharmacy) can be used. - Page 10 Battery Installation When the batteries get weak, the battery warning symbol appears . It is still possible to measure temperature. The batteries must be replaced. When the battery symbol flashes and “Lo” appears in the display, the batteries must be replaced. If the batteries are too flat, then the thermometer will switch off automatically.
-
Page 11: Error Codes
Error Codes When a malfunction or incorrect temperature measurement occurs, an error message will appear as described below. LCD Display Cause Solution Operate the The temperature measured thermometer only is higher than between the specified 43°C (109.4°F) temperature ranges. If necessary, clean the sensor tip. -
Page 12: Technical Specification
Technical Specification • Range of Measurement : Human Body: 34°C – 43°C (93.2°F – 109.4°F) • Measuring accuracy : Human Body: 34°C – 43°C (93.2°F – 109.4°F) ±0.2°C (0.4°F) Out of range ±0.3°C (0.5°F) • Operating environment : 15°C – 40°C (59°F –... -
Page 13: Emc Tables
EMC Tables TS12 is intended for use in the electromagnetic environment specified below. The customer or the user of TS12 must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions Professional healthcare... - Page 14 requested from supplier using the contact information provided in this manual. However, it is advisable to keep the electromechanical aerosol equipment at an adequate distance of, at least, 0.5 m from mobile phones or other RF communications transmitters to minimise possible interference.
-
Page 15: Explanation Of Symbols
Explanation of Symbols The CE marking with the Registration Number of the Notified Body. This denotes the compliance of European Medical Device Directive 93/42/EEC Medical Device Manufacturer Authorized representative in the European Community Date of manufacture (YYYY-MM-DD or YYYY-MM) Batch code (YYMMWWWW) Serial number (YYMWWWXXXXX) - Page 16 Humidity limitation Atmospheric pressure limitation Caution Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS RoHS Directive 2011/65/EU.
- Page 17 This product meets the basic safety and essential performance requirements indicated in the IP22 conditioning test (protection against solid foreign objects of 12.5mm ∅ and greater and against vertically falling water drops when enclosure tiled up to 15°) The empty, completely flat batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers.
