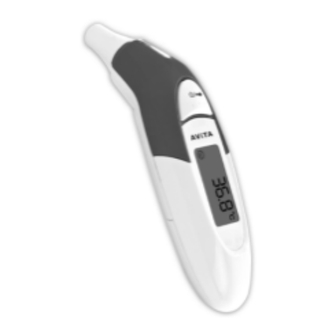

Infrared Ear Thermometer
TS21
EN
RoHS REACH
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan, China
China, AViTA(WUJIANG)
Importer
Distributor
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your Infrared thermometer
Advertisement
Table of Contents
Related Manuals for Avita TS21
Summary of Contents for Avita TS21
- Page 1 Infrared Ear Thermometer TS21 RoHS REACH MDSS GmbH Schiffgraben 41 30175 Hannover Germany AViTA Corporation 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan, China China, AViTA(WUJIANG) Importer Distributor INSTRUCTION MANUAL Please read this instruction manual carefully...
-
Page 2: Table Of Contents
Contents Introduction ........................1 Important Information before Use ................2 Product Identification ..................... 4 Description of LCD Display ................... 5 Battery Installation ......................6 Setting °C/°F........................7 Memory Function ......................7 Measuring Body Temperature in the Ear ..............8 Cleaning and Disinfecting ..................... 9 Error Codes ........................ -
Page 3: Introduction
Introduction Intended Use This thermometer is intended for home use and the measurement of human body temperature in people of all ages. This thermometer takes temperatures in seconds by measuring the heat generated by the ear canal. Type of Use/ Reuse Multiple patient multiple use Intended User The Patient is an intended operator. -
Page 4: Important Information Before Use
Important Information before Use When using this product, please be sure to follow all the notes listed below. Any action against these notices may cause injury or affect the accuracy. Do not disassemble, repair, or remodel the thermometer. Be sure to clean the thermometer lens each time after usage. Avoid direct finger contact with the lens. - Page 5 time you question the accuracy of temperature measurements, please contact an authorized distributor for sending calibration services, additional cost may apply for return shipping fee. CAUTION - Avoid potential allergic reactions, please avoid the front of scanner in direct contact to patient's wound. CAUTION - Please keep this device away from pets, pests, and children.
-
Page 6: Product Identification
Product Identification Probe Power/ Measurement Button LCD Display Memory Button Battery door... -
Page 7: Description Of Lcd Display
Description of LCD Display Measurement in progress Temperatuer unit Celcius Temperatuer unit Fahrenheit Degree of temperature Low battery symbol Memory symbol and sets of records Smiling Face Frowning Face... -
Page 8: Battery Installation
Battery Installation When the batteries get weak, the battery warning symbol appears . It is still possible to measure temperature. The batteries must be replaced. When the battery symbol flashes and “Lo” appears in the display, the batteries must be replaced. If the batteries are too flat, then the thermometer will switch off automatically. -
Page 9: Setting °C/°F
Setting °C/°F Changing the Measurement Unit (°C/°F) Press the “Power & Measure Button” to turn on the unit. If you wish to change the temperature scale of your thermometer, turn your thermometer on and then press the “Power & Measure Button”... -
Page 10: Measuring Body Temperature In The Ear
Measuring Body Temperature in the Ear Press the Power/Measure button for 1 second to switch the thermometer on. All screen data will display on screen. Then the measurement mode flashes on screen. Then wait for beep sound to let you know the appliance is ready and followed by last temperature reading. -
Page 11: Cleaning And Disinfecting
Cleaning and Disinfecting For home use device disinfection, 75% alcohol (available in the pharmacy) can be used. • Probe and Tip Clean the probe and tip before and after each measurement. • Thermometer: Use a soft, dry cloth to clean thermometer body. Never use abrasive cleaning agents, thinners or benzene for cleaning. -
Page 12: Error Codes
Error Codes When a malfunction or incorrect temperature measurement occurs, an error message will appear as described below. LCD Display Cause Solution Operate the The temperature measured thermometer only is higher than between the specified 43°C (109.4°F) temperature ranges. If necessary, clean the sensor tip. -
Page 13: Trouble Shootings
Trouble Shootings Trouble Probable Case Recommended Action Failed to power Batteries are drained. Replace with a new battery Batteries are not Reinsert batteries correctly aligned with correctly. terminals. The thermometer is Contact your retailer or damaged. Customer Services. Low battery Low battery. - Page 14 Trouble Probable Case Recommended Action Batteries are drained. Replace with a new battery The thermometer is Contact your retailer or damaged. Customer Services.
-
Page 15: Technical Specification
• For Customer Service To obtain further service please contact AViTA Corp. for the address of the repair location. Enclose the Proof of Purchase. Include $10.00 USD for the return shipping and handling. Include a letter, with your name, address, phone number, and description of the specific problem. -
Page 16: Emc Tables
EMC Tables TS21 is intended for use in the electromagnetic environment specified below. The customer or the user of TS21 must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions Professional healthcare... - Page 17 RF communications equipment (transmitters) and the TS21 can be requested from supplier using the contact information provided in this manual. However, it is advisable to keep the electromechanical aerosol equipment at an adequate distance of, at least, 0.5 m from mobile phones...
-
Page 18: Explanation Of Symbols
Explanation of Symbols The CE marking with the Registration Number of the Notified Body. This denotes the compliance of Regulation (EU) 2017/745 Medical Device Manufacturer Authorized representative in the European Community Date of manufacture (YYYY-MM-DD or YYYY-MM) Batch code (YYMMWWWW) Serial number (YYMWWWXXXXX) Keep dry... - Page 19 Humidity limitation Atmospheric pressure limitation Caution Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS RoHS Directive 2011/65/EU.
- Page 20 You are legally required to dispose of the batteries. Importer Distributor Model Number Country of Manufacturer Unique Device Identifier Keep away from sunlight Electronic IFU available at http://www.avita.com.tw TS21P-22676AV 2022.12.22...
