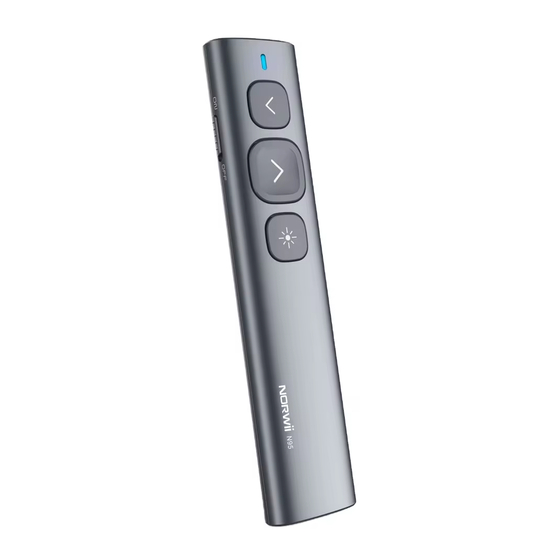

- Page 1 The Professional Presenter Wireless Presenter User Manual N95/N95 Plus Be sure to read this user manual carefully before using the wireless presenter and keep it for future reference. - 1 -...
- Page 2 The Professional Presenter WARNING This product can generate laser beam. DO NOT STARE INTO BEAM OR EXPOSE USERS OF TELESCOPIC OPTICS. Do not shine the laser beam on people's or animal’s eyes to avoid eye damage! Do not give this product to children as a toy! Warning label for red laser product: Warning label for green laser product:...
- Page 3 The Professional Presenter I. Features 1. Support previous page, next page. Click the page up key to go backward to previous page, long press to play slides from the current page. Click the down page key to go forward to the next page, long press to go into the black screen.
- Page 4 6. Supports USB 2.0 version, use operation system universal USB driver, plug and play. 7. The page up/down keys can be customized by Norwii Presenter software. The firmware of the USB receiver is updatable. II. Operation system Support Windows 7/8/10/11 and macOS 10.15 or later, only support...

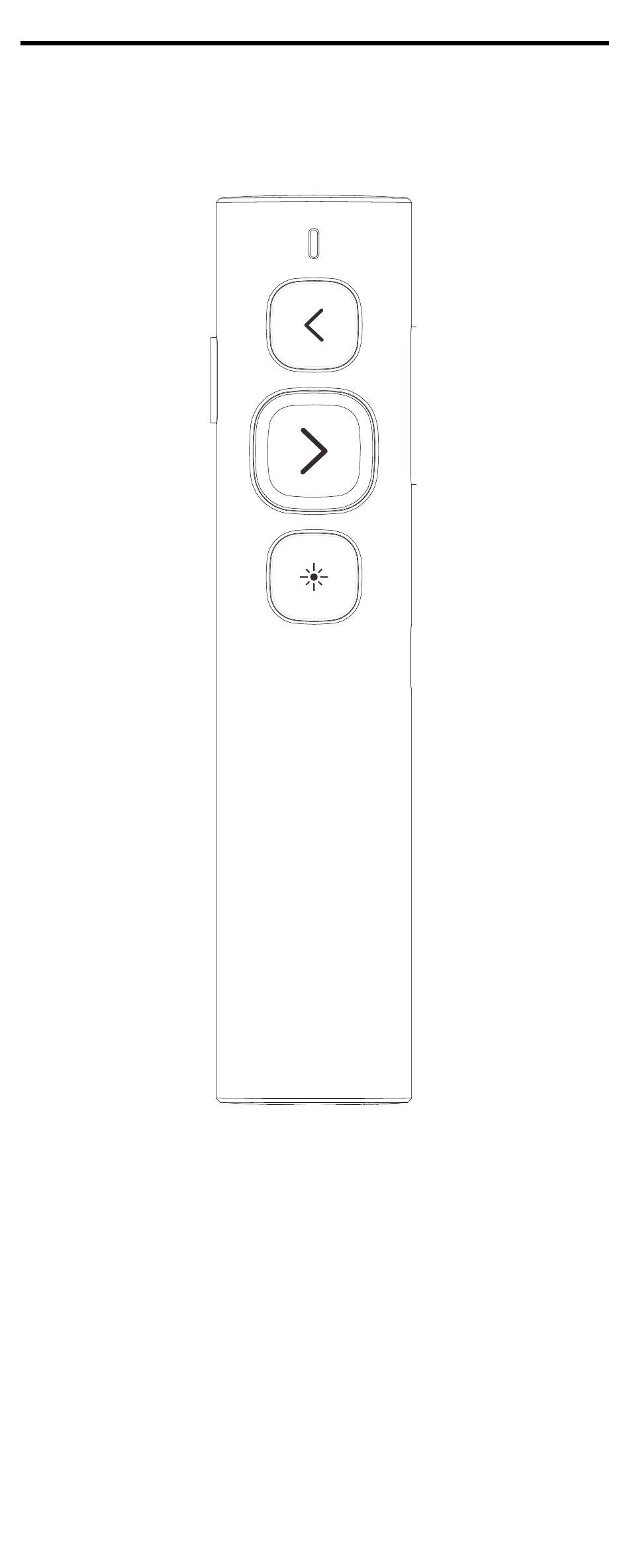

- Page 5 The Professional Presenter IV. Function map - 5 -...
- Page 6 The Professional Presenter N95 Plus Attention: When using this product, please change your Input Method Editors (IME) to English input mode. - 6 -...
- Page 7 The Professional Presenter V. Specifications Transmitter Technology: Radio frequency Frequency: 2.4GHz Control Distance: 100m Laser Power: <1mW (Class 2) or <5mW (Class 3R), see the laser label on the back of the presenter. Laser Distance: >200m Wavelength: Red 640-660nm Wavelength: Green 495-545nm Battery capacity: 300mAh...
- Page 8 The Professional Presenter USB-A and USB disk receiver Working Voltage: 4.5-5.5V Dimension: 34.8*14*8mm Weight: 3.2g VI. Function Description 1. Power switch: push up to “ON” to turn on the presenter, push down to “OFF” to turn off the presenter. 2. Page up key ：...
- Page 9 The Professional Presenter current active window. When switching windows, press and hold the "Tab" key to execute the Alt Tab function to switch between open windows. Release the button on the window that needs to be switched to switch to the desired window. 6.
- Page 10 7. The page up/down keys can be customized by Norwii Presenter software. VII. Installation 1. Take out the USB receiver and install.
- Page 11 The Professional Presenter the driver. When Windows displays "New hardware installed and ready to use", it indicates that the USB receiver installation is complete. The attached image is as follows: (Take out the USB receiver) - 11 -...
- Page 12 The Professional Presenter the USB receivers 2. Control the wireless presenter by operating the key of the flip pen. 3. Turn off the wireless presenter. After use, please return the USB receiver to the presenter's original position and turn off the power switch to further save power.
- Page 13 The Professional Presenter VIII. Wireless presenter charging 1. Low power indication. The blue LED on the wireless presenter will flash slowly to remind the user to charge the presenter. 2. Charging the wireless presenter. Connect one end of the USB cable to the computer USB interface and the other end to the USB-C interface of the wireless presenter.
- Page 14 The Professional Presenter When wireless presenter charges, the red indicator light always lights up. When the red indicator light turns green, indicates that the wireless presenter is fully charged. If you have a USB- C interface handheld charger, it can also be used to charge the wireless presenter.
- Page 15 Norwii Presenter software. Please download it from "Downloads" under "Support" menu of Norwii official website www.norwii.com in English version. 2. How to know if the battery is out of power? Turn on the power of the presenter, then press laser key to check if the laser can be turned on.
- Page 16 The Professional Presenter it also indicates that the battery is out of charge. Please charge it in a timely manner. When the battery level is low, the indicator light on the wireless presenter will enter a slow flashing state, reminding the user to charge in a timely manner.
- Page 17 The Professional Presenter Laser dimming is generally due to low battery power and the need for timely charging. If the laser beam remains only a red dark spot after being fully charged, it indicates that the laser module is aging. When the laser module ages, please contact us for after-sales repair.
- Page 18 The Professional Presenter compatible with receiver. You need to back up your data and reinstall the OS. 6. How to calibrate? Calibration is required when you do not move the wireless presenter, but the mouse cursor keeps moving in one direction until it stops at the edge screen.
- Page 19 The Professional Presenter and stable surface, press and hold the page down key and turn on the power. The blue LED will flash indicate entering calibration mode. At this point, release both hands and try to keep the product level as much as possible. The blue LED flashes for 3 seconds before stopping flashing, and remains on for 5 seconds before turning off,...
- Page 20 Permissions" in the "About" tab of the Norwii Presenter software, and then open corresponding permission settings in the window that opens. You can also check the box in front of the Norwii Presenter software above three permission settings "Launchpad - System settings –...
- Page 21 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No.50, dated June 24, 2007. XI. Product Support Shanghai Norwii Technology Co., Ltd. Add: 2F, Building 3, No 277, Jinfeng Road, Pudong New Area, Shanghai 201201, P. R. China Tel: 86-21-51872080 Email: support@norwii.com...
