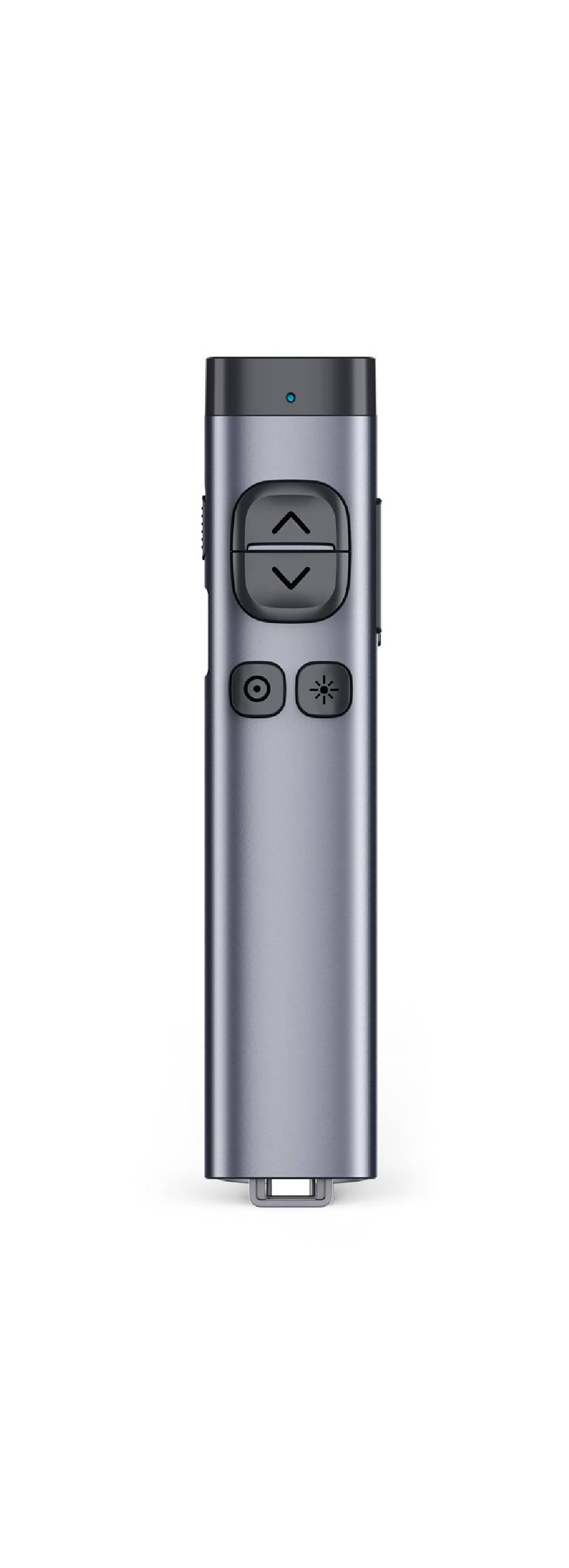

- Page 1 NORWii Product User Manual N97s Series Be sure to read this user manual carefully before using the wireless presenter and keep it for future reference. - 1 -...
- Page 2 This product can generate laser beam. DO NOT STARE INTO BEAM OR EXPOSE USERS OF TELESCOPIC OPTICS. Do not shine the laser beam on people's or animal’s eyes to avoid eye damage! Do not give this product to children as a toy! Warning label for red laser product: Warning label for green laser product: - 2 -...
-
Page 3: Instructions Before Use
Instructions before use 1. Before using this product, please switch the input method of your computer to English input mode. 2. Please firstly run Norwii Presenter software your computer experience all the features of this product. Please visit Norwii official website www.norwii.com, then go to... -
Page 4: Connection Methods
You can also check the box in front of the Norwii Presenter software in the above three permission settings in the "Launchpad - System settings – Privacy & Security –... - Page 5 USB receiver is plugged in. 1. Connect computer through the USB receiver. There are two types of USB receivers. One is the dual-head receiver, which contains USB-A USB-C connectors and has no USB disk. The other is the USB disk receiver, which is USB-A connector with internal USB disk.
- Page 6 3 minutes. The LED will be off after connected successfully. 3) On the computer, find the "Norwii presenter" or "Norwii N97s" in the "Add device", click connect, and at the same time, the presenter indicator light is off, and display "Norwii presenter"...
- Page 7 A, you must remove the wireless presenter in "Settings - Bluetooth & device" of computer A, for example, remove the Norwii Presenter or Norwii N97s, and then pair with computer A again to control computer 3. Bluetooth connection on macOS computer.
- Page 8 "Norwii N97s " on “Nearby Devices”, click connect, and at the same time, the presenter indicator light is off, and display "Norwii presenter" or "Norwii N97s " connected in "My Computer". The presenter can now control the computer.
-
Page 9: Bluetooth Connectivity
Bluetooth connectivity - 9 -... -
Page 10: Function Map
Function map - 10 -... -
Page 11: Product Specifications
Product specifications Transmitter Technology: Radio frequency Frequency: 2.4GHz Control Distance: 100 meters Laser Power: <1mW (Class 2) or <5mW (Class 3R), see the laser label on the back of the presenter. Laser Distance: >200m Wavelength: Red 640-660nm Wavelength: Green 495-545nm Battery capacity: 300mAh lithium battery... -
Page 12: Package Contents
During use, press the Page up or Page down key simultaneously to expand or reduce the size of the spot. The color of the spot can be modified in the Norwii Presenter software. - 12 -... - Page 13 2) Highlight In highlight mode, press and hold pointer key to display the aperture, which can highlight the content within aperture. While holding pointer key, press Page up or Page down to adjust the aperture size. 3) Magnifier In magnifier mode, press and hold pointer key to display the default magnifier, which can enlarge the details of the content.
- Page 14 Page down to adjust the size of the magnifier. 5. Pointer key ： When the Norwii Presenter software is not running, Pointer key has two modes ， the presentation mode and mouse mode. The default mode is the presentation mode, which can be switched by double-clicking the Pointer key.
- Page 15 7. volume control Long press the volume key up to 1 second, then move the wireless presenter up or down to adjust the computer volume. - 15 -...
-
Page 16: Charging Instructions
8. Mark key/Eraser key Click the mark key , the cursor enters the mark state, hold down the mark key and move the wireless presenter to freely draw lines on the screen. Release the mark key pause annotation. Click the eraser key to erase the annotations on the screen and exit mark state. - Page 17 Usually Pairing can solve this problem. Please download the Norwii Presenter software follow Pairing instructions in the software, or you can contact our after-sales service.
-
Page 18: Declaration Of Conformity
50689:2021 IEC/EN60825- 1:2014/A11:2021. Complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No.50, dated June 24, 2007. Product Support Shanghai Norwii Technology Co., Ltd Address: No.277 Jinfeng Road, Pudong New Area, Shanghai, 201201, China Tel: 86-21-51872080 Email: support@norwii.com...
