- Page 1 Wireless Presenter User Manual N29 USB-C Be sure to carefully read this user’s manual before using the wireless presenter and keep it for future reference - 1 -...
- Page 2 WARNING! RISK OF INJURY! Laser beams can cause permanent damage to the eyes. Do not look into the laser beam or shine the laser beam into your eyes, other peoples’ eyes, or the eyes of pets. Be careful when pointing it towards reflective surfaces. Warning label for red laser product (See below figure): Warning label for green laser product...

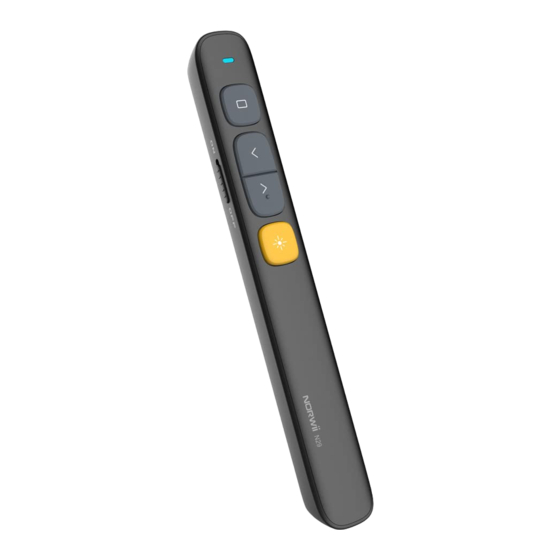

- Page 3 this document may be reproduced or transmitted in any form or by any means, electronical or mechanical, for any purpose, without prior permission of the seller. I. Product description Featuring a pen-like design, alt- tabbing and hyperlink functions in presentations, it is an intuitive and easy to use tool for any and all presentations.
- Page 4 100m control distance, 360 degrees control without directional restriction. With automatic frequency hopping technology, it can effectively avoid interference from other radio frequency signals. 3. Through UniCoding 6 technology, one USB receiver can be controlled by 1 up to 6 transmitters. 4.
- Page 5 12. USB2.0, Plug and play, no need to install drivers. 13. Easy control of volume up/down. 14. The function of the keys can be customized by the Norwii Presenter software. - 4 -...
- Page 6 III. Operation system Windows 7 / 8 / 10 / 11 or later, macOS/ Linux/ Android system. It may only support page turning function on Android/ Linux system. IV. Package contents (USB Wireless presenter receiver stored inside the wireless presenter) 2.
- Page 7 V. Specifications Transmitter Technology: Radio Frequency Frequency: 2.4GHz Control Distance: up to 100m Laser Power: <1mW (Class 2), see the laser label on the back of the presenter. Laser Distance: >200m Wavelength: Red 640-660nm Wavelength: Green 495-545nm Battery: 360mAh Polymer Lithium Battery Charging Voltage Working Voltage:...
- Page 8 VI. Function map Attention: When using this product, please change your Input Method Editors (IME) to English input mode. VII. Function Description 1. Power switch: push up to “ON” to turn on the presenter, push down to - 7 -...
- Page 9 “OFF” to turn off the presenter. 2. Press and hold “Laser Pointer” button to turn on the laser, release button to turn it off. 3. Press “Page Up” button for 2 seconds to Start a slideshow from the current slide. Press the button for 2 seconds again to escape from the full screen.
- Page 10 hyperlinks and double click Fn can be used to open the hyperlink. To click Fn is same as to press Tab on keyboard. To double click Fn is same as to press Enter on keyboard. For WPS doesn’t support jumping hyperlinks by Tab, so WPS doesn’t support this function.
- Page 11 9. Press “volume up” or “volume down” on the side, you can adjust system volume. 10. For products that support key function customization or spotlight serial products that support digital laser, spotlight, highlight, need download Norwii Presenter software. Please download from "Downloads" under "Support" menu Norwii...
- Page 12 (Take out the USB receiver.) 2. Plug the receiver into the USB port. operation systems including Windows, Android and Linux will install the driver for the USB receiver automatically. 3. Operate the wireless presenter 4. When a button is pressed, the blue led on the wireless presenter will flash.
- Page 13 IX. Charging the wireless presenter 1. Low power indication. 2. The blue LED on the wireless presenter will flash slowly to remind the user to charge the presenter. 3. Charging the wireless presenter. 4. Connect the USB-C port of wireless presenter to a USB port of computer via USB cable.
- Page 14 X. Frequently asked questions 1. How to know the battery is out of power? Turn on the power switch of the presenter, then press laser button to check if the laser can be turned on. If the laser cannot be turned on, usually it means the battery is out of power or the laser diode is broken and need replacement.
- Page 15 First, check the power switch. Second, check whether the wireless presenter is in low power or out of power. If the LED flashes slowly, it means the power is low and the battery needs to be replaced. If all the other buttons can work, only the laser pointer cannot work, the laser diode may need replacement.
- Page 16 The reason is the USB receiver doesn’t save the presenter’s address properly. You can use Norwii Presenter software to do Pair operation to let the USB receiver to save the presenter’s address again.
- Page 17 IEC/EN60825-1:2014. Complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No.50, dated June 24, 2007. XII. Product Support Shanghai Norwii Technology Co., Address: No.277 Jinfeng Road, Pudong Area, Shanghai, 201201, China Tel: 86-21-51872080 Email: support@norwii.com...
