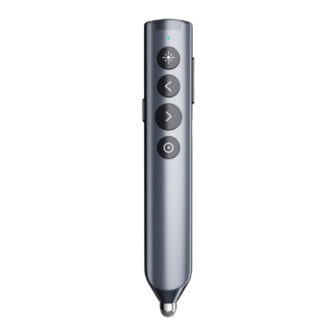

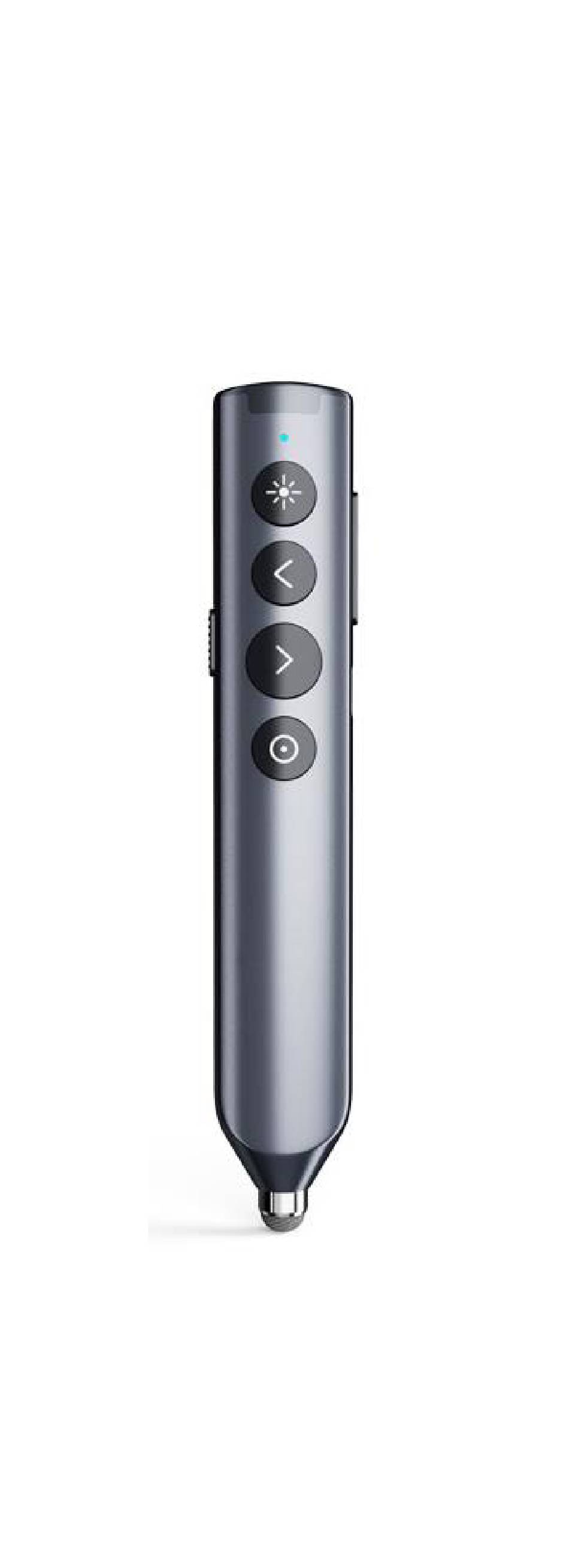

- Page 1 NORWii Product User Manual N10s Pro Series Be sure to read this user manual carefully before using the wireless presenter and keep it for future reference. - 1 -...
-
Page 2: Safety Warning
3. Do not place the product in a high- temperature environment; 4. Do not immerse this product in water or any other liquid; 5. If short circuit fault occurs, do not continue using or disassemble without authorization. Please contact Norwii for assistance. - 2 -... -
Page 3: Instructions Before Use
You can also check the box in front of the Norwii Presenter software in the above three permission settings in the "Launchpad - System settings – Privacy & Security –... -
Page 4: Connection Methods
II. Connection methods There are two connection methods between wireless presenters computer. One is to connect through the USB receiver, supporting USB-A and USB-C (also known as USB Type- C) interfaces, the other is to connect through Bluetooth. 1. Connect computer through the USB receiver. - Page 5 3 minutes. 3) On computer, look Norwii Presenter or Norwii N10s Pro in the Add Device section and click it to complete the Bluetooth connection. 3. Bluetooth connection on macOS computer. 1) On computer, select Bluetooth in the...
- Page 6 At this time, the wireless presenter's LED will flash, indicating that it was waiting for pairing in the following 3 minutes. 3) On computer, find Norwii Presenter or Norwii N10s Pro in the nearby device and click Connect. After the connection completed, Norwii...
-
Page 7: Bluetooth Connectivity
III. Bluetooth connectivity - 7 -... - Page 8 IV. Function map - 8 -...
-
Page 9: Product Specifications
V. Product specifications Transmitter Technology: Radio frequency Frequency: 2.4GHz Control Distance: 50 meters Laser Power: <1mW, see laser label on the back of the presenter. Laser Distance: >200m Wavelength: Red 640-660nm Wavelength: Green 495-545nm Battery capacity: 360mAh lithium battery Working Voltage: 3.6V-4.2V Charging Voltage: 5V Dimension: 137*30*13.8mm... -
Page 10: Function Description
During use, press the Page up or Page down key simultaneously to expand or reduce the size of the spot. The color of the spot can be modified in the Norwii Presenter software. - 10 -... - Page 11 2) Highlight In highlight mode, press and hold pointer key to display the aperture, which can highlight the content within aperture. While holding pointer key, press Page up or Page down to adjust the aperture size. 3) Magnifier In magnifier mode, press and hold pointer key to display the default magnifier, which can enlarge the details of the content.
- Page 12 No double-click and long press the left key of mouse. 5. Pointer key : When the Norwii Presenter software is not running, Pointer key has two modes ， the presentation mode and mouse mode.
- Page 13 2) In mouse mode, a click is a mouse left click, and you can click a hyperlink. 6. Touch screen writing: One end of the wireless presenter has a touch screen pen head, which can be used for writing and tapping on the touch screen.
-
Page 14: Charging Instructions
8. volume control Long press the volume key up to 1 second, then move the wireless presenter up or down to adjust the computer volume. IX. Charging instructions 1. This product can be fully charged within 2 hours of charging. - 14 -... - Page 15 Usually Pairing can solve this problem. Please download the Norwii Presenter software follow Pairing instructions in the software, or you can contact our after-sales service.
-
Page 16: Product Support
If the laser spot becomes dim, it may be due to low battery power. If the laser spot remains dim after being fully charged, it means that the laser module has been damaged. Please contact Norwii after-sales service repair replacement.
