- Page 1 The Professional Presenter Wireless Presenter User Manual N86s Be sure to read this user manual carefully before using the wireless presenter and keep it for future reference. - 1 -...
- Page 2 The Professional Presenter WARNING This product can generate laser beam. DO NOT STARE INTO BEAM OR EXPOSE USERS OF TELESCOPIC OPTICS. Do not shine the laser beam on people's or animal’s eyes to avoid eye damage! Do not give this product to children as a toy! Warning label for red laser product: Warning label for green laser product:...
- Page 3 Click to open a video or hyperlink, and double click to switch pointer mode. (It must be used with Norwii Presenter software) 3. Support full screen mark function, one key to mark and one key to erase the mark.
- Page 4 8. Supports USB 2.0 version, use operation system universal USB driver, plug and play. 9. The page up/down keys can be customized by Norwii Presenter software. The firmware of the USB receiver is updatable. II. Operation system Windows 7 / 8 / 10 / 11 or later, macOS/ Linux/ Android system.
- Page 5 The Professional Presenter IV. Specifications Transmitter Technology: Radio frequency Frequency: 2.4GHz Control Distance: 50 meters Laser Power: <1mW (Class 2) Laser Distance: >200m Wavelength: Red 640-660nm Wavelength: Green 495-545nm Battery capacity: 300mAh battery: AAAx2pcs Working Voltage: Dimension: 143.7*41.7*27mm Weight: 46.5g USB Receiver Working Voltage: 4.5-5.5V...

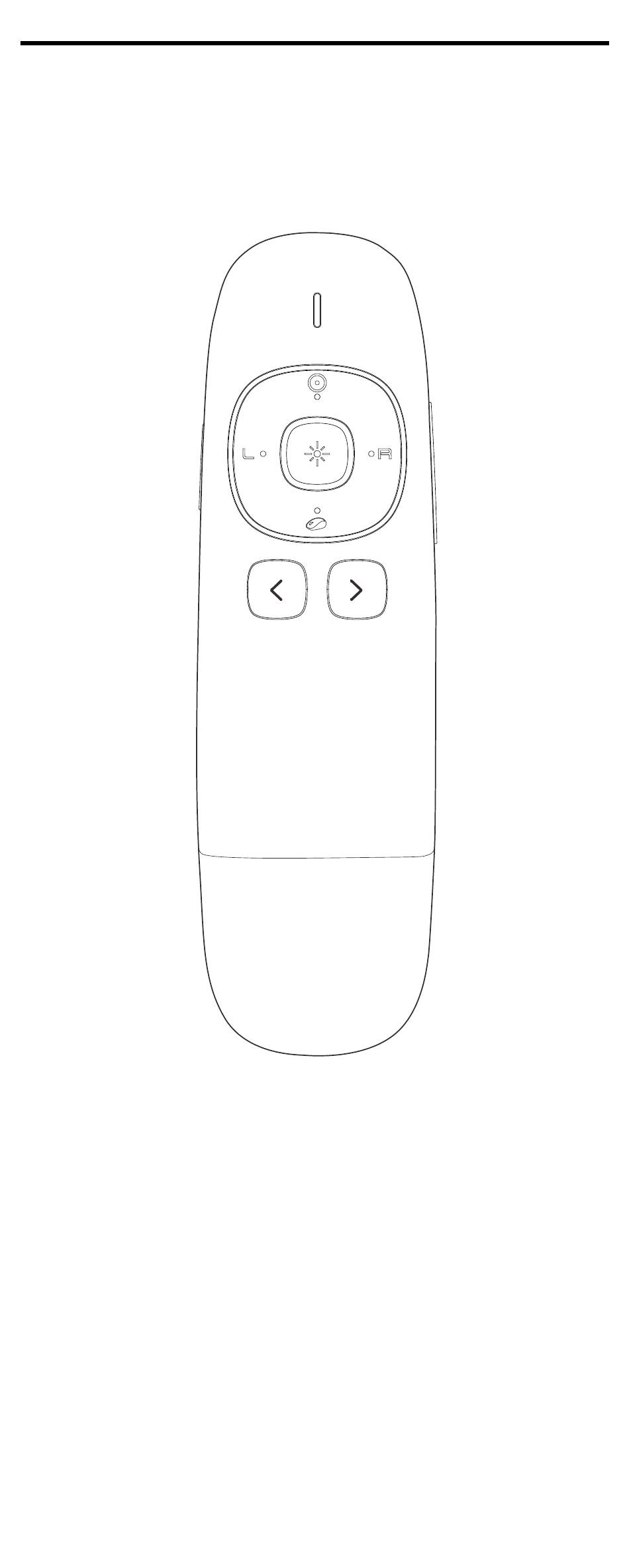

- Page 6 The Professional Presenter V. Function map N86s Attention: When using this product, please change your Input Method Editors (IME) to English input mode. - 6 -...
- Page 7 5. Pointer key ： When the Norwii Presenter software is running, the following functions can be used： 1) Digital laser: Press and hold the pointer key to use digital laser.
- Page 8 Hold down the pointer key and press increase or decrease the size of spotlight. 6. Pointer key ：without Norwii Presenter software, the pointer key has two modes: mouse mode and presentation mode which switched by double click.
- Page 9 The Professional Presenter digital laser key to drag the window. 2) In presentation mode, clicking the pointer key does not have any function, to prevent going to next page when clicked. When pressing and holding the pointer key, the built-in digital laser function in PowerPoint can be used in full screen mode.
- Page 10 The Professional Presenter drawing. 11. Eraser/Volume key ： click the Eraser/Volume key , you can erase the marks, and long press Eraser/Volume key , more than 1 second, then move the wireless presenter up or down, the volume will be increased or decreased. 12.
- Page 11 13. The page up/down keys can be customized by Norwii Presenter software. VII. Installation 1. Install the battery The product is powered by two No.
- Page 12 The Professional Presenter 2. Take out the USB receiver and install. Remove the USB receiver from the lower part of the wireless presenter, and then plug it into the USB interface of the computer. At this time, the bottom right corner of the computer desktop will...
- Page 13 The Professional Presenter (Take out the USB receiver.) (The USB receiver into the computer USB port) 3. Control the wireless presenter by operating the key of the flip pen. 4. Turn off the wireless presenter. After use, please return the USB receiver to the presenter's original - 13 -...
- Page 14 For products that support key function customization or highlight serial products that support digital laser, highlight, magnifier, you need download Norwii Presenter software. Please download it from "Downloads" under "Support" menu of Norwii official website www.norwii.com in English version. - 14 -...
- Page 15 The Professional Presenter 2. How to know if the battery is out of power? When the power is turned on, if the wireless presenter key is pressed and the LED indicator light does not indicate, it indicates that the battery is low.
- Page 16 The Professional Presenter receiver plugs into the PC? Please check whether the USB works or not. You can use a USB mouse or keyboard to test the USB port. If a USB mouse or keyboard works on the USB port and the USB receiver of the presenter doesn’t work, it means the USB receiver is broken or the USB drivers is not...
- Page 17 The Professional Presenter product horizontally or vertically, the mouse on the computer does not move horizontally or vertically, and there is an angle between the movement direction horizontal vertical direction, calibration operations need to be carried out. Simply say, when you move the product horizontally, and the mouse cursor on the computer does not move horizontally, which...
- Page 18 The reason is the USB receiver doesn’t save presenter’s address properly. You can use Norwii Presenter software to let the receiver save presenter’s address again. We also call this operation is to PAIR the wireless presenter and the USB receiver.
- Page 19 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No.50, dated June 24, 2007. X. Product Support Shanghai Norwii Technology Co., Ltd. Add: 2F, Building 3, No 277, Jinfeng Road, Pudong New Area, Shanghai 201201, P. R. China Tel: 86-21-51872080 Email: support@norwii.com...
