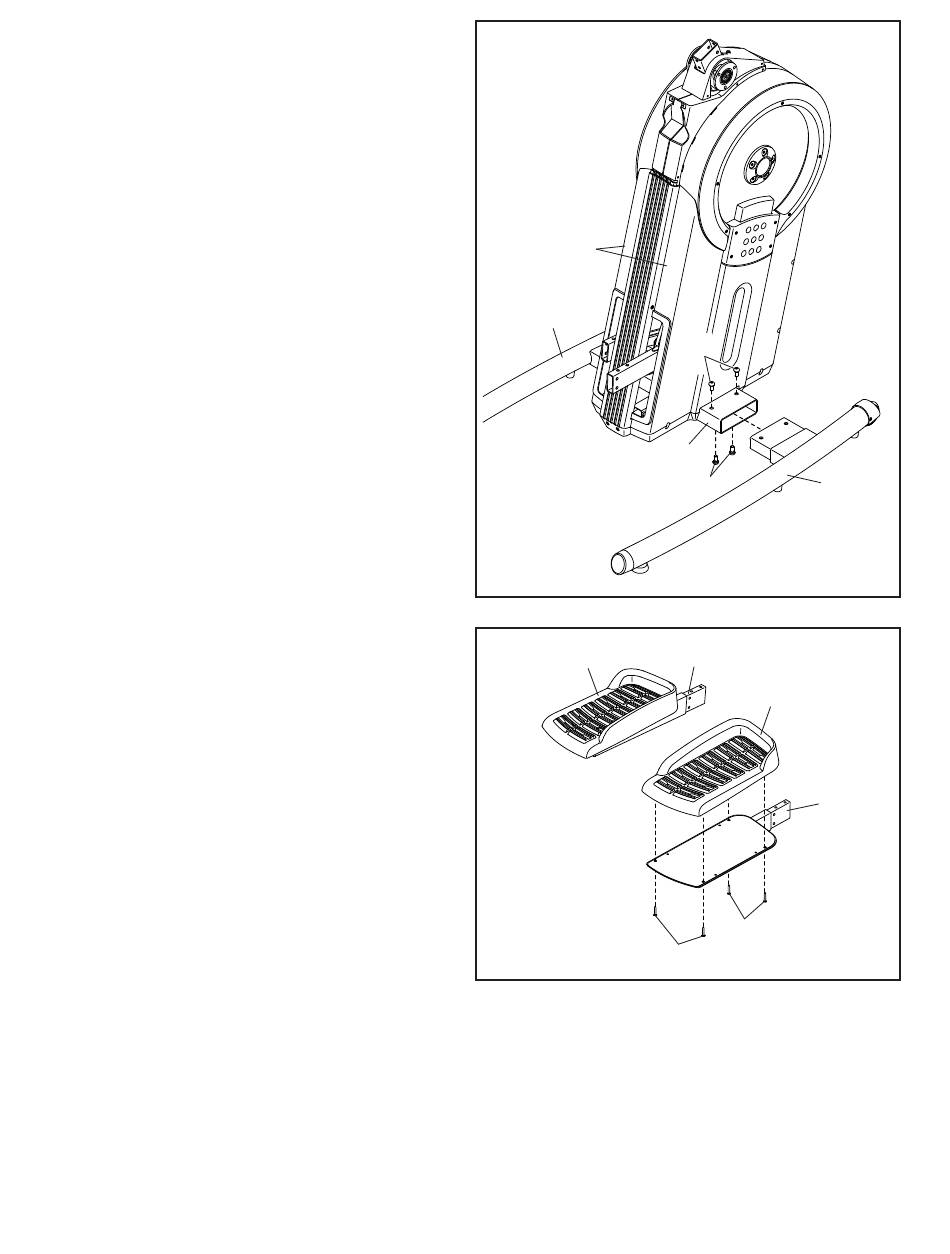

2. Identify the Right and Left Stabilizers (8, 9) and
orient them as shown.
Have a second person hold the Frame (1) and
tip it to the left. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Right Stabilizer (8) to the Frame (1)
with four M10 x 20mm Screws (110); start all
the Screws, and then tighten them.
Have the second person lower the Frame (1)
to the floor. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Left Stabilizer (9) in the same way.
3. Identify the Right and Left Pedal Bases (2, 3)
and the Right and Left Pedals (22, 23), and ori-
ent them as shown.
Attach the Right Pedal (22) to the Right Pedal
Base (2) with four M6 x 12mm Screws (108);
start all the Screws, and then tighten them.
Attach the Left Pedal (23) to the Left Pedal
Base (3) in the same way.
2
50, 51
9
3
23
8
110
1
8
110
3
22
2
108
108
