Wen MM1014 Instruction Manual

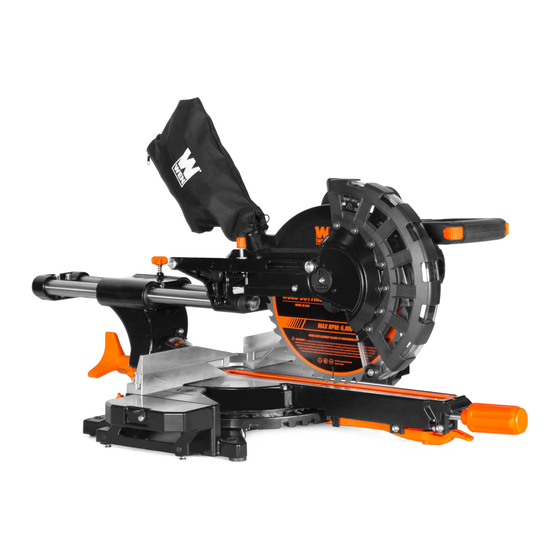

10-inch sliding miter saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL MM1014
10-INCH SLIDING
MITER SAW
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-847-429-9263 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM1014 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen MM1014

Summary of Contents for Wen MM1014

  • Page 1 1-847-429-9263 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    Troubleshooting Guide ................... 23 Exploded View & Parts List ................25 Warranty Statement ..................29 WENPRODUCTS.COM To purchase accessories and replacement parts for your tool, visit Replacement Miter Saw Blades (Model BL1040) Replacement Carbon Brushes (Part MM1014-111) Miter Saw Stand (Model MSA200, MSA750T, MSA330)

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Miter Saw. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Miter Saw Safety Warnings

    MITER SAW SAFETY WARNINGS WARNING! Do not operate the miter saw until you have read and understood the following instructions and the warning labels. SAW BLADE SAFETY 3. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close 1.
  • Page 7 MITER SAW SAFETY WARNINGS WARNING! Do not operate the miter saw until you have read and understood the following instructions and the warning labels. SECURE YOUR WORKPIECE 6. During slide cutting, always push the saw blade away from you. Do not pull the saw towards you. 1.

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION DOUBLE-INSULATED TOOLS The tool’s electrical system is double insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal motor components with protecting insulation.

  • Page 9: Before Operating

    UNPACKING & TRANSPORTATION UNPACKING With the help of a friend or trustworthy foe, carefully remove the miter saw from the packaging. Make sure to take out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and accessories.

  • Page 10: Know Your Miter Saw

    KNOW YOUR MITER SAW Power Lock Carbon Brush Cover Motor Blade Guard Workpiece Clamp Bevel Angle Indicator Adjustable Fence Extension Table Fixed Fence Kerf Board Miter Angle Indicator Miter Lock Knob Miter Stop Lever Handle Power Trigger Laser Switch Handle Power Cord Dust Port Sliding Arm Lock...

  • Page 11: Assembly & Adjustments

    ASSEMBLY & ADJUSTMENTS WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your miter saw. Failure to follow the safety instructions may result in serious personal injury. INSTALLING THE BLADE Fig.
  • Page 12 ASSEMBLY & ADJUSTMENTS WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your miter saw. Failure to follow the safety instructions may result in serious personal injury. RAISING/LOWERING THE SAW ARM Fig.
  • Page 13 ASSEMBLY & ADJUSTMENTS ADJUSTING THE MITER ANGLE Fig. 7 The miter table can be adjusted from 0° to 45° to the left and 0° to 45° to the right to create miter cuts. 1. Loosen the miter lock knob (Fig. 7 - 1) by turning it coun- terclockwise.
  • Page 14 The miter saw has four holes on the base for bench mounting (Fig. 9). Mount and fix the saw to a level, horizontal bench, worktable, or miter saw stand (compatible with WEN models MSA200, MSA330, and MSA750T) using four bolts and nuts (not included).
  • Page 15 ASSEMBLY & ADJUSTMENTS SQUARING THE FENCE WITH THE BLADE Fig. 11 To make accurate cuts, the fence must be perpendicular to the saw blade. 1. Lower the saw arm down to the lower position and lock the release pin. 2. Slide the saw arm to the back and tighten the slide lock knob.
  • Page 16 ASSEMBLY & ADJUSTMENTS SQUARING THE TABLE WITH THE BLADE Fig. 14 To make accurate cuts, the table must be perpendicular to the saw blade. 1. Lower the saw arm down to the lower position and lock the release bolt. 2. Slide the saw arm to the back and tighten the slide lock knob.
  • Page 17 ASSEMBLY & ADJUSTMENTS ADJUSTING THE CUTTING DEPTH Fig. 16 The saw cutting depth can be adjusted if you would like to perform a kerfing or rabbet cut that does not cut all the way through the workpiece. 1. Unplug the tool from its power source and raise the saw head assembly.
  • Page 18 ASSEMBLY & ADJUSTMENTS CHANGING THE SAW BLADE Fig. 18 DANGER! Never try to use a blade larger than the stated ca- pacity of the saw. Do not use a blade thicker than 1.6mm. It will prevent the blade screw from properly securing the blade on the spindle.

  • Page 19: Operation & Maintenance

    OPERATION WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your tool. Failure to follow the safety instructions may result in serious personal injury. WARNING! Before operating the miter saw, make sure to equip yourself with a dust mask, ear protection, and safety glasses for protection from possible injuries.
  • Page 20 OPERATION WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your tool. Failure to follow the safety instructions may result in serious personal injury. WARNING! Before operating the miter saw, make sure to equip yourself with a dust mask, ear protection, and safety glasses for protection from possible injuries.
  • Page 21 OPERATION 7. PERFORM THE CUT Fig. 24 1. Plug in the miter saw. Turn on the laser power switch (Fig. 24 - 1) to see where your cut will land on the material. CAUTION: DO NOT look into the laser light or point it at any living thing.

  • Page 22: Maintenance

    WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts. Use of other parts may be hazardous or induce product failure.

  • Page 23: Troubleshooting Guide

    MAINTENANCE PRODUCT DISPOSAL Used power tools should not be disposed of together with household waste. This product contains electronic com- ponents that should be recycled. Please take this product to your local recycling facility for responsible disposal and to minimize its environmental impact. Please recycle the packaging and electronic components where facilities exist.
  • Page 24 4. Inspect and replace carbon brushes as needed. Replacement carbon brushes (Part 4. Worn carbon brushes. No. MM1014-111) can be ordered from wenproducts.com. 5. Defective motor or other 5. Stop using the tool and call 1-847-429-9263 internal problem.

  • Page 25: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST...
  • Page 26 EXPLODED VIEW & PARTS LIST Part. No. Description Qty. Part. No. Description Qty. MM1014-001 Base MM1014-035 Screw Knob, M6x40 MM1014-002 Rear Support MM1014-036 Locking Spring MM1014-003 Set Screw, M6x8 MM1014-037 Nut, M8 MM1014-004 Rubber Foot Socket Head Cap Screw, MM1014-038...
  • Page 27 EXPLODED VIEW & PARTS LIST Part. No. Description Qty. Part. No. Description Qty. Phillips-head Screw, MM1014-102 Motor Baffle MM1014-067 M6x10 MM1014-103 Rotor MM1014-068 Guard Spring Self-tapping Screw, MM1014-104 MM1014-069 Guard Plate ST5x65 MM1014-071 Rivet, 3x7mm MM1014-105 Ball Bearing, 6000RS MM1014-072...
  • Page 28 EXPLODED VIEW & PARTS LIST Part. No. Description Qty. Part. No. Description Qty. Left & Right Extension Tables Clamp Assembly N.P. MM1014-154ASM Clamp Assembly Phillips-head Screw, MM1014-133 M5x14 MM1014-153 Rod Cover MM1014-134 Lock Washer, 5mm MM1014-154 MM1014-135 Left Stop Block...

  • Page 29: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
  • Page 30 NOTES...
  • Page 31 NOTES...
  • Page 32 THANKS FOR REMEMBERING V. 2023.12.06...
