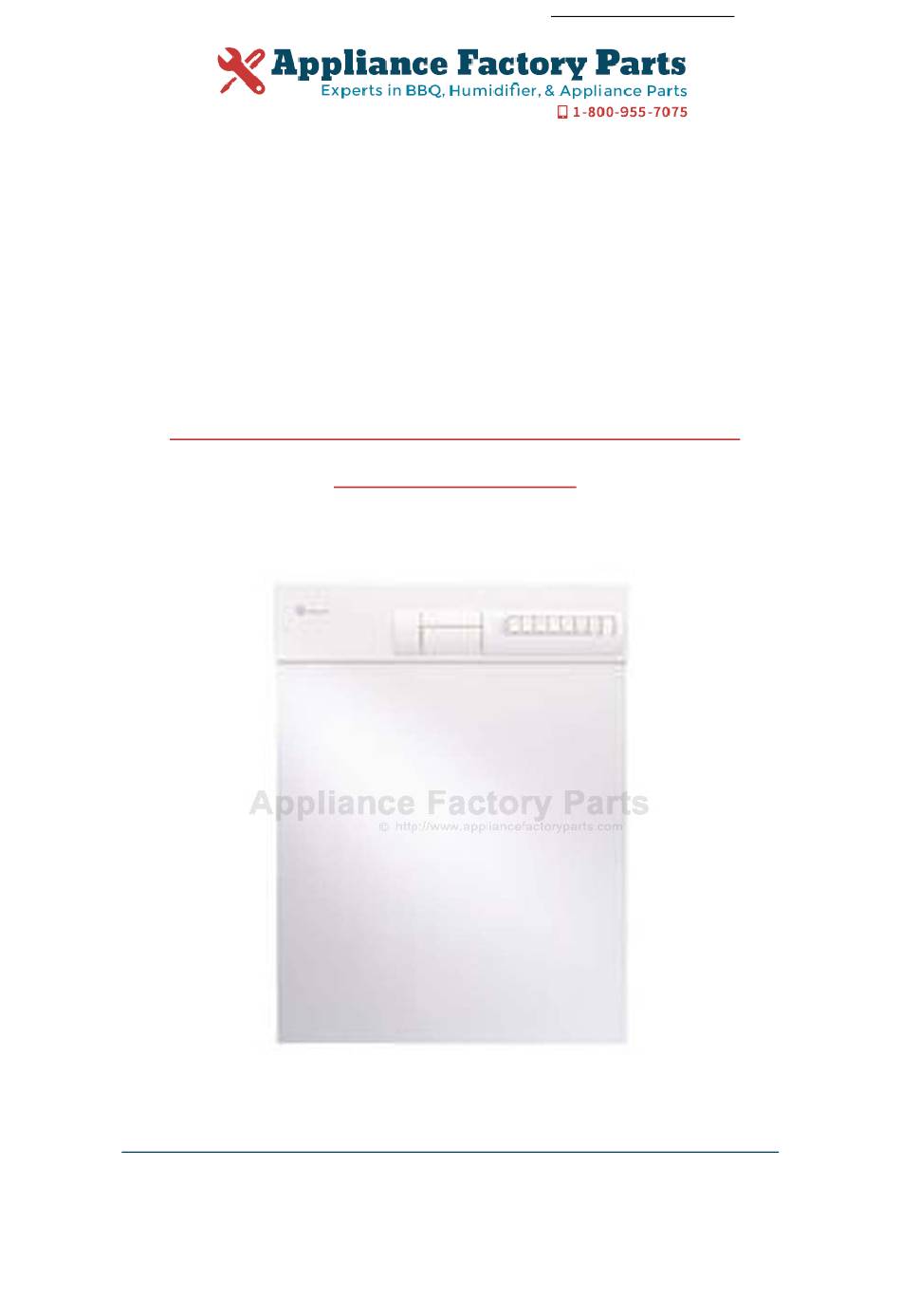

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. GE ZBD5700D01WW Owner's Manual Shop genuine replacement parts for GE ZBD5700D01WW Find Your GE Dishwasher Parts - Select From 6722 Models -------- Manual continues below --------...
- Page 2 ® GE Monogram Use and Care Guide Dishwasher ZBD5600 ZBD5700 ZBD5900...
-
Page 3: Table Of Contents
The information on the following pages will help you operate and maintain your dishwasher properly. If you have any other questions—in the USA, please call the GE Answer Center® 800.626.2000. In Canada, please call 1.888.880.3030. Appliance Registration ... . .3, 27, 28 Optional Accessories . -
Page 4: Consumer Services
If you don’t understand something or need Before you operate and maintain your new dishwasher more help, call in the USA: using properly. GE Answer Center®, your Keep it handy for answers to your questions. 800.626.2000, dishwasher 24 hours a day, 7 days a week In Canada, call 1.888.880.3030. -
Page 5: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS MESURES DE SÉCURITÉ IMPORTANTES WARNING! • Do not discard a dishwasher without first For your safety, the information in this guide removing the door of the washing compartment. must be followed to minimize the risk of fire, explosion, electric shock, or to prevent property •... - Page 6 All other us toll-free in the USA, at the GE Answer Center®, servicing should be referred to a qualified 800.626.2000. In Canada, call 1.888.880.3030.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS MESURES DE SÉCURITÉ IMPORTANTES WHEN USING YOUR DISHWASHER • Non-Dishware Items: Do not wash items such Use this appliance only for its intended as electronic air cleaner filters, furnace filters purpose as described in this Owner’s Guide. and paint brushes in your dishwasher.
-
Page 8: Operating Instructions
Control Panel — ZBD5600 Dishwasher You can locate RINSE & HOLD your model number on the SUPER WASH NORMAL BOOST left inside of your dishwasher tub. Throughout this FAST WASH NORMAL WASH manual, features and appearance may vary from NORMAL BOOST LIGHT WASH &... - Page 9 Control Panel — ZBD5600 Dishwasher Close the door until it locks in place and turn the Options Selections dial to the desired setting. Start a Then turn the Cycle Selections dial to the desired setting to start the dishwasher. There is a time wash load delay between start-up and water fill while the timer is advancing.
-
Page 10: Control Panel And Settings For
Control Panel — ZBD5700 & ZBD5900 Dishwasher You can locate your model Rinse & Fast Delay Normal Super Heated Water Clear Pre-Wash number on the Hold Wash Wash Temp Start Wash Wash left inside of your dishwasher tub. Rinse Throughout this manual, features and appearance Clean... - Page 11 Control Panel — ZBD5700 & ZBD5900 Dishwasher 4. WATER TEMP—This option provides extra heat to increase water temperature for best performance. It is used best with heavily-soiled dishes. This option cannot be used with RINSE & HOLD. NORMAL—This is the default setting—wash and rinse water temperatures up to 149°F. BOOST—This water temp selection provides a wash and rinse with water temperatures up to 158°F.
- Page 12 Control Panel — ZBD5700 & ZBD5900 Dishwasher Your dishwasher has the ability to remember what options you like with any particular wash cycle. Auto This means that if you select NORMAL WASH your dishwasher will automatically select the Memory options that you selected last time you washed with the NORMAL WASH cycle. This memory function works with NORMAL WASH and SUPER cycles.
-
Page 13: Water Temperature
Using the dishwasher Dishwasher The entering water must be at least 120°F. and Turn on the hot water faucet nearest the Water not more than 150°F., for effective cleaning and dishwasher, place the thermometer in a glass Temperature to prevent dish damage. Check the water and let the water run continuously into the temperature with a candy or meat thermometer. -
Page 14: Dishwasher Racks
Loading the Racks Dishwasher The upper rack is for glasses, cups and saucers. Cups Upper Rack Fold down cup rack and glasses fit best along the sides. This is also a secure can support extra cup place for dishwasher-safe plastics. The cup shelf may be placed in the up or down position to add flexibility. - Page 15 Loading the Racks Dishwasher Features and appearance of racks and silverware baskets may vary from your model. Put flatware in the removable basket with fork and knife handles up to protect your hands. Place Silverware spoons in the basket with handles down. Mix knives, forks and spoons so they don’t nest together. Basket Distribute evenly.
-
Page 16: Care And Cleaning
Use stainless steel cleaner on stainless steel panel. You can order Stainless Steel Magic # WX10X15 through GE Parts in the USA, by calling 800.626.2002. In Canada, call 1.888.880.3030. The stainless steel tub can be cleaned with Stainless Steel Magic or Interior a similar product using a clean, soft cloth. - Page 17 Care and Cleaning Dishwasher Periodically, remove and clean the spray arms Removing to make sure that none of the nozzles have Pull up to remove and Cleaning become blocked. the Spray To remove the lower spray arm, grasp the Arms and center of the spray arm and pull upwards, it will unclip.
- Page 18 In addition to the glass trap, your dishwasher The Wash has three fine filters— Filters • a two piece round perforated stainless steel filter located in the base of the dishwasher. • a finer micro-mesh filter located under the stainless steel filter. Grip filter and lift •...
- Page 19 Care and Cleaning Dishwasher The interior light bulb is located in the rear top right Light Bulb corner. Replacement To replace— (on some Unscrew lens in a 1. Make sure the dishwasher is disconnected from the models) counterclockwise power supply. direction 2.
-
Page 20: Optional Accessories
Optional Accessories Dishwasher You can change the door panel appearance These accessories are available at extra cost by Change the of your dishwasher by ordering one of these calling in the USA, 800.626.2002. In Canada, Dishwasher’s optional accessories: call 1.888.880.3030. Appearance for •... -
Page 21: Problem Solver
Before You Call For Service Dishwasher PROBLEM POSSIBLE CAUSE WHAT TO DO Questions? Time too long between •Each button must be touched within Use this Cycle Status Indicators button selection 15 seconds after touching another control. (on some models) go problem off when you’re setting solver... - Page 22 Questions? PROBLEM POSSIBLE CAUSE WHAT TO DO Extremely hard • Use a rinse agent to remove spots Use this Spots and filming on water and prevent new film build-up. glasses and flatware problem Low inlet water • To remove stubborn spots from glassware: solver temperature 1 Remove all metal utensils from the...
- Page 23 Before You Call For Service Dishwasher Questions? PROBLEM POSSIBLE CAUSE WHAT TO DO Use this Door not properly closed •Press door until it clicks shut. Dishwasher won’t start Power supply not •Check dishwasher is plugged in and problem connected. switch is on. solver Child Lockout mode is •Press and hold desired button for two...
- Page 24 Questions? PROBLEM POSSIBLE CAUSE WHAT TO DO Use this Hard water • Try progressively increasing the Rinse Aid White film on glasses, setting to 6. See the Rinse Agent section. tea and coffee stains problem Repeated use of Sani • Discontinue use of Sani option. solver option Consistently low water...
- Page 25 (800.833.4322) to request information or service. 800.626.2000 Service You can have the secure feeling that GE Consumer Service will still be there after your warranty expires. Purchase a GE contract while your warranty is still in effect and you’ll Contracts receive a substantial discount.
-
Page 26: Usa Warranty
Any part of the dishwasher which fails due to a defect in materials or workmanship. During this COVERED full one-year warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part. From the Date... -
Page 27: Canada Warranty
Any part of the dishwasher which fails due to a defect in materials or workmanship. During this COVERED full one-year warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part. From the Date... -
Page 28: Appliance Registration
Place 1st Class Letter Stamp Here General Electric Company Warranty Registration Department P.O. Box 34070 Louisville, KY 40232-4070... - Page 29 The in the USA, call the unlikely event of a service number in the GE Answer Center ® safety modification. USA: 800.444.1845. In 800.626.2000. In Canada, Canada: 1.888.880.3030 call 1.888.880.3030.
