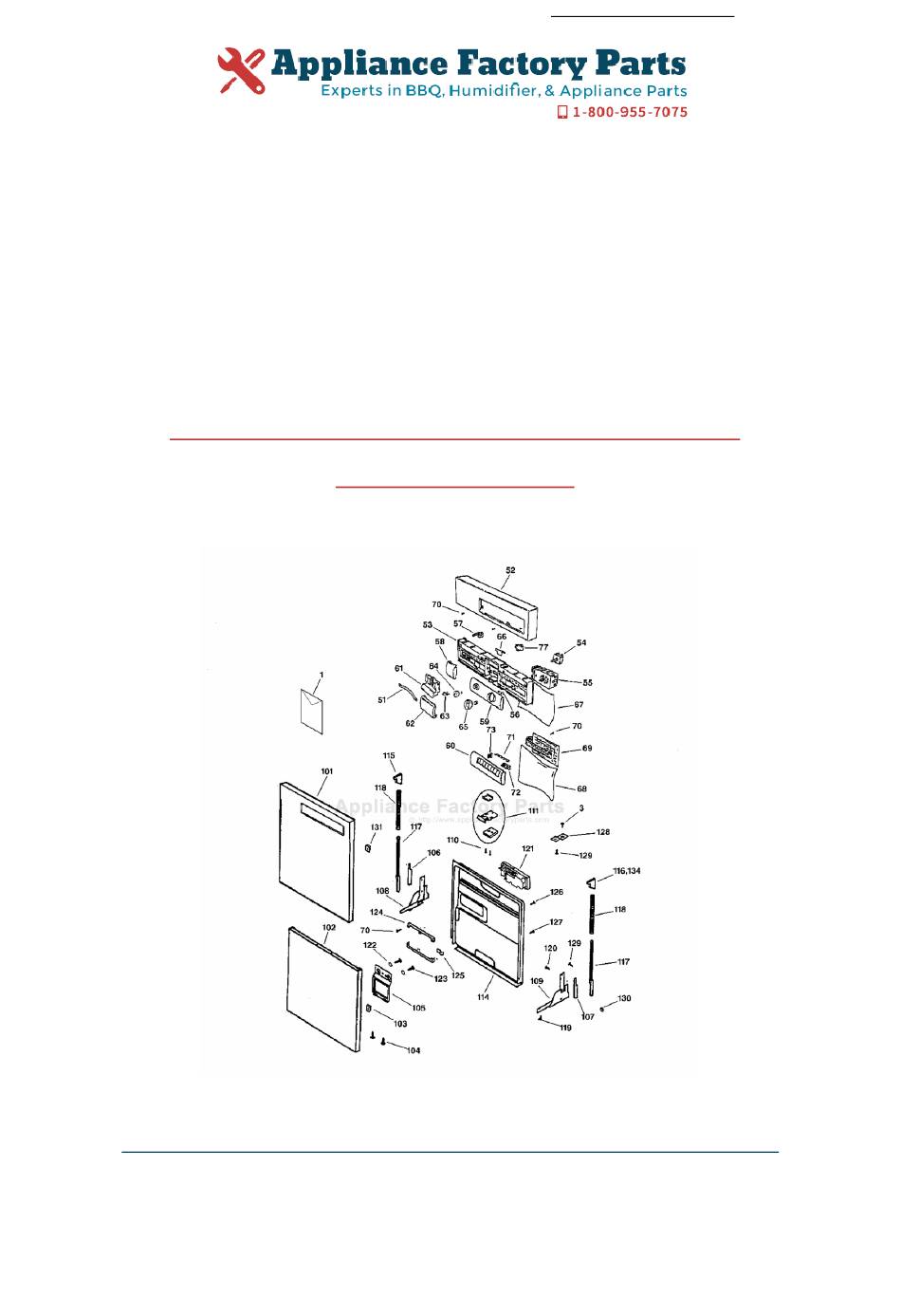

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. GE ZBD5700F00WW Owner's Manual Shop genuine replacement parts for GE ZBD5700F00WW Find Your GE Dishwasher Parts - Select From 6722 Models -------- Manual continues below --------...
-
Page 2: Built-In Dishwashers
® GE Monogram Installation Instructions with Optional Trim Kit Installation Instructions Built-In Dishwashers Models ZBD5600 ZBD5700 ZBD5900... -
Page 3: Table Of Contents
Guide for warranty information. If you have a question concerning the installa- CAUTION CAUTION tion of this product, call the GE Answer ® Center Consumer Information Service at • This dishwasher must be installed to allow 800.626.2000, 24 hours a day, 7 days a week. -
Page 4: Design Information
Design Information Stainless Steel Interior Dishwashers ZBD5600 WW, ZBD5700 WW Models White Dishwashers Available ZBD5600 BB, ZBD5700 BB Black Dishwashers ZBD5900 SS Stainless Steel Dishwasher These dishwashers are designed for versatility, adaptable to virtually any installation. These models have a full length trimless door without the traditional access panel. -
Page 5: Optional Trim Kits
Design Information Stainless Steel Interior Dishwashers • Install in standard 24” deep cabinets: Cabinet Cabinet Standard Depth Resting – The dishwasher door will be flush with the 24" Against Wall installation front face of adjacent cabinetry. • With a 3/4” thick custom door panel in in 24”... -
Page 6: Installation Information
Installation Information Stainless Steel Interior Dishwashers Remove the hardware accessory bag and Parts other parts from inside or taped to the Supplied outside of the dishwasher. Check contents against drawings to insure that all parts are included. 2 toekick slides 2 toekick support brackets 2 side trim pieces 2-piece toekick... -
Page 7: Installation Preparation
Installation Preparation Stainless Steel Interior Dishwasher Materials You 90° elbow (3/8" NPT external thread on one end and opposite end to fit hot water supply line) Will Need: Thread seal tape (not supplied) UL listed wire nuts (3) Electrical Cable or Power Cord 90°... -
Page 8: Prepare The Opening
Installation Preparation Stainless Steel Interior Dishwasher • The rough cabinet opening must be 24” Prepare min. deep, 23-5/8” min. to 24” max. wide. The opening height should be 34” min. This Wall Area and 35” max. Opening must be Free of Pipes or Wires •... -
Page 9: Power Supply
Installation Preparation Stainless Steel Interior Dishwashers Power FOR PERSONAL SAFETY: WARNING REMOVE HOUSE FUSE OR OPEN Supply Alternate CIRCUIT BREAKER BEFORE BEGINNING Receptacle INSTALLATION. Location DO NOT USE AN EXTENSION CORD OR 18" ADAPTER PLUG WITH THIS APPLIANCE. 1-1/2" Dia. Hole (Max.) FOLLOW NATIONAL ELECTRICAL Receptacle Location... -
Page 10: Prepare Drain Plumbing
Installation Preparation Stainless Steel Interior Dishwasher • Follow local codes and ordinances. Method 1 – Air Gap with Waste Tee or Disposer Prepare • Dishwasher drain hose must not exceed 10 Use this method when waste tee or disposer connection is less drain feet in length for proper drainage. -
Page 11: Installation
Installation Stainless Steel Interior Dishwasher • If you intend to install custom door panels, Install Custom refer to installation instructions provided in Door Panel this booklet. The panels should be in place before installing the dishwasher. Cut the shipping carton and use it as a pad Step 1 under the dishwasher. -
Page 12: Step 3 Install Water Inlet Fittings
Installation Stainless Steel Interior Dishwasher • Install the 90° elbow onto the water inlet. Step 3 Use thread sealing tape or pipe thread Install compound. • The 90° elbow should face the left or right Water Inlet side, depending on water line routing. Fittings •... -
Page 13: Step 5 Level The Dishwasher
Installation Stainless Steel Interior Dishwasher • Carefully upright the dishwasher, taking Step 5 care not to bend the leveling legs. Make Level the sure the leveling leg locking nuts are Dishwasher secure. • Check to be sure the dishwasher is level and at the cutout height. -
Page 14: Step 8 Install Drain Line
Installation Stainless Steel Interior Dishwasher • Follow all local codes and ordinances. Step 8 Method 1 – Air Gap with Waste Tee or Disposer Drain Line Preparation Install • The dishwasher is supplied with a 78” long Drain Line corrugated drain hose. •... -
Page 15: Step 10 Secure Dishwasher To Countertop Or Cabinetry
Installation Stainless Steel Interior Dishwasher To maintain position and alignment the Step 10 dishwasher must be secured to the countertop Secure or to adjacent cabinetry. If countertop is of stone or other hard Dishwasher material, secure the dishwasher to adjacent to Countertop cabinets. -
Page 16: Step 11 Install Toekick Assembly
Installation Stainless Steel Interior Dishwasher • Install toekick slides to toekick support Step 11 Front Toekick Panel brackets. Use slide stamped “L” on left and Install “R” on right side. Toekick • Align front and inner toekicks, matching screw holes. Assembly •... -
Page 17: Zpf25 Door Panel Kit
ZPF25 Custom Door Panel Kit 1/4" Thick Custom Door Panel Note: It is best that 2 people perform this installation. ZPF25B, Black trim ZPF25W, White trim The ZPF25 trim kit provides support for 1/4” thick custom door panel. Tools and Materials required •... - Page 18 ZPF25 Custom Door Panel Kit 1/4" Thick Custom Door Panel • Open the door fully. Step 2 Remove Caution: One person should hold the door while the other backs out screws to prevent Existing the metal door from falling. Metal Door •...
- Page 19 ZPF25 Custom Door Panel Kit 1/4" Thick Custom Door Panel Step 5 • Locate the “C” clips in the parts package. Place one clip, flat side up, over each of the Install screw holes, 3 on each side of the door. Assembled Note: One person should hold the door while the other installs Door onto...
-
Page 20: 1/4" Thick Custom Door Panel
ZPF75 Custom Panel Kit 3/4" Thick Custom Door Panel ZPF75B, Black Note: It is best that 2 people perform this installation. ZPF75W, White The ZPF75 provides for the installation of 1/2” to 3/4” thick custom door panel. Tools and Materials required •... - Page 21 ZPF75 Custom Panel Kit 3/4" Thick Custom Door Panel • Open the door fully. Step 2 Remove Caution: One person should hold the door while the other 2 “O” Rings Existing backs out screws to prevent the metal door from falling. Metal Door •...
- Page 22 ZPF75 Custom Panel Kit 3/4" Thick Custom Door Panel Note: One person should hold the door while the other installs Step 5 2 “O” Rings screws to prevent the door assembly from falling. Install Foam • Check to be sure that foam inserts are in Assembled Insert place.
- Page 23 ZPF75 Custom Panel Kit 3/4" Thick Custom Door Panel • Slip toekick slides into guides by pulling out Step 7 the metal tabs. Install • Hold custom panel against toekick slides and mark screw hole locations. Custom • Remove toekick and drill 1/8" pilot holes. Toekick •...
- Page 24 Notes Stainless Steel Interior Dishwasher...
- Page 25 To obtain specific information concerning any ® Monogram product or service, call GE Answer Center consumer information service at 800.626.2000—any time, day or night. For Monogram local ser vice in your area, call 1-800-444-1845.
