GE Monogram ZBD5700DBB Dimension Manual

Monogram. ™
ZBD5700DBB—GE Monogram Dishwasher with Stainless Steel Interior

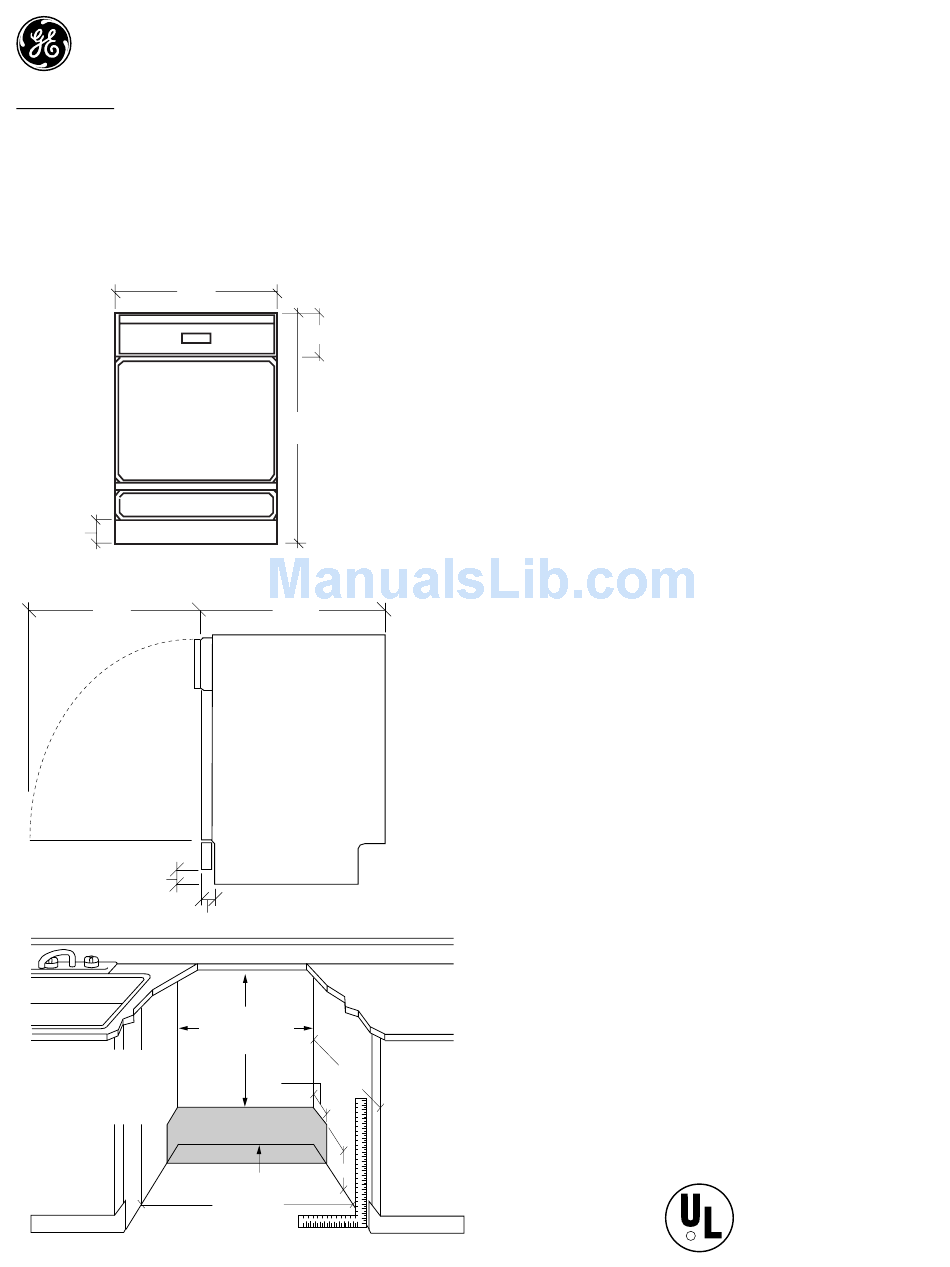

Dimensions and Specifications (in inches)
23-5/8"
2-7/8" Min.
4" Max.
25 1/4"
From
Cabinet Face
Toekick
3 1/4"
34" Min.
35" Max.
Underside of
Countertop
to Floor
Plumbing and Electric Service
Must Enter Inside This Area
Revised 12/98
5"
34" Min.
35" Max.
23 1/2"
This Wall Area
Must be Free of
Pipes or Wires
24"
Min.
1-3/4"
6"
23-5/8" Min.
24" Max.
Design Information: This dishwasher is supplied as
a Black model.
A toekick is supplied and may be covered with a
custom toekick to match kitchen decor.
Side trim is not required. Side filler strips are supplied
to fill a 24" wide opening.
Additional Specifications: A 120 Volt, 60 Hz power
supply is required. An individual properly grounded
branch circuit protected by a 15 or 20 amp circuit
breaker or time delay fuse is recommended. Install a
3-prong electrical receptacle at least 6" above the
floor and within 18" of the right or left adjacent
cabinet wall. Wiring must enter the cutout in shaded
area shown. A double, side-by-side installation
requires two separate circuits.
The hot water line must enter the cutout in the shaded
area from the right, left, rear or through the floor. The
water line should be 3/8" O.D. copper or 1/2" O.D.
plastic. Installation of an easily accessible hand
shut-off valve is strongly recommended.
The dishwasher should be placed no more than 10 feet
from the sink for proper drainage.
If the dishwasher is to be located in or near a corner
of base cabinets, allow 2" min. clearance from the
corner to prevent interference with adjacent door
handles.
Optional Trim Kits:
• ZPF25W, white or ZPF25B, black custom panel
kit–Provides for the installation of a 1/4"
thick custom door panel.
• ZPF75W, white or ZPF75B, black custom panel
kit–Provides for a trimless appearance using a 3/4"
thick custom door panel.
For answers to your Monogram,
GE Profile Performance Series,
GE Profile or GE appliance questions, call
™
GE Answer Center
Listed by
Underwriters
Laboratories
R
®
™
® service, 800.626.2000.
