KM6129-2-2-2ZGCWP
A
- backrest 1
KM6129-2-2-2ZGCWP
B
- console backrest
KM6129-2-2-2ZGCWP
C
- backrest 2
KM6129-2-2-2ZGCWP
D
- back LAF wing
KM6129-2-2-2ZGCWP
E
- back RAF wing
KM6129-2-2-2ZGCWP
F
- cushion
317227

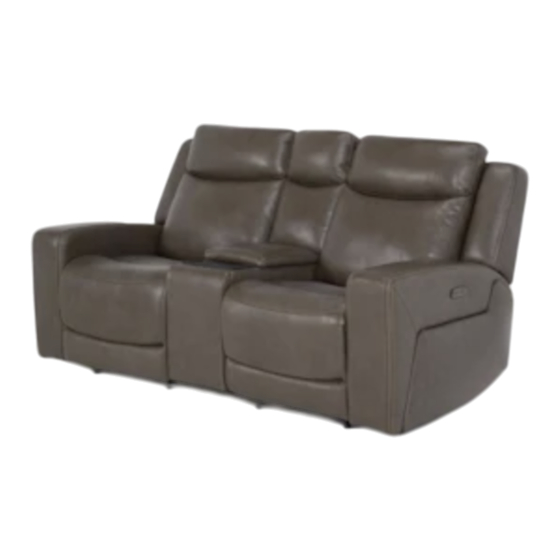

CARSON LEATHER POWER ZERO G
RECLINING CONSOLE LOVESEAT W/
PWR HDRST & USB
1
B
A
Fix the backrest by metal lock
3
Connect the power plugs of each
unit
Press the button for opening,
pausing or closing the power hidden
cup holder.
2
C
F
D
Fix the back wing by metal lock
4
power
Connect the power cable for both
sides when try to power on
E
