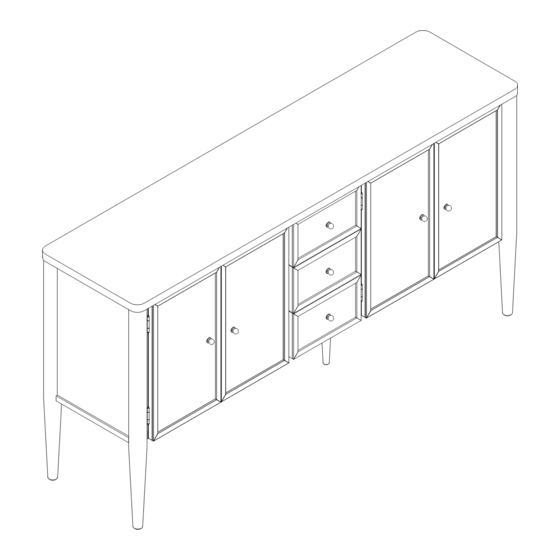

- Page 1 ASSEMBLY INSTRUCTIONS L I V I N G S P CES AUSTEN - BUFFET ITEM NO : D2101-243 SKU:318065 15 min...
-
Page 2: Cleaning Instructions
IMAGE DESCRIPTION QTY SKU# PART 318065-A-B(BLACK) Cabinet Cabinet Leg 318065-B-B(BLACK) 318065-C-B(BLACK) Support Leg Hardware List of Buffet PART SKU# IMAGE DESCRIPTION 318065-1(8) Bolts M4*Ø5/16*30mm 318065-2(1) Allen key Anti tipping kits 318065-3(1) Note: Screwdriver will be prepared by yourshelf. THE HARDWARE IS LOCATED IN THE PACKING ITEM NOTE: MUST TIGHTEN SCREWS PERIODIACLLY. -
Page 3: Detail View
DETAIL VIEW STEP 1: * Open the cabinet door and take out the adjustable shelf. OPEN THE CABINET DOOR TAKE OUT THE TWO ADJUSTABLE SHELF... - Page 4 STEP 2 Assembly of the leg frames. * Assemble the Right Leg (B) to cabinet top (A) by bolt (1). * Secrew the Support Leg(C) to the Bottom of the cabinet bySwiveling 1= 8Pcs STEP 3: Assembly of the adjustable shelfs * Assemble the movable shelf as the right instruction.
- Page 5 Anti-tipping kit installation. STEP 4 Anti-tipping kit is located at backside Adjust leveler =1 pc That's it ! You've finished assembling your item. Thank you!
