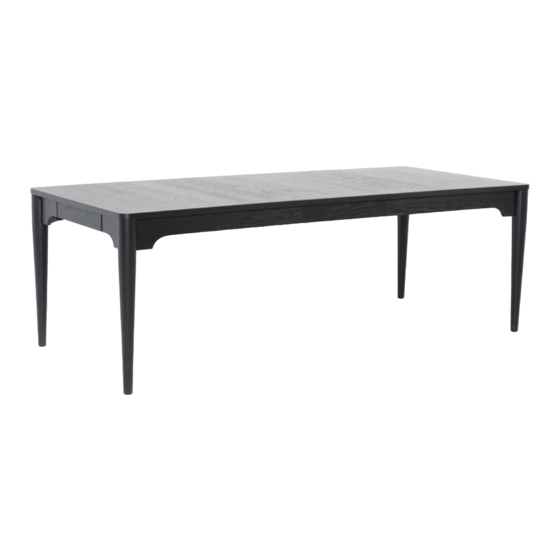

- Page 1 ASSEMBLY INSTRUCTIONS L I V I N G S P CES AUSTEN - 90 INCH EXTENSION DINING TABLE D2101-200 318060 ITEM NO : SKU: 15 min...
- Page 2 IMAGE DESCRIPTION QTY SKU# PART Table Top 318060-A-B(BLACK) Table Leaf 318060-B-B(BLACK) Table Leg 318060-C-B(BLACK) Hardware List of 90 Inch Extension Dining Table PART SKU# IMAGE DESCRIPTION 318060-1(8) Bolts M4*Ø5/16*70mm 318060-2(1) Allen key M4 Note: Screwdriver will be prepared by yourshelf. THE HARDWARE IS LOCATED IN THE PACKING ITEM NOTE: MUST TIGHTEN SCREWS PERIODIACLLY.
- Page 3 DETAIL VIEW Assembly of the Legs STEP 1: * Assemble the table leg to table top (A) by bolt (1). 1= 8pcs...
- Page 4 STEP 2 Assembly of the Leaf * Open the latch at the bottom of the panel pull open the two side panels put the leaf panei in close the panel and lock the bottom latch OPEN That's it ! You've finished assembling your item.
