TMG -MS1624 Product Manual

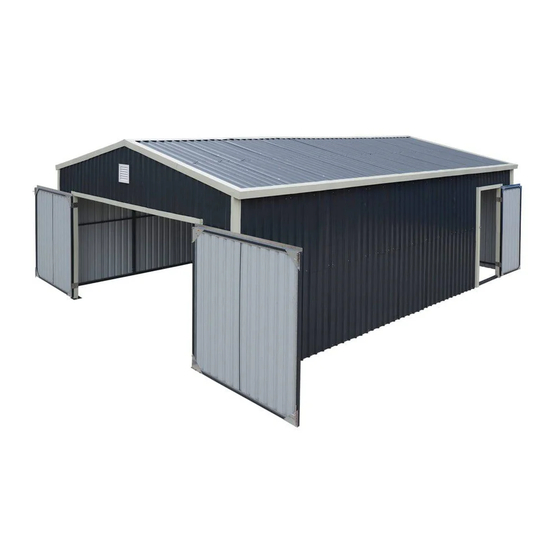

16' x 24' garage metal shed with 12' swing door
Hide thumbs

Advertisement

Table of Contents

www.tmgindustrial.com
0/38
TOLL FREE:1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-MS1624 and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-MS1624

Summary of Contents for TMG TMG-MS1624

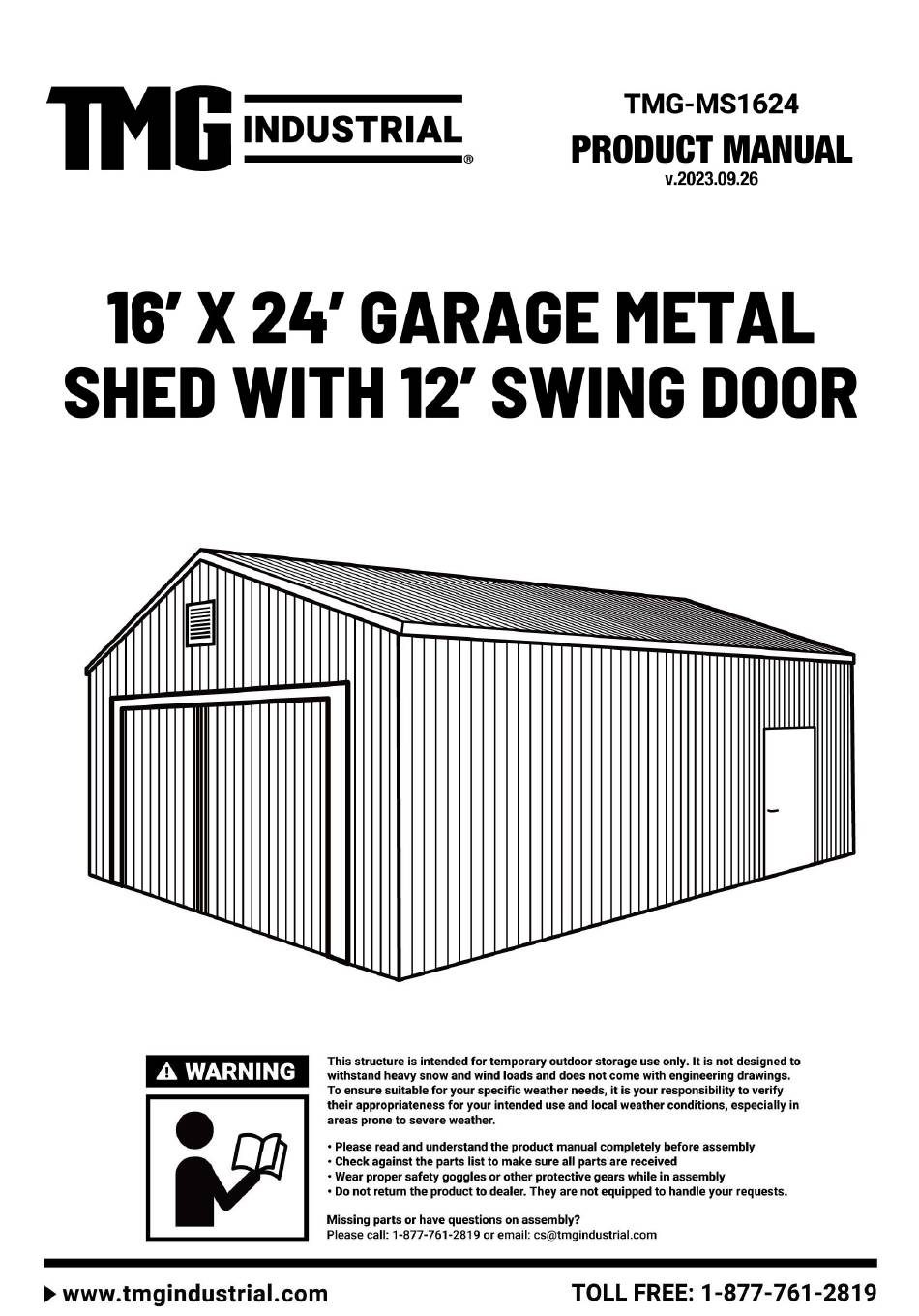

  • Page 1 www.tmgindustrial.com 0/38 TOLL FREE:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS: Overall assembled size : W4.88 x L7.5x H3.05 (m) / 16 x 24.6 x 10 (ft)  Front door : W3.6 x H2.0 (m) / 11.8 x 6.56 (ft)  Side door : W0.9 x H2.0 (m) / 2.95 x 5.56 (ft) ...
  • Page 3 The layout of foundation(two).  Note: the ground anchor is installed on the cement block. Depth of cement Unit: mm (ft) www.tmgindustrial.com 2/38 TOLL FREE:1-877-761-2819...
  • Page 4 Baseplate layout.  PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is very important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to: Safety helmets, protective eyewear, and clothing. ...
  • Page 5 FRAME STRUCTURE DIAGRAM www.tmgindustrial.com 4/38 TOLL FREE:1-877-761-2819...
  • Page 6 TMG-MS1624 Part List PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube 483mm Middle rafter tube 1895mm Shoulder tube 644mm Sidewall tube 2033mm Long casing 200mm Foot tube 1890mm (front and rear) Foot tube 1890mm (side door) Foot tube 1890mm (middle)
  • Page 7 Cross tube 1600mm (front door middle) Cross tube 1600mm (rear both sides) Cross tube 1600mm (rear middle) Support tube 805mm (front and rear) Vertical tube 1982mm (front and rear) Vertical tube 1965mm (side door) Cross tube 1448mm (side door) Door frame column tube 1956mm Door horizontal tube 1700mm...
  • Page 8 Metal sheet 17R1 870x927mm (R1) Metal sheet 17L2 870x728mm (L2) Metal sheet 17R2 870x728mm (R2) Metal sheet 680x2060mm (front door both sides) Metal sheet 870x1880mm (front door) Metal sheet 870x2100mm (rear) Edge protector 1200mm (top) Edge protector 1200mm (both sides) Edge protector 1350mm (front and rear)
  • Page 9 Edge protector 1100mm (side door R) Edge protector 1200mm (front) Edge protector 1200mm (front) Edge protector 1200mm (front) Edge protector 898mm (side) Edge protector 1890mm (front and side share) Edge protector 1688mm (front door) Edge protector 808mm (side door) Edge protector 1890mm (side door) Baffle...
  • Page 10 Self tapping screw #12x25mm Blind rivet φ5x10mm Blind rivet φ3.2x10mm Loose-leaf 80mm Door lock handle φ12x6″ Ground lock φ12x12″ Lock Shutters 300x300 Waterproof silicon sealant Teroson statu Inside hexagonal wrench Sleeve Drill φ3.5 Drill φ5.2 www.tmgindustrial.com www.tmgindustrial.com 9/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 11 STEP 1 : FOOT TUBE AND BASE PLATE INSTALLATION PLATE INSTALLATION. PART PART PART www.tmgindustrial.com www.tmgindustrial.com 10/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...

  • Page 12: Installation

    STEP 2 : FRONT AND REAR TRUSSES INSTALLATION INSTALLATION. THE FRONT TRUSS INSTALLATION. PART PART PART www.tmgindustrial.com www.tmgindustrial.com 11/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 13 THE REAR TRUSS INSTALLATION. PART PART PART www.tmgindustrial.com www.tmgindustrial.com 12/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 14 STEP 3 : MIDDLE TRUSSES INSTALLATION INSTALLATION. PART PART PART 12x4 34x4 www.tmgindustrial.com www.tmgindustrial.com 13/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 15 STEP 4 : TRUSS FIXED AND CROSS TUBE INSTALLATIO OSS TUBE INSTALLATION. PART www.tmgindustrial.com www.tmgindustrial.com 14/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 16 STEP 5 : TOP CROSS BAR AND SIDE CROSS BAR INSTALLATI CROSS BAR INSTALLATION. PART PART PART www.tmgindustrial.com www.tmgindustrial.com 15/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 17 STEP 6 : FRONT DOOR INSTALLATION. PART www.tmgindustrial.com www.tmgindustrial.com 16/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 18 STEP 7 : REAR WALL INSTALLATION. PART www.tmgindustrial.com www.tmgindustrial.com 17/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 19 STEP 8 : INSTALL THE COLOR IRON TILE ON TILE. PART www.tmgindustrial.com www.tmgindustrial.com 18/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 20 AFTER SETTING THE POSITION, YOU CAN COMP SITION, YOU CAN COMPLETE THE REMAINING COLORED STEEL TILES OLORED STEEL TILES. PART www.tmgindustrial.com www.tmgindustrial.com 19/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 21 STEP 9 : INSTALL THE COLOR STEEL TILE OF THE FRON EEL TILE OF THE FRONT DOOR. PART www.tmgindustrial.com www.tmgindustrial.com 20/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 22 AFTER SETTING THE POSITION, YOU CAN COMP SITION, YOU CAN COMPLETE THE REMAINING COLORED STEEL TILES OLORED STEEL TILES. PART 17L1 17R1 17L2 17R2 www.tmgindustrial.com www.tmgindustrial.com 21/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 23 STEP 10 : INSTALL REAR GEAR COLOR STEEL TILE LOR STEEL TILE. PART www.tmgindustrial.com www.tmgindustrial.com 22/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 24 AFTER SETTING THE POSITION, YOU CAN COMP SITION, YOU CAN COMPLETE THE REMAINING COLORED STEEL TILES OLORED STEEL TILES. PART 17L1 17R1 17L2 17R2 www.tmgindustrial.com www.tmgindustrial.com 23/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 25 STEP 11 : INSTALL SIDE COLOR STEEL TILE R STEEL TILE. PART www.tmgindustrial.com www.tmgindustrial.com 24/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 26 STEP 12 : INSTALL SIDE COLOR STEEL TILE. TEEL TILE. PART www.tmgindustrial.com www.tmgindustrial.com 25/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 27 STEP 13 : INSTALL THE EDGING. PART PART PART www.tmgindustrial.com www.tmgindustrial.com 26/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 28 PART PART 23L1 www.tmgindustrial.com www.tmgindustrial.com 27/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...

  • Page 29: Installation

    STEP 14-1 : FRONT DOOR ASSEMBLY INSTALLATION INSTALLATION. Forwar PART 16x2 www.tmgindustrial.com www.tmgindustrial.com 28/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 30 STEP 14-2 : FRONT DOOR ASSEMBLY INSTALLATION INSTALLATION. PART www.tmgindustrial.com www.tmgindustrial.com 29/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 31 STEP 14-3 : FRONT DOOR ASSEMBLY INSTALLATION INSTALLATION. PART 46x2 www.tmgindustrial.com www.tmgindustrial.com 30/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 32 STEP 15 : INSTALL FRONT DOOR HINGES AND LATCHES. INGES AND LATCHES. (WHAT YOU SEE IS THE INSIDE INSIDE) PART 20x2 www.tmgindustrial.com www.tmgindustrial.com 31/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 33 STEP 16-1 : SIDE DOOR ASSEMBLY INSTALLATION NSTALLATION. PART www.tmgindustrial.com www.tmgindustrial.com 32/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 34 STEP 16-2 : SIDE DOOR ASSEMBLY INSTALLATION. NSTALLATION. PART www.tmgindustrial.com www.tmgindustrial.com 33/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 35 STEP 16-3 : SIDE DOOR ASSEMBLY INSTALLATION. NSTALLATION. PART www.tmgindustrial.com www.tmgindustrial.com 34/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 36 STEP 17 : SIDE FRONT DOOR HINGES. PART www.tmgindustrial.com www.tmgindustrial.com 35/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 37 STEP 18 : INSTALL FRONT AND REAR DOORS. REAR DOORS. PART 10x6 www.tmgindustrial.com www.tmgindustrial.com 36/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 38 STEP 19 : INSTALL REAR DOORS. PART www.tmgindustrial.com www.tmgindustrial.com 37/38 TOLL FREE:1 TOLL FREE:1-877-761-2819...

  • Page 39: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the garage periodically to make sure all components are still firmly secured and the whole garage is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
